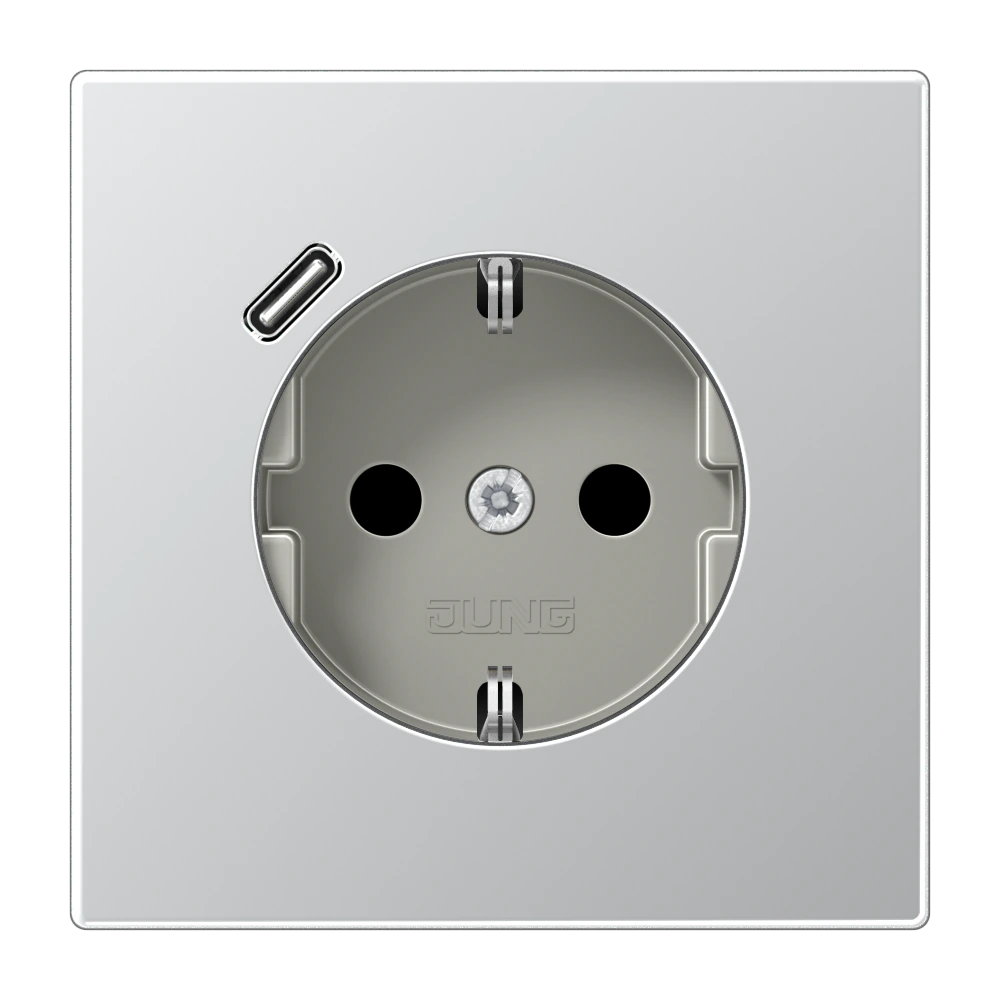

LS 990·AL1520-18C

SCHUKO® socket with USB charger

Name: SCHUKO® socket with USB charger
Brand: JUNG
SKU: AL1520-18C
Price: 141500 KZT
Availability: BackOrder

Retail Price

141,500 ₸

Made to order from Germany

Characteristics

Article number: AL 1520-18 C
EAN/GTIN: 4011377213999
Colour: aluminium
Material: aluminium AlMg1
Type: 1 x type C
Width: 70 mm
Height: 70 mm

Description & specifications

SCHUKO® socket with USB charger with enhanced contact protection / shutter (Safety Plus) with 1 USB port type C with quick charge function (JUNG Quick Charge®) with screwless terminals for rigid and untreated flexible wires up to 2.5 mm2 Installation in flush box with dimensions according to DIN 49073

Technical data

Rated voltage: AC null ... null V ~
Mains frequency: 50/60 Hz
Rated current: 16 A
Output voltage USB: DC 9 V / DC 5 V
Output current USB: 2 A / 3 A
Stand-by power: ≤ 25 mW
Ambient temperature: +5 ... +35 °C
Storage/transport temperature: −20 ... +70 °C
Connection mode: screwless terminals
single wire: 1.5 ... 2.5 mm²
stranded without ferrule: 1.5 ... 2.5 mm² Metal versions
Colour: aluminium
Material: aluminium AlMg1 Individual colour printing possible Individual laser engraving possible
