A 550·A1520-18C

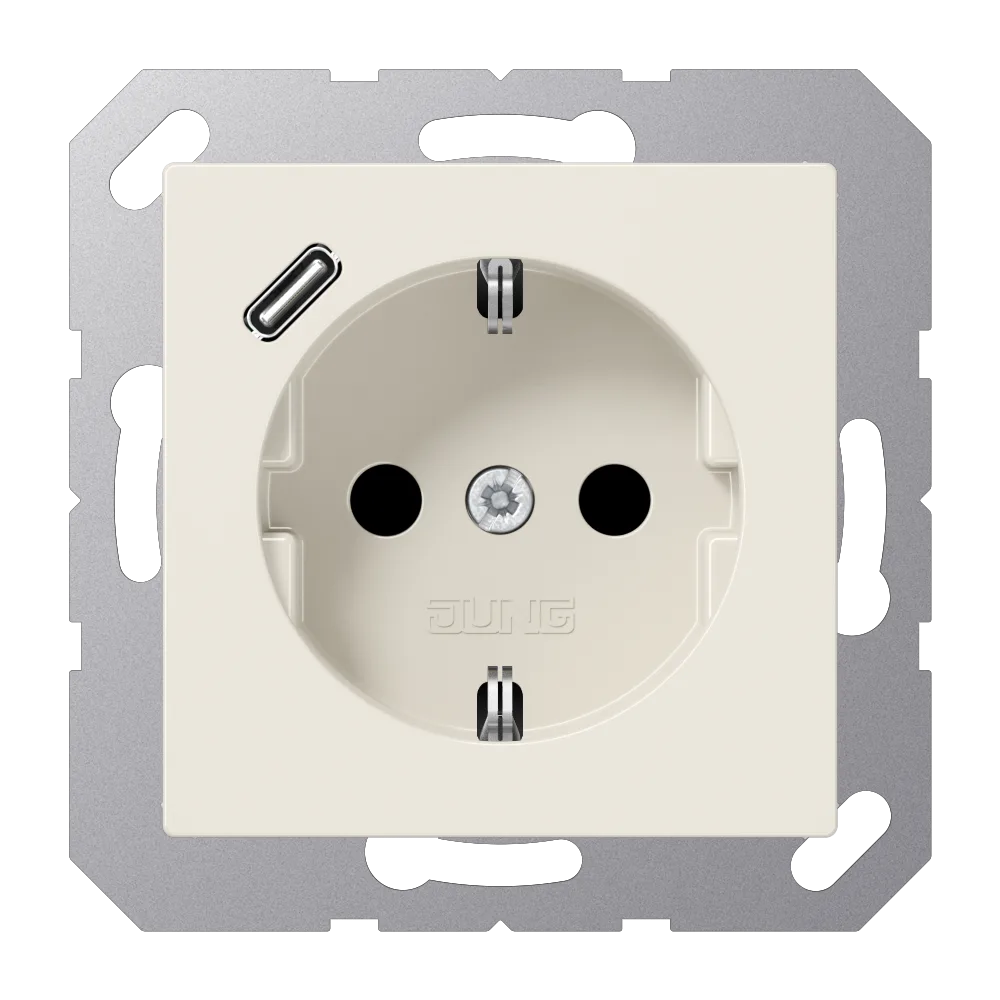

SCHUKO® socket with USB charger

Name: SCHUKO® socket with USB charger
Brand: JUNG
SKU: A1520-18C
Price: 98325 KZT
Availability: BackOrder

Retail Price

98,325 ₸

Made to order from Germany

Characteristics

Article number: A 1520-18 C
EAN/GTIN: 4011377184237
Colour: ivory
Material: thermoplastic
Type: 1 x type C
Width: 55 mm
Height: 55 mm

Description & specifications

SCHUKO® socket with USB charger with enhanced contact protection / shutter (Safety Plus) with 1 USB port type C with quick charge function (JUNG Quick Charge®) with screwless terminals for rigid and untreated flexible wires up to 2.5 mm2 Installation in flush box with dimensions according to DIN 49073

Technical data

Rated voltage: AC 220 ... 250 V ~
Mains frequency: 50/60 Hz
Rated current: 16 A
Output voltage USB: DC 9 V / DC 5 V
Output current USB: 2 A / 3 A
Stand-by power: ≤ 25 mW
Ambient temperature: +5 ... +35 °C
Storage/transport temperature: −20 ... +70 °C
Connection mode: screwless terminals
single wire: 1.5 ... 2.5 mm²
stranded without ferrule: 1.5 ... 2.5 mm² Thermoplastic (breakproof) high-gloss
Colour: ivory
Material: thermoplastic Individual colour printing possible Individual laser engraving possible
