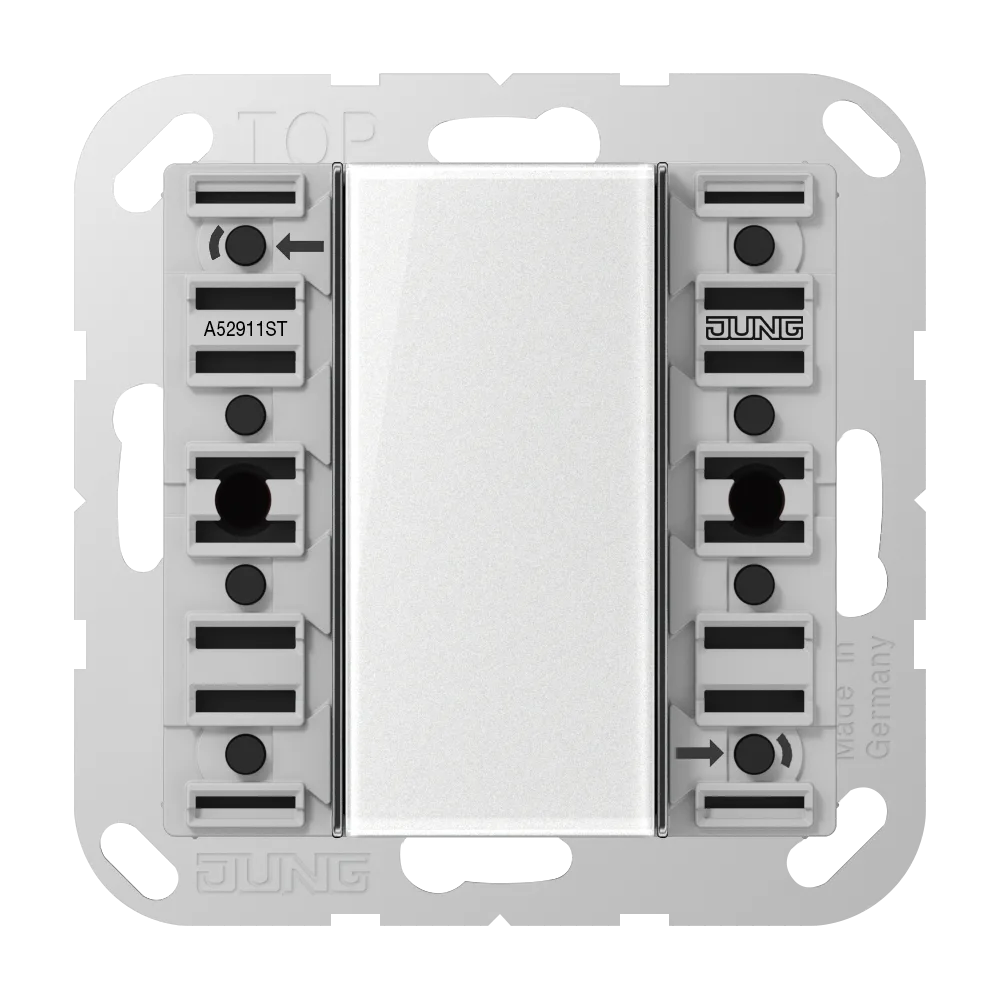

Universal push-button module 1-gang

KNX universal push-button module 1-gang

Intended use

Product characteristics

• Operation of loads, e.g. light on/off, dimming, blinds up/down, brightness values, temperatures, calling up and saving light scenes, etc.
• Installation in flush box with dimensions according to DIN 49073
• KNX medium: TP 256
• Push-button functions switching, dimming, controlling blinds, value transmitter, calling up light scenes etc.
• One or two functions per button
• To be completed with cover kit
• Inscription field can be illuminated
• One status LED per button, red, green or blue, adjustable
• One operation LED as orientation light and to indicate the programming status – red, green or blue adjustable
• Brightness of status LEDs, operation LED and inscription field adjustable; switchable while in operation, e.g. during the night
• Measurement of room temperature
• Extension unit for room temperature controller
• Disabling function: Disabling or change function mode of single or all button functions
• Alarm function, optional acknowledge by pressing any button
• Energy saving mode
• Integrated bus coupling unit
• Connection for a push-button extension module, 1-4 gang
• Including transparent cover kit for operation on construction site without design covers
• KNX Data Secure compatible with ETS 5.7.7 or ETS 6.3.0 or higher
• Can be updated with the ETS Service App

A 50 NA MO, A 50 NA WWM, A 50 NA SWM, A 50 NA ANM
