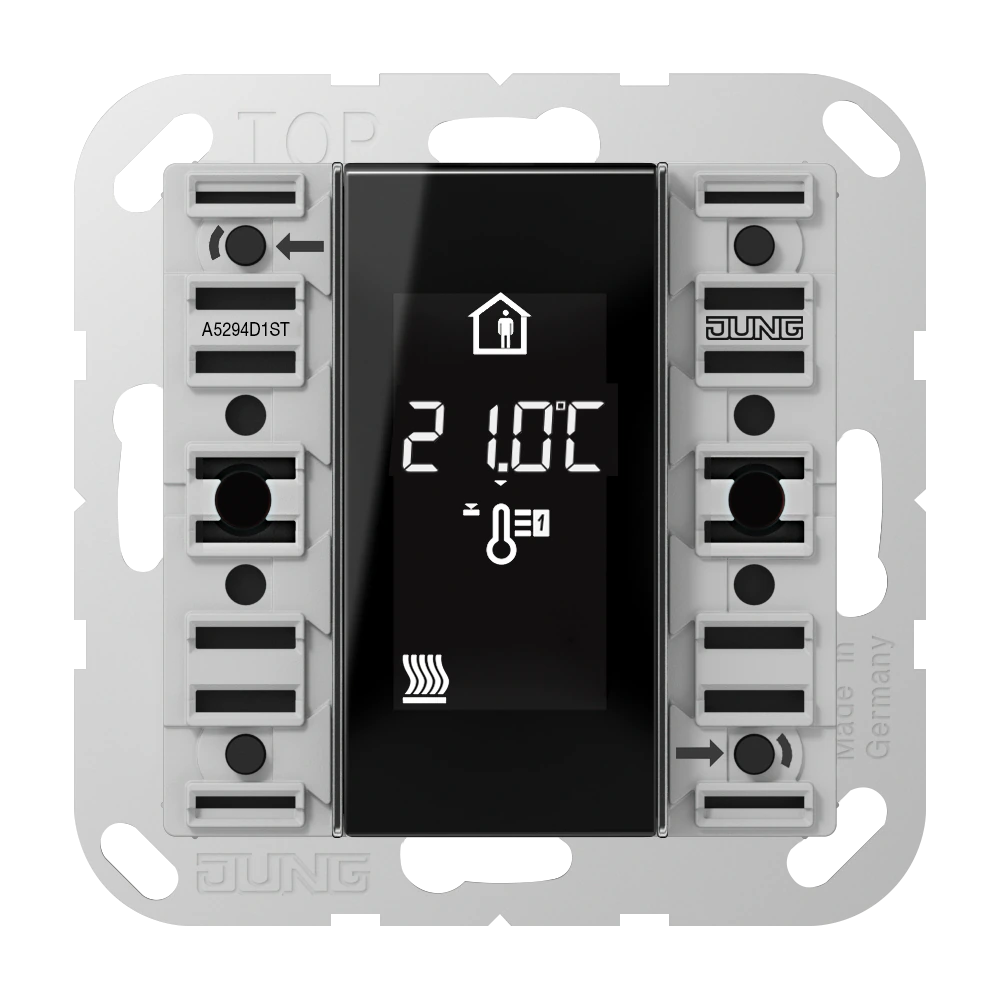

Room controller display module 4-gang

KNX room controller display module 4-gang

Intended use

Product characteristics All buttons can be assigned with push-button sensor functions or functions for controller

• Operation of loads, e.g. light on/off, dimming, blinds up/down, brightness values, temperatures, calling up and saving light scenes, etc.
• Measurement and feedback control of the room temperature
• Installation in flush box with dimensions according to DIN 49073 operation.
• KNX medium: TP 256
• Backlit LC display
• One or two functions per button
• To be completed with cover kit
• Eight status LEDs – red, green or blue
• Brightness of status LEDs and LCD adjustable
• Integrated bus coupling unit
• Connection of push-button extension module
• Integrated room temperature sensor
• Room temperature control with setpoint specification
• Two internal independent controllers for two independent areas – in connection with extension modules
• Display of room or set temperature (°C or °F)
• Display of outdoor temperature – with external sensor, e.g. weather station
• Display of time, in conjunction with KNX time encoder (in menu level)
• Button function or rocker function
• Disabling function: Disabling or change function mode of single or all button functions
• Alarm function, optional acknowledge by pressing any button
• KNX Data Secure compatible with ETS 5.7.7 or ETS 6.3.0 or higher
• Can be updated with the ETS Service App
