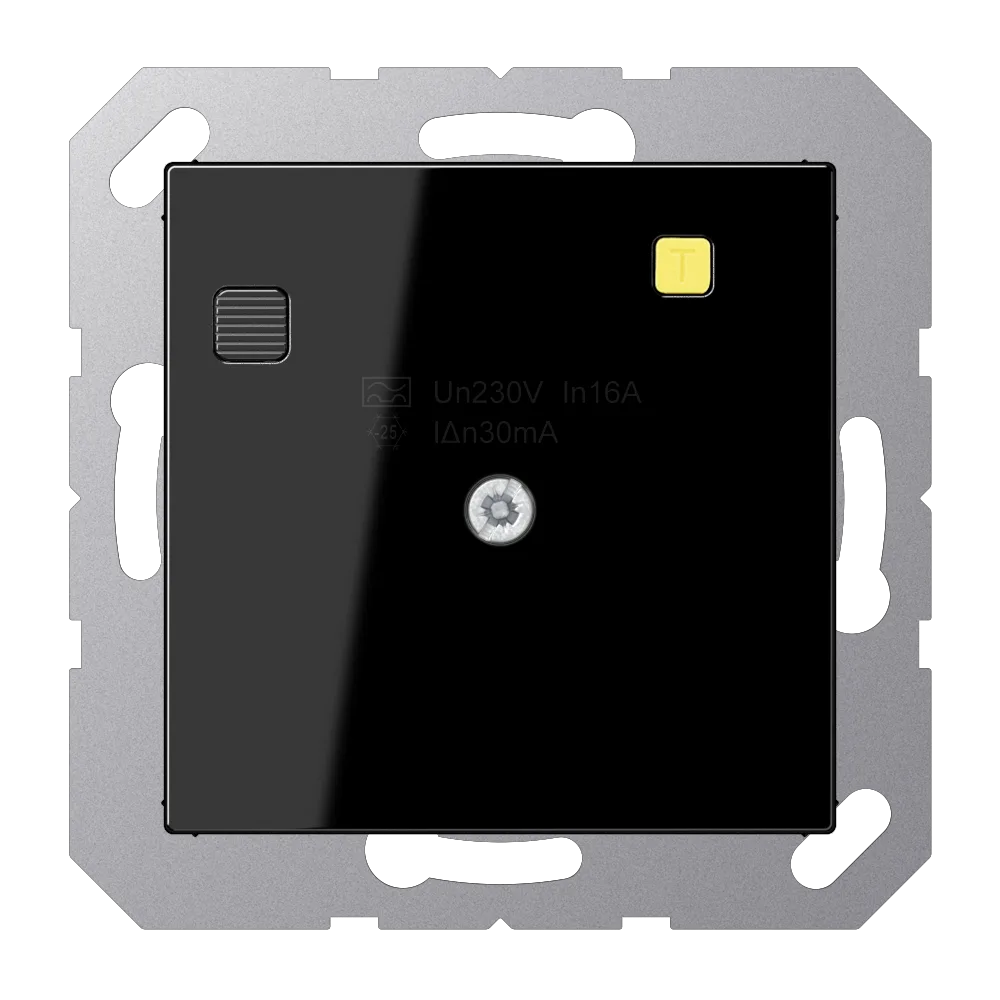

RCD (residual current device) 30 mA
Retail Price
292,295 ₸
Made to order from Germany
Characteristics
- Article number
- A 5530 FIB SW
- EAN/GTIN
- 4011377148826
- Colour
- black
- Material
- thermoplastic
- Width
- 55 mm
- Height
- 55 mm
Description & specifications
RCD (residual current device) 16 A / 250 V ~ according to DIN EN 61008-1 (VDE 0664-10) and DIN EN 61008-2-1 (VDE 0664-11)
with screwless terminals for rigid wires up to 2.5 mm2 not suitable for installation in surface caps suitable for cables with 2 or 3 conductors Installation in a 60 mm wall box (deep box recommended). Stationary protective device with voltage-independent function. The sockets connected to the output terminals are protected in accordance with DIN VDE 0100-410. However, the electrical installation up to the RCD is not protected!
Technical data
- Rated voltage
- AC 230 V ~
- Mains frequency
- 50/60 Hz
- Rated current
- 16 A
- Rated residual current
- 30 mA
- Ambient temperature
- −25 ... +40 °C Thermoplastic (breakproof) high-gloss
- Colour
- black
- Material
- thermoplastic
Other Colors
2
Logistics
Single Item
- Packaging unit
- 1 pc.
- Weight
- 161 G
- Length
- 96 MM
- Height
- 90 MM
- Width
- 75 MM
Carton
- Packaging unit
- 1 pc.
- Weight
- 161 G
- Length
- 95 MM
- Height
- 90 MM
- Width
- 75 MM
