Room temperature controller
Retail Price
477,660 ₸
Made to order from Germany
Characteristics
- Article number
- A 2178 CH
- EAN/GTIN
- 4011377097292
- Colour
- champagne
- Material
- thermoplastic lacquered
- Width
- 55 mm
- Height
- 55 mm
Description & specifications

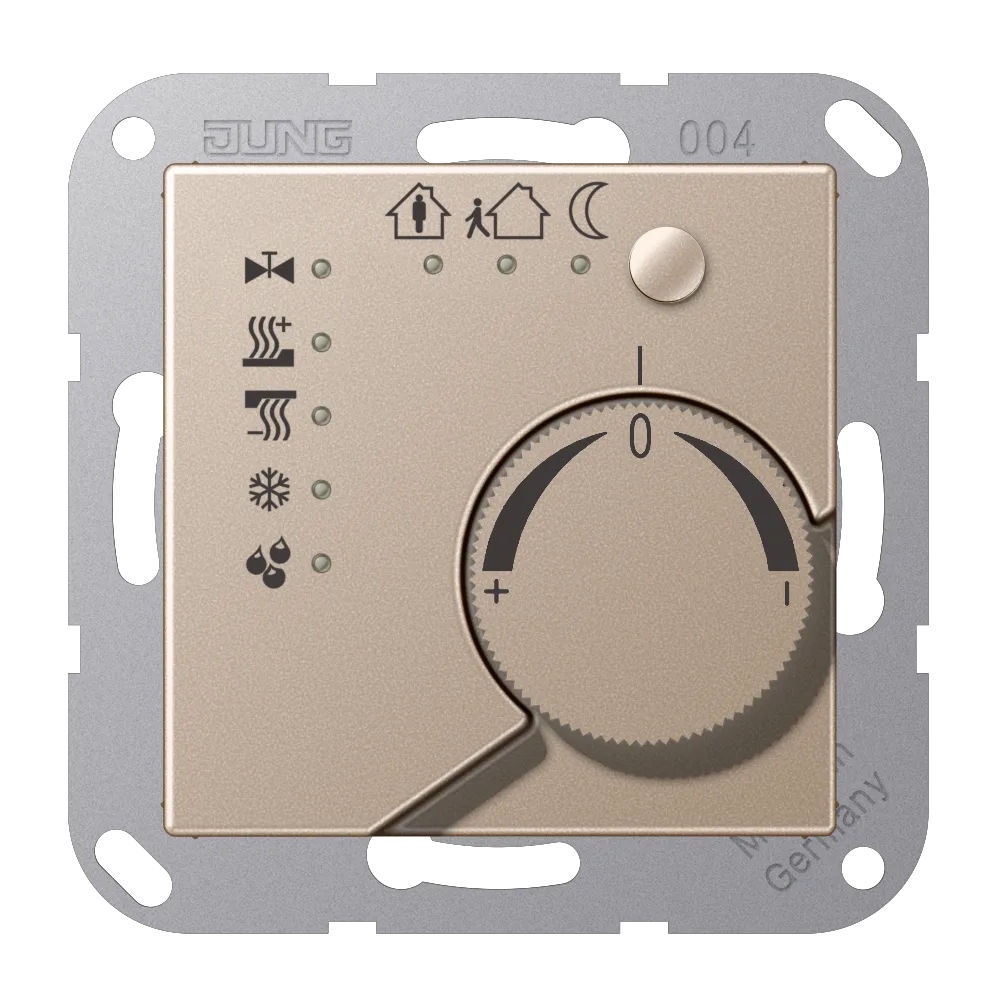

KNX room temperature controller with rotary knob for setpoint adjustment Only with the ETS 3.0d version or later versions the full functionality will be available.
Intended use
Product characteristics
- Single-room temperature control in KNX installations
- Installation in flush box with dimensions according to DIN 49073
- Integrated bus coupling unit
- Measurement of room temperature and comparison with setpoint temperature
- Setpoint specification by selection of the operating mode
- Operating modes: comfort, standby, night operation, frost/heat protection
- Heating and cooling mode
- Heating and cooling with basic and additional step
- Setpoint adjustment
- Presence push-button
- Status LEDs
Technical data
- KNX medium
- TP 256
- Rated voltage KNX
- DC 21 ... 32 V SELV
- Current consumption KNX
- max. 10 mA
- Connection, KNX
- connection terminal
- Ambient temperature
- −5 ... +45 °C
- Storage/transport temperature
- −25 ... +70 °C Thermoplastic (breakproof) lacquered
- Colour
- champagne
- Material
- thermoplastic lacquered
Compatible Products
7Frames, rockers, sockets and covers that fit this article. Filter by colour, range or gang count.
Logistics
Single Item
- Packaging unit
- 1 pc.
- Weight
- 0.068 KG
- Length
- 70 MM
- Height
- 44 MM
- Width
- 68 MM
Carton
- Packaging unit
- 1 pc.
- Weight
- 0.102 KG
- Length
- 85 MM
- Height
- 73 MM
- Width
- 85 MM
Outer Carton
- Packaging unit
- 10 pc.
- Weight
- 1.154 KG
- Length
- 362 MM
- Height
- 88 MM
- Width
- 180 MM
