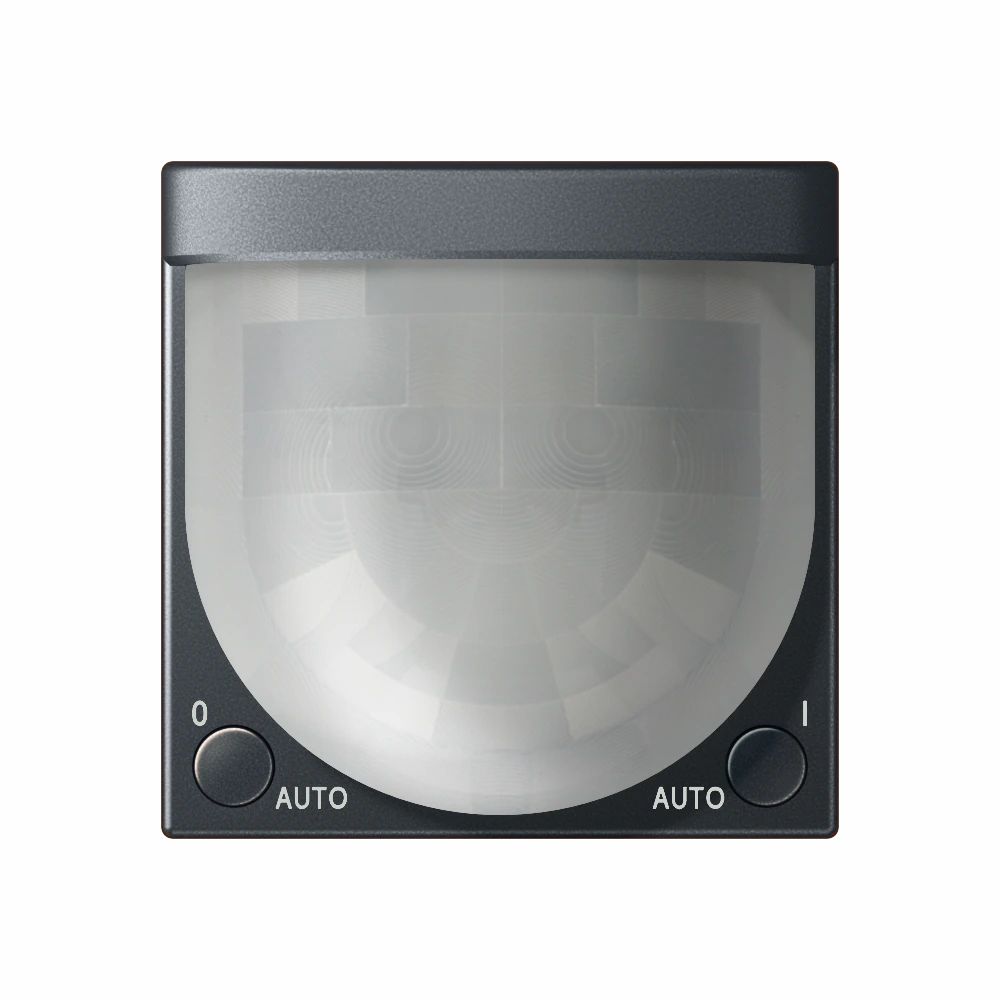

Standard automatic switch 2.2 m

KNX automatic switch 2.2 m Standard Degree of protection IP44 is ensured with sealing kit ref.-no. AS A 50 DS and "IP44 frame" of the respective design range. IP44 suitable only for interiors

Intended use

Product characteristics

• Requirement-oriented control of lighting and other electrical loads
• Automatic switching of lighting depending on the thermal movement and ambient brightness
• 2 PIR sensors
• Detection range 180°
• Integrated brightness sensor
• Switch-off brightness can be set
• Output functions: Switching, staircase lighting function, switching with forced position, value transmitter, light scene extension, operating mode setting for room temperature controller
• Extension of the detection area by way of operating several devices as main unit or extension unit
• Sensitivity can be set manually
• Status LEDs
• Manual switching on the device

Plastic design cover made from 95% recycled material in accordance with DIN EN ISO 14021 - sustainable, conserves resources
