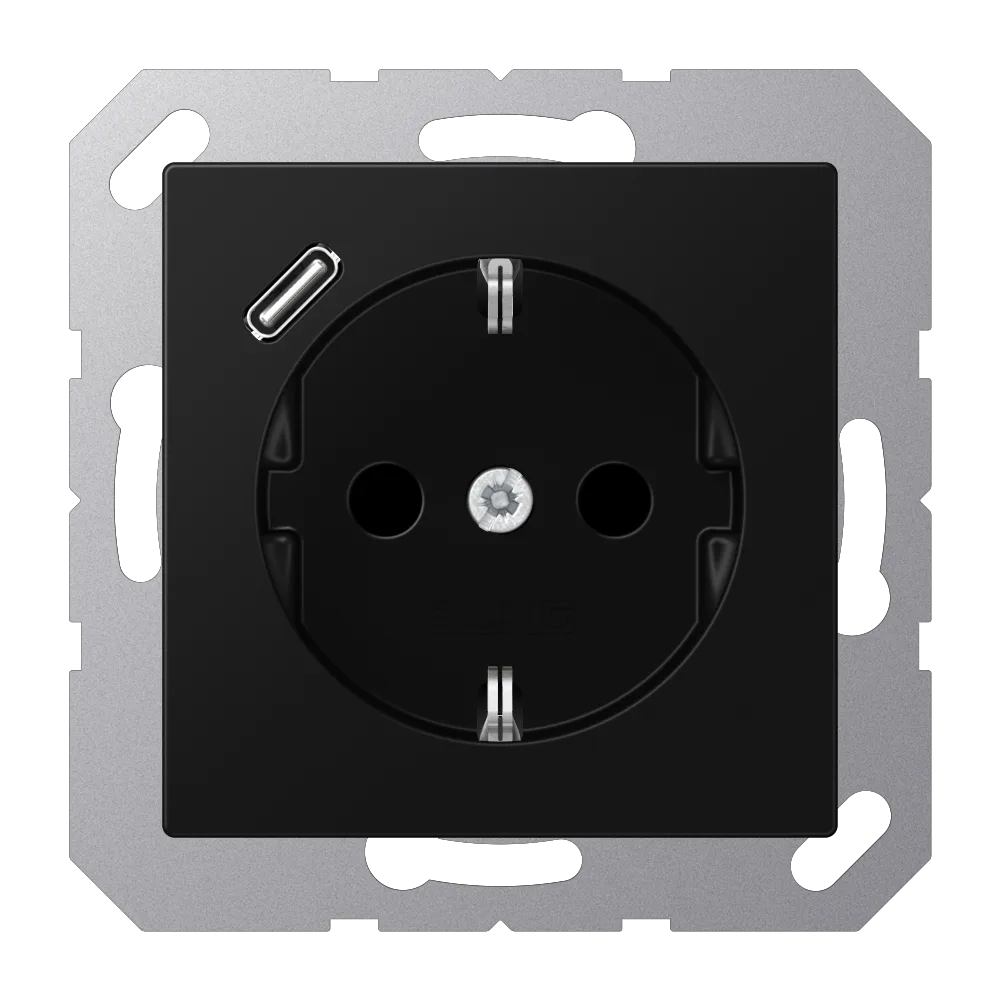

SCHUKO® socket with USB charger
Retail Price
120,850 ₸
Made to order from Germany
Characteristics
- Article number
- A 1520-18 C SWM
- EAN/GTIN
- 4011377187597
- Colour
- matt graphite black
- Material
- thermoplastic lacquered
- Type
- 1 x type C
- Width
- 55 mm
- Height
- 55 mm
Description & specifications
SCHUKO® socket with USB charger with enhanced contact protection / shutter (Safety Plus) with 1 USB port type C with quick charge function (JUNG Quick Charge®) with screwless terminals for rigid and untreated flexible wires up to 2.5 mm2 Installation in flush box with dimensions according to DIN 49073
Technical data
- Rated voltage
- AC 220 ... 250 V ~
- Mains frequency
- 50/60 Hz
- Rated current
- 16 A
- Output voltage USB
- DC 9 V / DC 5 V
- Output current USB
- 2 A / 3 A
- Stand-by power
- ≤ 25 mW
- Ambient temperature
- +5 ... +35 °C
- Storage/transport temperature
- −20 ... +70 °C
- Connection mode
- screwless terminals
- single wire
- 1.5 ... 2.5 mm²
- stranded without ferrule
- 1.5 ... 2.5 mm² matt lacquered
- Colour
- matt graphite black
- Material
- thermoplastic lacquered Individual colour printing possible
Other Colors
7
Compatible Products
93Frames, rockers, sockets and covers that fit this article. Filter by colour, range or gang count.
Frames (14/93)
Color
A5581BFSWM
Frame for horizontal and vertical installation
14,100 ₸
A5581BFNASWM
Frame for horizontal and vertical installation
20,595 ₸
A5582BFSWM
Frame for horizontal and vertical installation · 2-gang
20,285 ₸
A5582-0BFSWM
2-gang frame A550, ex crossbar
23,520 ₸
A55820BFNASWM
Frame with inscription field for horizontal installation · 2-gang
33,770 ₸
A5582BFNASWM
Frame with inscription field for vertical installation · 2-gang
33,770 ₸
A5583BFSWM
Frame for horizontal and vertical installation · 3-gang
35,275 ₸
A55830BFNASWM
Frame with inscription field for horizontal installation · 3-gang
53,990 ₸
A5583BFNASWM
Frame with inscription field for vertical installation · 3-gang
53,990 ₸
A5584BFSWM
Frame for horizontal and vertical installation · 4-gang
56,730 ₸
- Frame for horizontal and vertical installation
- Frame for horizontal and vertical installation
- Frame for horizontal and vertical installation
- Frame for horizontal and vertical installation
- Frame for horizontal and vertical installation
- Frame for horizontal and vertical installation
- Frame for horizontal and vertical installation
- Frame for horizontal and vertical installation
- Frame for horizontal and vertical installation
- Frame for horizontal and vertical installation
- Frame for horizontal and vertical installation
- Frame 28 mm height above surface
- Frame for horizontal and vertical installation · 2-gang
- Frame for horizontal and vertical installation · 2-gang
- Frame for horizontal and vertical installation · 2-gang
- Frame for horizontal and vertical installation · 2-gang
- 2-gang frame A550, ex crossbar
- 2-gang frame A550, ex crossbar
- 2-gang frame A550, ex crossbar
- Frame for horizontal and vertical installation · 2-gang
- Frame with inscription field for horizontal installation · 2-gang
- Frame with inscription field for vertical installation · 2-gang
- Frame for horizontal and vertical installation · 2-gang
- Frame for horizontal and vertical installation · 2-gang
- 2-gang frame A550, ex crossbar
- Frame with inscription field for horizontal installation · 2-gang
- Frame with inscription field for horizontal installation · 2-gang
- Frame with inscription field for vertical installation · 2-gang
- Frame with inscription field for vertical installation · 2-gang
- 2-gang frame A550, ex crossbar
- Frame, 2-gang without crossbar
- Frame 2-gang · cross
- Frame with inscription field for horizontal installation · 2-gang
- Frame with inscription field for vertical installation · 2-gang
- Frame 28 mm height above surface · 2-gang
- Frame for horizontal and vertical installation · 3-gang
- Frame for horizontal and vertical installation · 3-gang
- Frame for horizontal and vertical installation · 3-gang
- Frame for horizontal and vertical installation · 3-gang
- Frame for horizontal and vertical installation · 3-gang
- Frame for horizontal and vertical installation · 3-gang
- Frame for horizontal and vertical installation · 3-gang
- Frame with inscription field for horizontal installation · 3-gang
- Frame with inscription field for vertical installation · 3-gang
- Frame with inscription field for horizontal installation · 3-gang
- Frame with inscription field for horizontal installation Frame with inscription field for vertical installa · 3-gang
- Frame with inscription field for vertical installation · 3-gang
- Frame with inscription field for vertical installation Frame with inscription field for horizontal installa · 3-gang
- Frame with inscription field for horizontal installation · 3-gang
- Frame with inscription field for vertical installation · 3-gang
- Frame for horizontal and vertical installation · 4-gang
- Frame for horizontal and vertical installation · 4-gang
- Frame for horizontal and vertical installation · 4-gang
- Frame for horizontal and vertical installation · 4-gang
- Frame with inscription field for horizontal installation · 4-gang
- Frame with inscription field for vertical installation · 4-gang
- Frame for horizontal and vertical installation · 4-gang
- Frame for horizontal and vertical installation · 4-gang
- Frame for horizontal and vertical installation · 4-gang
- Frame with inscription field for horizontal installation · 4-gang
- Frame with inscription field for horizontal installation Frame with inscription field for vertical installa · 4-gang
- Frame with inscription field for vertical installation · 4-gang
- Frame with inscription field for vertical installation Frame with inscription field for horizontal installa · 4-gang
- Frame with inscription field for horizontal installation · 4-gang
- Frame with inscription field for horizontal installation · 4-gang
- Frame with inscription field for vertical installation · 4-gang
- Frame with inscription field for vertical installation · 4-gang
- Frame for horizontal and vertical installation · 5-gang
- Frame for horizontal and vertical installation · 5-gang
- Frame for horizontal and vertical installation · 5-gang
- Frame with inscription field for horizontal installation · 5-gang
- Frame with inscription field for vertical installation · 5-gang
- Frame for horizontal and vertical installation · 5-gang
- Frame with inscription field for horizontal installation · 5-gang
- Frame with inscription field for horizontal installation Frame with inscription field for vertical installa · 5-gang
- Frame with inscription field for vertical installation · 5-gang
- Frame with inscription field for vertical installation Frame with inscription field for horizontal installa · 5-gang
- Frame for horizontal and vertical installation · 5-gang
- Frame for horizontal and vertical installation · 5-gang
- Frame with inscription field for horizontal installation · 5-gang
- Frame with inscription field for horizontal installation · 5-gang
- Frame with inscription field for vertical installation · 5-gang
- Frame with inscription field for vertical installation · 5-gang
Showing 10 of 14
Logistics
Single Item
- Packaging unit
- 1 pc.
- Weight
- 0.146 KG
- Length
- 85 MM
- Height
- 73 MM
- Width
- 85 MM
Carton
- Packaging unit
- 1 pc.
- Weight
- 0.146 KG
- Length
- 85 MM
- Height
- 73 MM
- Width
- 85 MM
Palette
- Packaging unit
- 1440 pc.
- Weight
- 285.04 KG
- Length
- 1200 MM
- Height
- 1476 MM
- Width
- 800 MM
