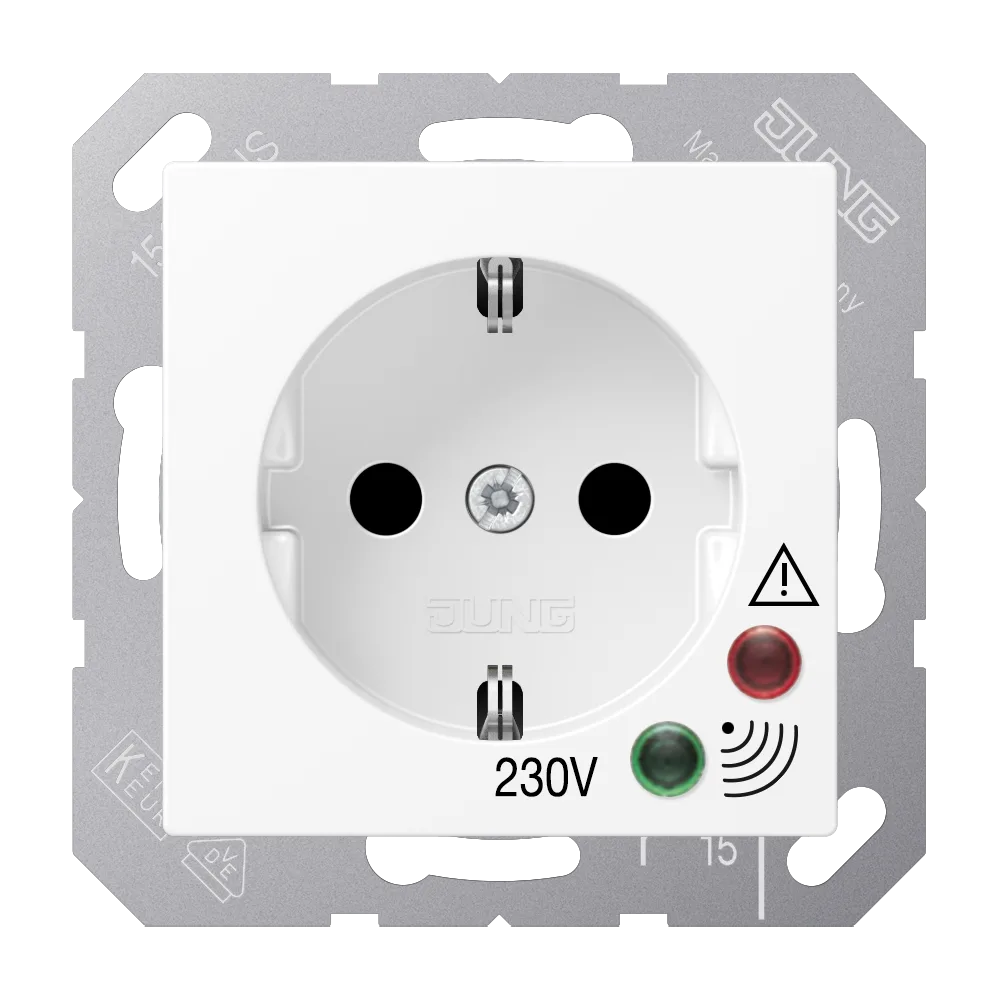

SCHUKO® socket with surge voltage protection
Retail Price
264,655 ₸
Made to order from Germany
Characteristics
- Article number
- A 521 UF WW
- EAN/GTIN
- 4011377203846
- Colour
- white
- Material
- duroplastic
- Width
- 55 mm
- Height
- 55 mm
- Date of discontinuation
- 31.03.2026
Description & specifications
SCHUKO® socket with surge voltage protection with screw terminals for rigid and flexible wires up to 2.5 mm2
Intended use
Product characteristics
- Type 3 fine protection for protecting electrical and electronic devices against transient power surges according to EN 61643-11 protection
- For use in TN, TT and IT systems
- Stationary mounting in interiors
- Installation in flush box with dimensions according to DIN 49073
- The device protects electrical and electronic devices against transient power surges.
- Failure of the protection function is indicated by an acoustic and visual signal.
Technical data
- Surge voltage protection
- type 3 surge arrester
- Rated voltage UN
- AC 230 V ~
- Mains frequency
- 50/60 Hz
- Max. continuous voltage UC
- AC 255 V ~
- Open-circuit voltage UOC
- 4 kV
- Protection level between L/N
- ≤ 1.25 kV
- Protection level between L/PE
- ≤ 1.25 kV
- Protection level between N/PE
- ≤ 1.25 kV
- Rated load current IL
- 16 A
- Ambient temperature
- −5 ... +40 °C Duroplastic (scratch-proof) glossy
- Colour
- white
- Material
- duroplastic
