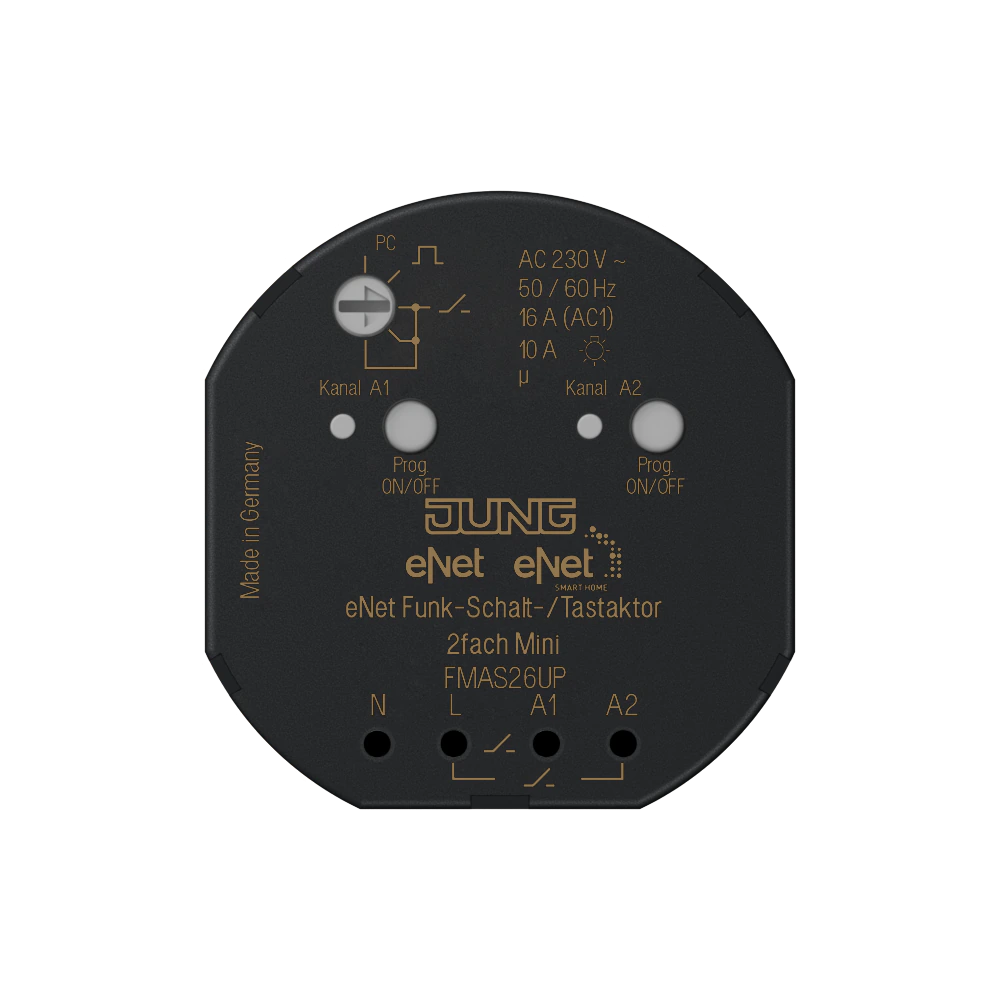

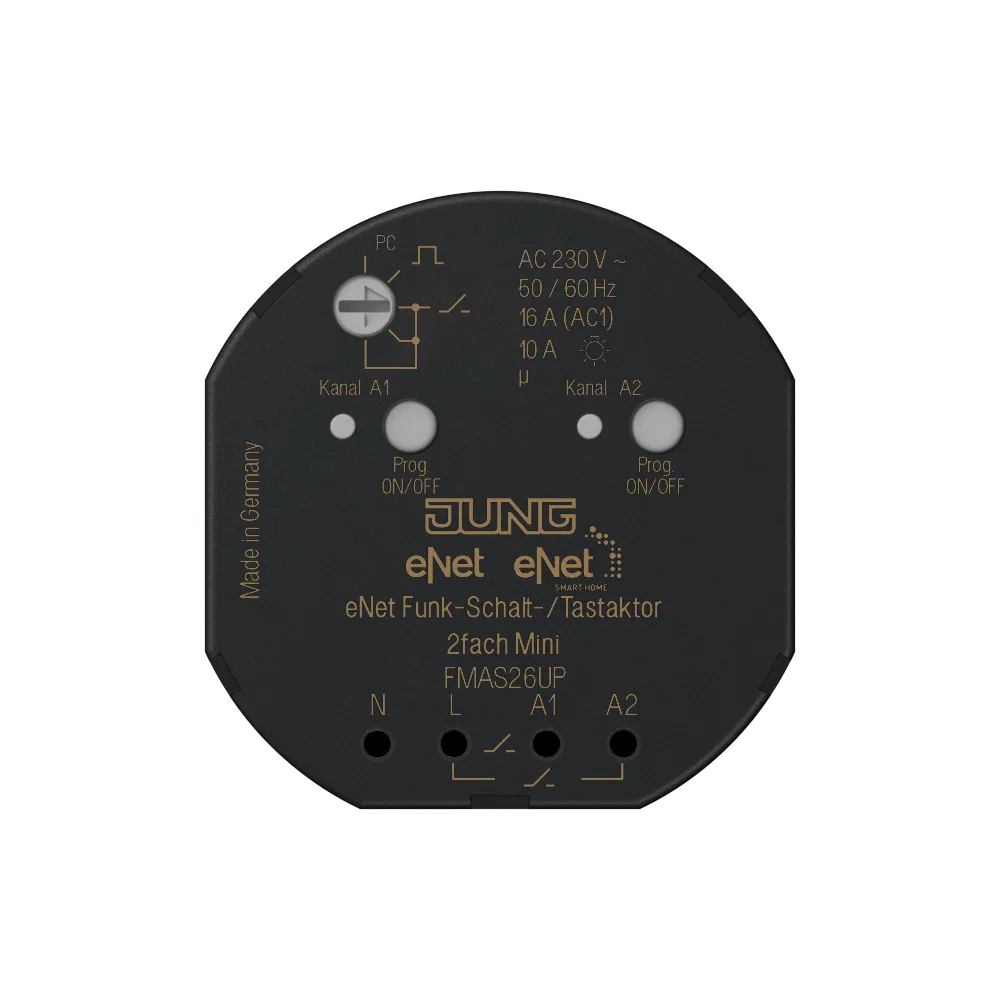

eNet radio switch/push-button actuator 2-gang mini
Retail Price
164,105 ₸
Made to order from Germany
Characteristics
- Article number
- FM AS 26 UP
- EAN/GTIN
- 4011377086869
Description & specifications
eNet radio switch/push-button actuator 2-gang mini
Intended use
Product characteristics
- Switching of lighting and single-phase motors
- Operation with suitable eNet radio transmitters a suitable cover
- Mounting in surface-mounted housing or mounting adapter (ref.-no. FM-EBG) for false ceilings
- Operating mode switch for: switch/push-button actuator together for both outputs or parameterisation via eNet server
- Independent switching of two electrical loads
- Status feedback to radio transmitter
- Scene operation possible
- Status indication with LED
- Switch-on telegram: Device switches on
- Switch-off telegram: Device switches off
Can be set with eNet server for each output:
- Relay contact remains closed as long as ON or OFF telegrams are being received
- The maximum switch-on time is 60 seconds
- Flash function
- Run-on time
- Switch-on delay / switch-off delay
- Operation as 1-way NO or 1-way NC contacts
- Switch-off warning
- Minimum switching repeat time
- Operating locks
- Continuous on, Continuous off
- Fully-encrypted radio transmission (AES-CCM) from eNet server software version 2.0
- Update of the device software
- Repeater function
- Reading of error memory
Technical data
- Rated voltage
- AC 230 V ~
- Mains frequency
- 50/60 Hz
- Ambient temperature
- −25 ... +70 °C Switching current at 35 °C
- Ohmic
- 16 A (AC1) For switching current > 10 A connecting cable 2.5 mm²
- Current carrying capacity of device
- 16 A
- Fluorescent lamps
- 4 AX
- Contact type
- µ
- Stand-by power
- max. 0.5 W Connected load per output at 35 °C
- Incandescent lamps
- 2300 W
- HV halogen lamps
- 2000 W
- Electronic transformers
- 1500 W
- Inductive transformers
- 1000 VA
- HV LED lamps
- typical 500 W
- Compact fluorescent lamps
- typical 500 W
- Fluorescent lamps non-compensated
- 920 VA
- Motors
- 450 VA
- Capacitive load
- 690 VA (560 µF)
- Connection mode
- screw terminals
- single wire
- 1 x 0.75 ... 4 mm²
- stranded with ferrule
- 1 x 0.75 ... 2.5 mm²
- Dimensions (Ø x H)
- 53 x 28 mm
- Radio frequency
- 868.0 ... 868.6 MHz
- Transmitting power
- max. 20 mW
- Transmission range in free field
- typical 100 m
- Receiver category
- 2
Compatible Products
2Frames, rockers, sockets and covers that fit this article. Filter by colour, range or gang count.
Logistics
Single Item
- Packaging unit
- 1 pc.
- Weight
- 0.07 KG
- Length
- 82 MM
- Height
- 45 MM
- Width
- 82 MM
Carton
- Packaging unit
- 10 pc.
- Weight
- 0.807 KG
- Length
- 235 MM
- Height
- 92 MM
- Width
- 175 MM
