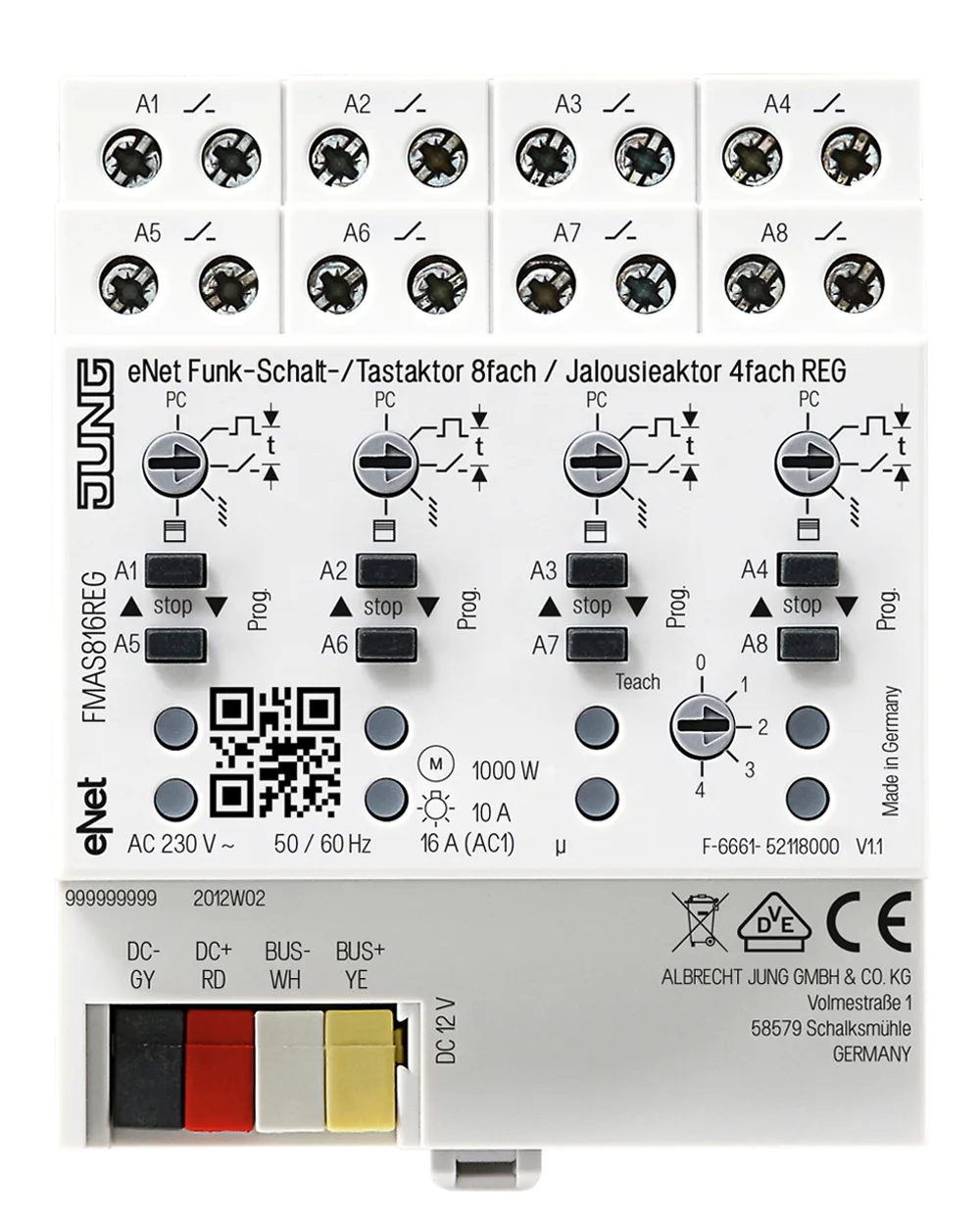

eNet radio switch/push-button actuator 8-gang / blinds actuator 4-gang, for rail mounting
Retail Price
459,515 ₸
Made to order from Germany
Characteristics
- Article number
- FM AS 816 REG
- EAN/GTIN
- 4011377087569
Description & specifications
eNet radio switch/push-button actuator 8-gang / blinds actuator 4-gang, for rail mounting rail mounting device, 4 rail units
Intended use
(ref.-no. FM FK 32 REG) or eNet server
Product characteristics
- Switching of lighting
- Switching of single-phase fan motors
- Controlling electrically driven blinds, shutters and awnings
- Operation with suitable eNet radio transmitters
- Operation with power supply (ref.-no. NT 1220 REG VDC) and eNet radio receiver
- Mounting on DIN rail according to EN 60715 in distribution box
- Operating mode switch for switch-over of switch actuator, push-button actuator, blind actuator, shutter actuator or configuration via eNet server
- Status feedback to radio transmitter
- Scene operation possible
- Outputs switchable with Prog button
- Status indication of the outputs via LED
- Switch-on telegram: Device switches on
- Switch-off telegram: Device switches off
Operating mode "Venetian blind / Roller shutter":
Can be set with eNet server in switching/push-button operation:
Can be set in the operating mode "Venetian blind/Rolling shutter" with eNet server:
- Relay contact remains closed as long as ON or OFF telegrams are being received
- The maximum switch-on time is 60 seconds
- Positioning of the blind and slats via light scene recall
- Position for sun protection and twilight can be saved
- Blind/shutter running time can be saved
- Slat change-over time can be saved
- Fabric-stretching for awnings
- Operating mode for each output can be set separately
- Flash function
- Run-on time
- Switch-on delay / switch-off delay
- Operation as 1-way NO or 1-way NC contacts
- Switch-off warning
- Minimum switching repeat time
- Operating locks
- Continuous on, Continuous off
- Change-over time for direction change
- Running direction invertible
- Operating locks
- Position for sun protection, twilight, lock-out protection and wind alarm
- Fully-encrypted radio transmission (AES-CCM) from eNet server software version 2.0
- Update of the device software
- Reading of error memory
Technical data
- Rated voltage
- DC 12 V SELV
- Ambient temperature
- −5 ... +45 °C
- Switching voltage
- AC 250 V ~ Minimum actuation time in operating mode
- Blind
- 0.1 s
- Shutter
- 0.3 s
- Running time
- 1 ... 600 s
- Running time default setting
- 120 s
- Slat adjusting time
- 0 ... 10 s Switching current per output for AC 230 V ~
- Ohmic
- 16 A (AC1) For switching current > 10 A connecting cable 2.5 mm²
- Fluorescent lamps
- 4 AX Switching current neighbouring load outputs: 20 A
- Current carrying capacity of device
- max. 80 A
- Contact type
- µ
- Stand-by power
- max. 0.5 W Connected load per output
- Motors
- 1000 W
- Incandescent lamps
- 2300 W
- HV halogen lamps
- 2000 W
- Electronic transformers
- 1500 W
- Inductive transformers
- 1000 VA
- HV LED lamps
- typical 500 W
- Compact fluorescent lamps
- typical 500 W
- Fluorescent lamps non-compensated
- 920 VA
- Capacitive load
- 690 VA (560 µF) Connection, outputs
- Connection mode
- screw terminals
- single wire
- 1 x 1.5 ... 4 mm²
- stranded without ferrule
- 1 x 0.75 ... 4 mm²
- stranded with ferrule
- 1 x 0.5 ... 2.5 mm²
- Mounting width
- 72 mm (4 rail units) 02.06.2026 2 of 3 Bus line
- Current consumption
- 60 mA
- Connection bus
- terminal
- Cable length
- max. 3 m
Compatible Products
11Frames, rockers, sockets and covers that fit this article. Filter by colour, range or gang count.
Inserts (2)
Cover plates (1)
Accessories (8)
NT1220REGVDC
Power supply 12 V, for rail mounting
95,105 ₸
FMFK32REG
eNet radio receiver for rail mounting
131,285 ₸
ENET-SERVER
eNet server for rail mounting
971,195 ₸
FMHS1T
eNet radio hand-held transmitter 1-gang
78,790 ₸
FMHS2
eNet radio hand-held transmitter 2-gang
78,790 ₸
FMLS1701
eNet push-button universal 1-gang
147,575 ₸
FMFS1S
eNet radio brightness detector, solar-powered
128,675 ₸
FMDW360WW
eNet motion detector
182,650 ₸
Logistics
Single Item
- Packaging unit
- 1 pc.
- Weight
- 0.334 KG
- Length
- 113 MM
- Height
- 75 MM
- Width
- 76 MM
Carton
- Packaging unit
- 1 pc.
- Weight
- 0.334 KG
- Length
- 113 MM
- Height
- 75 MM
- Width
- 76 MM
