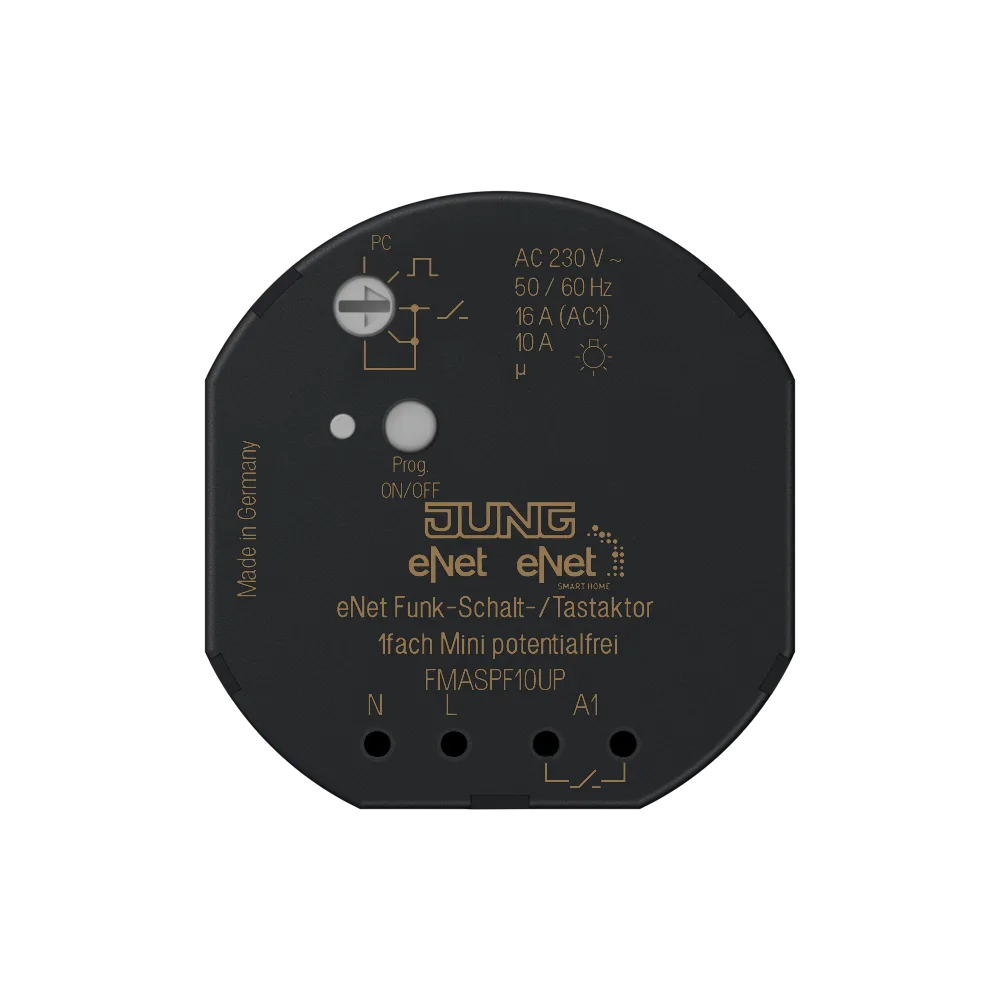

eNet radio switch/push-button actuator with floating contact, 1-gang mini
Retail Price
137,845 ₸
Made to order from Germany
Characteristics
- Article number
- FM AS PF 10 UP
- EAN/GTIN
- 4011377086845
Description & specifications
eNet radio switch/push-button actuator with floating contact, 1-gang mini
Intended use
Product characteristics
- Switching of lighting
- Operation with suitable eNet radio transmitters a suitable cover
- Mounting in surface-mounted housing or mounting adapter (ref.-no. FM-EBG) for false ceilings
- Operating mode switch for: switch/push-button actuator or parameterisation via eNet server
- Status feedback to radio transmitter
- Scene operation possible
- Switchable output with Prog button
- Status indication with LED
- Switch-on telegram: Device switches on
- Switch-off telegram: Device switches off
- Relay contact remains closed as long as ON or OFF telegrams are being received
- The maximum switch-on time is 60 seconds
- Flash function
- Run-on time
- Switch-on delay / switch-off delay
- Operation as 1-way NO or 1-way NC contacts
- Switch-off warning
- Minimum switching repeat time
- Operating locks
- Continuous on, Continuous off
- Fully-encrypted radio transmission (AES-CCM) from eNet server software version 2.0
- Update of the device software
- Repeater function
- Reading of error memory
Technical data
- Rated voltage
- AC 230 V ~
- Mains frequency
- 50/60 Hz
- Ambient temperature
- −25 ... +70 °C Switching current at 35 °C
- Ohmic
- 16 A (AC1) For switching current > 10 A connecting cable 2.5 mm²
- Fluorescent lamps
- 4 AX
- Contact type
- µ
- Stand-by power
- 0.5 W Connected load at 35 °C
- Incandescent lamps
- 2300 W
- HV halogen lamps
- 2000 W
- Electronic transformers
- 1500 W
- Inductive transformers
- 1000 VA
- HV LED lamps
- typical 500 W
- Compact fluorescent lamps
- typical 500 W
- Fluorescent lamps non-compensated
- 920 VA
- Capacitive load
- 690 VA (560 µF)
- Connection mode
- screw terminals
- single wire
- 1 x 0.75 ... 4 mm²
- stranded with ferrule
- 1 x 0.75 ... 2.5 mm²
- Dimensions (Ø x H)
- 53 x 28 mm
- Radio frequency
- 868.0 ... 868.6 MHz
- Transmitting power
- max. 20 mW
- Transmission range in free field
- typical 100 m
- Receiver category
- 2
