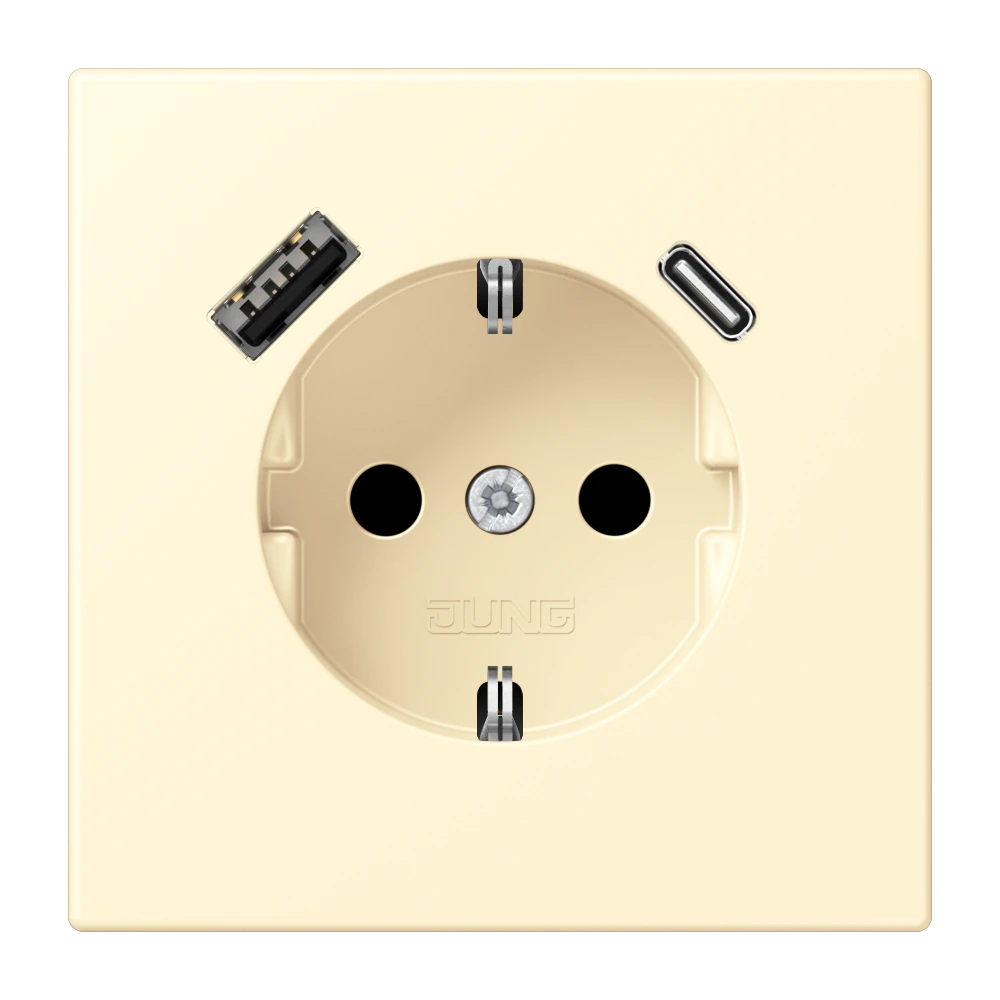

SCHUKO® socket with USB charger — JUNG LS 990 Le Corbusier, Blanc, art. LC1520-15CA201
LS 990 Le Corbusier · Blanc · LC1520-15CA201

Download image

WebP · high qualityfor print and proposals · 26 KBWebP · optimisedlightweight — for web and email · 16 KB
LS 990 Le Corbusier·LC1520-15CA201

SCHUKO® socket with USB charger

Retail Price

218,400 ₸

Made to order from Germany

Characteristics

Article number
LC 1520-15 CA 201
EAN/GTIN
4011377285118
Colour
Blanc
Material
thermoplastic lacquered
Type
1 x type A + 1 x type C
Width
70 mm
Height
70 mm

Description & specifications

SCHUKO® socket with USB charger with enhanced contact protection / shutter (Safety Plus) with 1 USB port type A and 1 USB port type C with screwless terminals for rigid and untreated flexible wires up to 2.5 mm2 Installation in flush box with dimensions according to DIN 49073

Technical data

Rated voltage
AC 220 ... 250 V ~
Mains frequency
50/60 Hz
Rated current
16 A
Output voltage USB
DC 5 V
Output current USB (total)
3 A
Stand-by power
≤ 25 mW
Ambient temperature
+5 ... +35 °C
Storage/transport temperature
−20 ... +70 °C
Connection mode
screwless terminals
single wire
1.5 ... 2.5 mm²
stranded without ferrule
1.5 ... 2.5 mm² matt lacquered
Colour
blanc
Material
duroplastic lacquered Individual colour printing possible

Technical datasheet

Official JUNG document · PDF · LC1520-15CA201

RussianEnglish

Other Colors

62
JUNG LS 990 Le Corbusier, Gris Foncé 31, art. LC1520-15CA202

LC1520-15CA202

Gris Foncé 31

JUNG LS 990 Le Corbusier, Gris 31, art. LC1520-15CA203

LC1520-15CA203

Gris 31

JUNG LS 990 Le Corbusier, Gris Moyen, art. LC1520-15CA204

LC1520-15CA204

Gris Moyen

JUNG LS 990 Le Corbusier, Gris Clair 31, art. LC1520-15CA205

LC1520-15CA205

Gris Clair 31

JUNG LS 990 Le Corbusier, Bleu Outremer 31, art. LC1520-15CA206

LC1520-15CA206

Bleu Outremer 31

JUNG LS 990 Le Corbusier, Outremer Moyen, art. LC1520-15CA207

LC1520-15CA207

Outremer Moyen

JUNG LS 990 Le Corbusier, Outremer Clair, art. LC1520-15CA208

LC1520-15CA208

Outremer Clair

JUNG LS 990 Le Corbusier, Outremer Pale, art. LC1520-15CA209

LC1520-15CA209

Outremer Pale

JUNG LS 990 Le Corbusier, Outremer Gris, art. LC1520-15CA210

LC1520-15CA210

Outremer Gris

JUNG LS 990 Le Corbusier, Bleu Céruléen 31, art. LC1520-15CA211

LC1520-15CA211

Bleu Céruléen 31

JUNG LS 990 Le Corbusier, Céruléen Vif, art. LC1520-15CA212

LC1520-15CA212

Céruléen Vif

JUNG LS 990 Le Corbusier, Céruléen Moyen, art. LC1520-15CA213

LC1520-15CA213

Céruléen Moyen

JUNG LS 990 Le Corbusier, Céruléen Clair, art. LC1520-15CA214

LC1520-15CA214

Céruléen Clair

JUNG LS 990 Le Corbusier, Céruléen Pale, art. LC1520-15CA215

LC1520-15CA215

Céruléen Pale

JUNG LS 990 Le Corbusier, Vert Anglais, art. LC1520-15CA216

LC1520-15CA216

Vert Anglais

JUNG LS 990 Le Corbusier, Vert Anglais Clair, art. LC1520-15CA217

LC1520-15CA217

Vert Anglais Clair

JUNG LS 990 Le Corbusier, Vert Anglâis Pale, art. LC1520-15CA218

LC1520-15CA218

Vert Anglâis Pale

JUNG LS 990 Le Corbusier, Vert Foncé, art. LC1520-15CA219

LC1520-15CA219

Vert Foncé

JUNG LS 990 Le Corbusier, Vert 31, art. LC1520-15CA220

LC1520-15CA220

Vert 31

JUNG LS 990 Le Corbusier, Vert Clair, art. LC1520-15CA221

LC1520-15CA221

Vert Clair

JUNG LS 990 Le Corbusier, Vert Jaune Clair, art. LC1520-15CA222

LC1520-15CA222

Vert Jaune Clair

JUNG LS 990 Le Corbusier, Ocre, art. LC1520-15CA223

LC1520-15CA223

Ocre

JUNG LS 990 Le Corbusier, Orange, art. LC1520-15CA224

LC1520-15CA224

Orange

JUNG LS 990 Le Corbusier, Orange Clair, art. LC1520-15CA225

LC1520-15CA225

Orange Clair

JUNG LS 990 Le Corbusier, Orange Pâle, art. LC1520-15CA226

LC1520-15CA226

Orange Pâle

JUNG LS 990 Le Corbusier, Rouge Vermillon 31, art. LC1520-15CA227

LC1520-15CA227

Rouge Vermillon 31

JUNG LS 990 Le Corbusier, Rose Pâle, art. LC1520-15CA228

LC1520-15CA228

Rose Pâle

JUNG LS 990 Le Corbusier, Rouge Carmin, art. LC1520-15CA229

LC1520-15CA229

Rouge Carmin

JUNG LS 990 Le Corbusier, Rouge Rubia, art. LC1520-15CA230

LC1520-15CA230

Rouge Rubia

JUNG LS 990 Le Corbusier, Rose Clair, art. LC1520-15CA231

LC1520-15CA231

Rose Clair

JUNG LS 990 Le Corbusier, L'Ocre Rouge, art. LC1520-15CA232

LC1520-15CA232

L'Ocre Rouge

JUNG LS 990 Le Corbusier, L'Ocre Rouge Moyen, art. LC1520-15CA233

LC1520-15CA233

L'Ocre Rouge Moyen

JUNG LS 990 Le Corbusier, L'Ocre Rouge Clair, art. LC1520-15CA234

LC1520-15CA234

L'Ocre Rouge Clair

JUNG LS 990 Le Corbusier, Terre Sienne Brûlée 31, art. LC1520-15CA235

LC1520-15CA235

Terre Sienne Brûlée 31

JUNG LS 990 Le Corbusier, Terre Sienne Brique, art. LC1520-15CA236

LC1520-15CA236

Terre Sienne Brique

JUNG LS 990 Le Corbusier, Terre Sienne Claire 31, art. LC1520-15CA237

LC1520-15CA237

Terre Sienne Claire 31

JUNG LS 990 Le Corbusier, Terre Sienne Pâle, art. LC1520-15CA238

LC1520-15CA238

Terre Sienne Pâle

JUNG LS 990 Le Corbusier, Terre D'Ombre Brûlée 31, art. LC1520-15CA239

LC1520-15CA239

Terre D'Ombre Brûlée 31

JUNG LS 990 Le Corbusier, Ombre Brûlée Claire, art. LC1520-15CA240

LC1520-15CA240

Ombre Brûlée Claire

JUNG LS 990 Le Corbusier, Ombre Naturelle 31, art. LC1520-15CA241

LC1520-15CA241

Ombre Naturelle 31

JUNG LS 990 Le Corbusier, Ombre Naturelle Moyenne, art. LC1520-15CA242

LC1520-15CA242

Ombre Naturelle Moyenne

JUNG LS 990 Le Corbusier, Ombre Naturelle Claire, art. LC1520-15CA243

LC1520-15CA243

Ombre Naturelle Claire

JUNG LS 990 Le Corbusier, Rouge Vermillon 59, art. LC1520-15CA244

LC1520-15CA244

Rouge Vermillon 59

JUNG LS 990 Le Corbusier, Blanc Ivoire, art. LC1520-15CA245

LC1520-15CA245

Blanc Ivoire

JUNG LS 990 Le Corbusier, Rose Vif, art. LC1520-15CA246

LC1520-15CA246

Rose Vif

JUNG LS 990 Le Corbusier, Terre Sienne Brûlée 59, art. LC1520-15CA247

LC1520-15CA247

Terre Sienne Brûlée 59

JUNG LS 990 Le Corbusier, Noir D'Ivoire, art. LC1520-15CA248

LC1520-15CA248

Noir D'Ivoire

JUNG LS 990 Le Corbusier, Vert Olive Vif, art. LC1520-15CA249

LC1520-15CA249

Vert Olive Vif

JUNG LS 990 Le Corbusier, Vert 59, art. LC1520-15CA250

LC1520-15CA250

Vert 59

JUNG LS 990 Le Corbusier, Gris 59, art. LC1520-15CA251

LC1520-15CA251

Gris 59

JUNG LS 990 Le Corbusier, Terre D’Ombre Brûlée 59, art. LC1520-15CA252

LC1520-15CA252

Terre D’Ombre Brûlée 59

JUNG LS 990 Le Corbusier, Bleu Outremer 59, art. LC1520-15CA253

LC1520-15CA253

Bleu Outremer 59

JUNG LS 990 Le Corbusier, Ocre Jaune Clair, art. LC1520-15CA254

LC1520-15CA254

Ocre Jaune Clair

JUNG LS 990 Le Corbusier, Le Rubis, art. LC1520-15CA255

LC1520-15CA255

Le Rubis

JUNG LS 990 Le Corbusier, Bleu Céruléen 59, art. LC1520-15CA256

LC1520-15CA256

Bleu Céruléen 59

JUNG LS 990 Le Corbusier, Gris Clair 59, art. LC1520-15CA257

LC1520-15CA257

Gris Clair 59

JUNG LS 990 Le Corbusier, Terre Sienne Claire 59, art. LC1520-15CA258

LC1520-15CA258

Terre Sienne Claire 59

JUNG LS 990 Le Corbusier, Ombre Naturelle 59, art. LC1520-15CA259

LC1520-15CA259

Ombre Naturelle 59

JUNG LS 990 Le Corbusier, Orange Vif, art. LC1520-15CA260

LC1520-15CA260

Orange Vif

JUNG LS 990 Le Corbusier, Bleu Outremer Foncé, art. LC1520-15CA261

LC1520-15CA261

Bleu Outremer Foncé

JUNG LS 990 Le Corbusier, Gris Fonce 59, art. LC1520-15CA262

LC1520-15CA262

Gris Fonce 59

JUNG LS 990 Le Corbusier, Le Jaune Vif, art. LC1520-15CA263

LC1520-15CA263

Le Jaune Vif

Compatible Products

392

Frames, rockers, sockets and covers that fit this article. Filter by colour, range or gang count.

Frames (3/392)

Color
Gangs
Frame, 1-gang

LC981201

Frame, 1-gang

32,690 ₸

Frame, 2-gang

LC982201

Frame, 2-gang

50,915 ₸

Frame, 3-gang

LC983201

Frame, 3-gang

78,465 ₸

Logistics

Single Item

Packaging unit
1 pc.
Weight
0.151 KG
Length
85 MM
Height
73 MM
Width
85 MM

Carton

Packaging unit
1 pc.
Weight
0.151 KG
Length
85 MM
Height
73 MM
Width
85 MM
