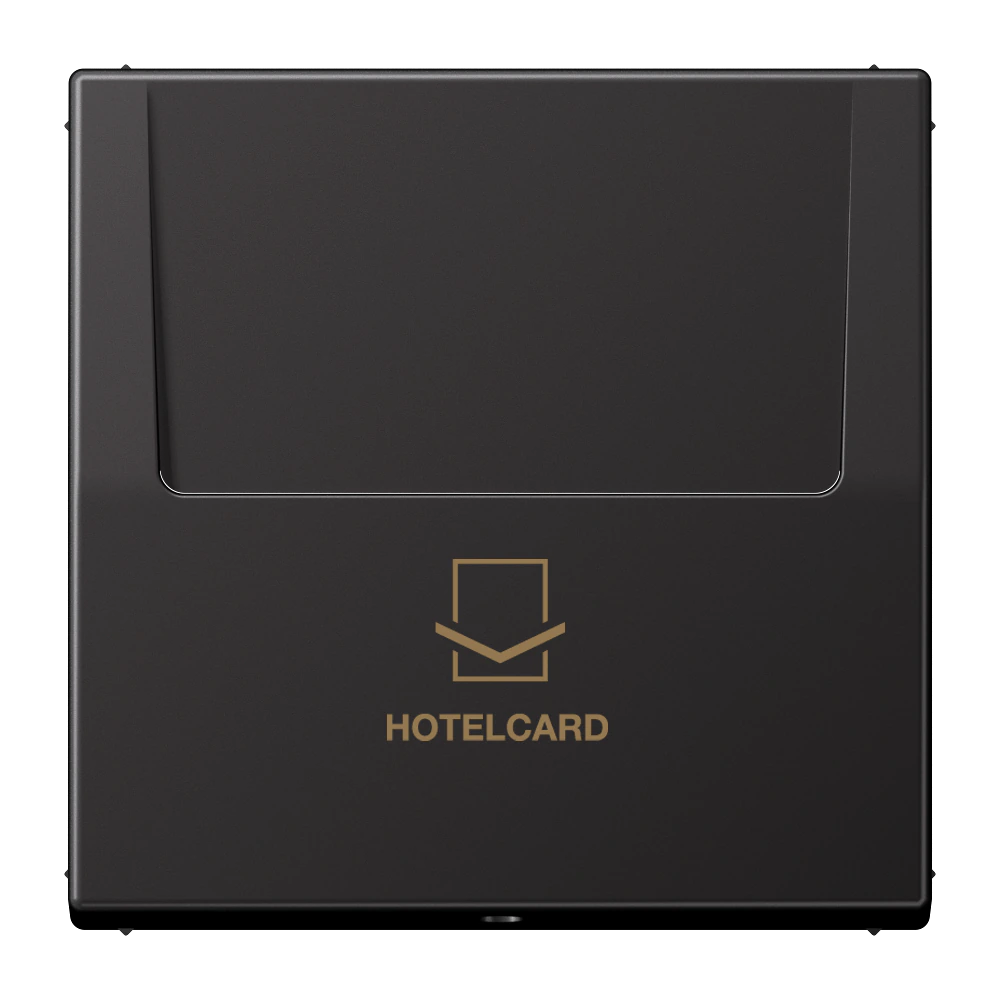

Key card holder
Retail Price
105,150 ₸
Made to order from Germany
Characteristics
- Article number
- AL 2990 CARD D
- EAN/GTIN
- 4011377140158
- Colour
- dark
- Material
- thermoplastic lacquered
- Width
- 70 mm
- Height
- 70 mm
Description & specifications
Key card holder The key card holder is used to keep the hotel card and to ensure a high level of safety and energy savings, since all possibly powered electrical loads are switched off automatically when removing the hotel card. The key card holder will be completed with a push-button of the JUNG portfolio. The push-button ref.-no. 533 U with 1-way NO/NC contact and additional N-terminal is recommended. The separate N-terminal enables the illumination of the device with incandescent or LED lamp at the same potential. If the pilot lamp should not be at the same potential, please install the push-button ref.-no. 534 U with separate signal contact.
wall. Supporting frame must be on top of wallpaper. metal colours (thermoplastic lacquered)
Technical data
- Installation note
- No plaster compensation possible. Insert must be mounted flush with the
- Colour
- dark
- Material
- thermoplastic lacquered
Compatible Products
14Frames, rockers, sockets and covers that fit this article. Filter by colour, range or gang count.
Inserts (4)
531U
1-gang push-button (insert), 1-pole, 1-way NO contact · screwless terminals
6,725 ₸
532U
1-gang push-button (insert), 2-pole, 1-way NO contact · screwless terminals
29,615 ₸
533U
1-gang push-button (insert), 1-pole, 2-way with terminal for N conductor · screwless terminals · 2-way
8,525 ₸
534U
1-gang push-button (insert), 1-pole, 1-way NO contact with separate contacts for indicator light · screwless terminals
13,920 ₸
Cover plates (2)
Frames (1/3)
Logistics
Single Item
- Packaging unit
- 1 pc.
- Weight
- 0.051 KG
- Length
- 71 MM
- Height
- 23 MM
- Width
- 71 MM
Carton
- Packaging unit
- 10 pc.
- Weight
- 0.514 KG
- Length
- 290 MM
- Height
- 80 MM
- Width
- 175 MM
