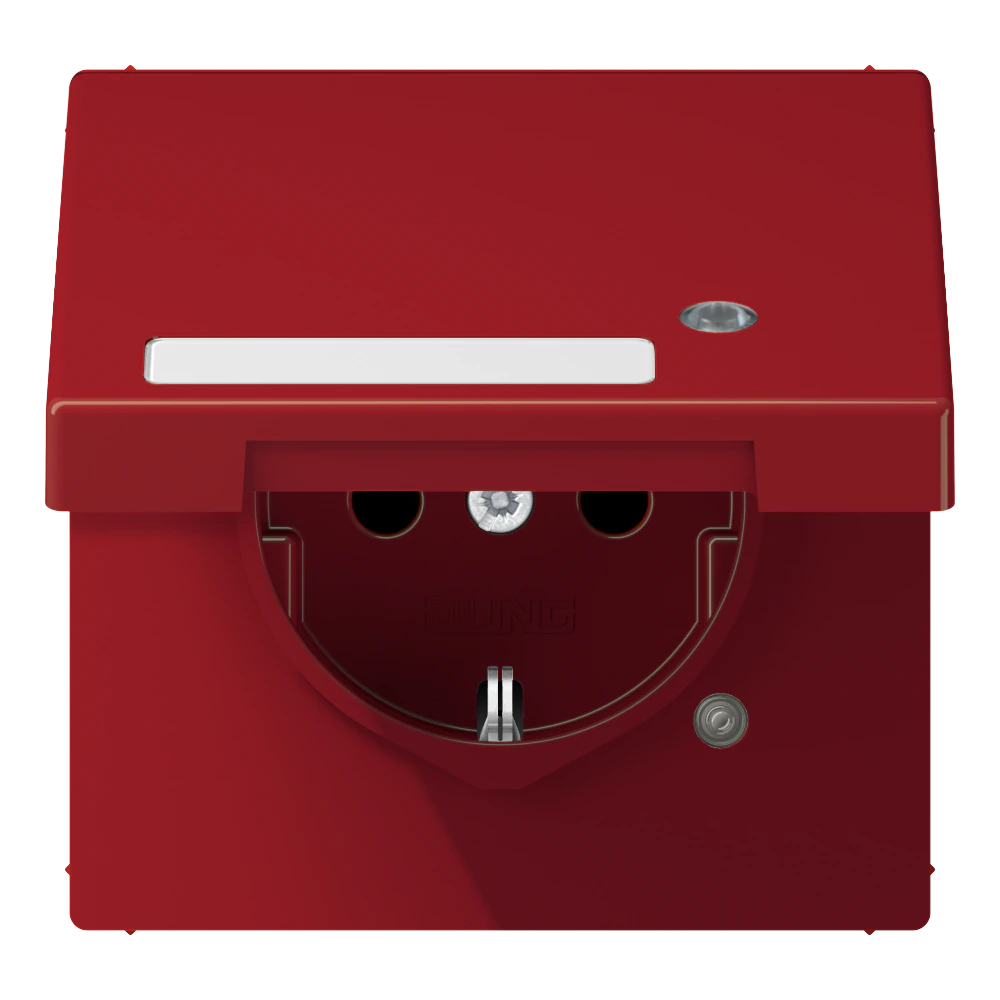

SCHUKO® socket with hinged lid, inscription field and pilot light

SCHUKO® socket 16 A / 250 V ~ with hinged lid (with spring) with inscription field 9 x 39 mm with enhanced contact protection / shutter (Safety Plus) with screwless terminals for rigid and untreated flexible wires up to 2.5 mm2 Supporting frame, claws and claw screws are integrated into the earth protection. Spare pilot light exchangeable from the front without disconnecting the mains

Inscription fields may be customised using our GRAPHIC TOOL (jung.group/gt). Notice! Installation only by persons with relevant electrical knowledge and experience!*) Use only with original JUNG product components approved for this article. By inappropriate installation you endanger • your own life, • the life of the user of the electrical appliance. By inappropriate installation you risk a high loss by damage, e.g. risk by fire. You assume personal liability in cause of injury to persons or damage of appliances. Please contact a skilled electrician! *) Required technical knowledge for installation: For installation, especially the following technical knowledge is required: •

verify parts are free of voltage, ground and short-circuit, cover or block off adjacent live parts • select adequate tools, measuring devices and personal protective equipment • evaluate measuring results • selection of the electrical installation material to secure switch-off conditions • IP protection levels • installation of the electrical installation material • type of electric power grid (TN system, IT system, TT system) and the resultant connection terms (common grounding, protective ground, required additional action etc.) Thermoplastic (breakproof) high-gloss

Degree of protection IP44 is ensured with sealing gasket ref.-no. 551 WU and "IP44 frame" of the respective design range.
