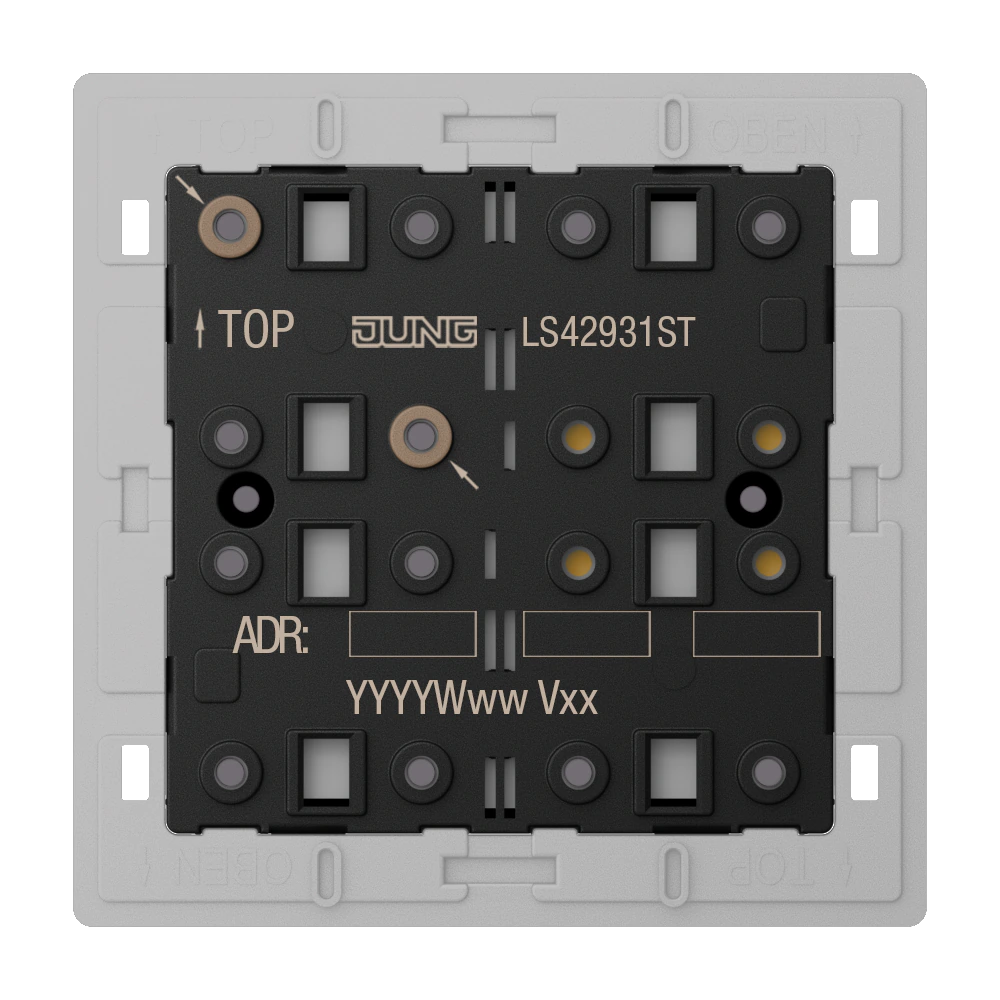

Universal push-button module 3-gang

KNX universal push-button module 3-gang

Intended use

Product characteristics

• Operation of loads, e.g. light on/off, dimming, blinds up/down, brightness values, temperatures, calling up and saving light scenes, etc.
• Installation in flush box with dimensions according to DIN 49073
• KNX medium: TP 256
• Push-button functions switching, dimming, controlling blinds, value transmitter, calling up light scenes etc.
• Measurement of room temperature
• Temperature measurement optionally with internal device sensor and external sensor connected via communication object
• To be completed with cover kit
• Two red status LEDs per button
• One blue operation LED as orientation light and to indicate the programming status
• LED functions alarm message and reducing brightness can be adjusted separately
• Integrated bus coupling unit
• One, two or three functions per button
• Push-button function or rocker function, vertical or horizontal
• Disabling function: Disabling or change function mode of single or all button functions
• Connection for a push-button extension module, 1-4 gang
• KNX Data Secure compatible with ETS 5.7.7 or ETS 6.3.0 or higher
• Can be updated with the ETS Service App
