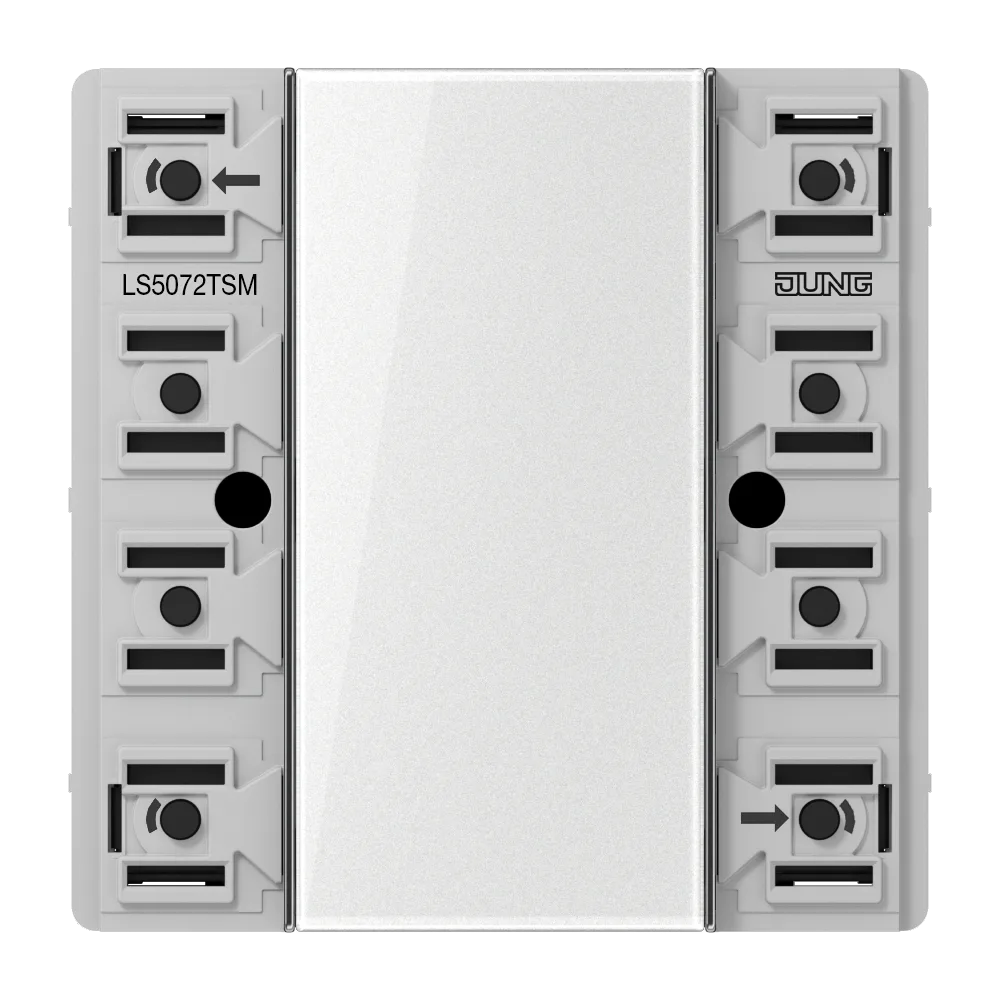

Standard push-button module 2-gang

KNX standard push-button module 2-gang

Intended use

Product characteristics

• Operation of loads, e.g. light on/off, dimming, blinds up/down, calling up and saving light scenes, etc.
• Installation in flush box with dimensions according to DIN 49073
• KNX medium: TP 256
• Push-button functions switching, dimming, controlling blinds, value transmitter, calling up light scenes etc.
• To be completed with cover kit
• Inscription field
• One red status LED for a pair of buttons
• One operation LED as orientation light and to indicate the programming status – red, green or blue adjustable
• Energy saving mode
• Integrated bus coupling unit
• Including transparent cover kit for operation on construction site without design covers

LS 50 NA WWM, LS 50 NA SWM, AL 50 NA(-L), ES 50 NA(-L), AL 50 NA AN(-L), AL 50 NA D(-L), ME 50 NA C(-L), ME 50 NA AT(-L)
