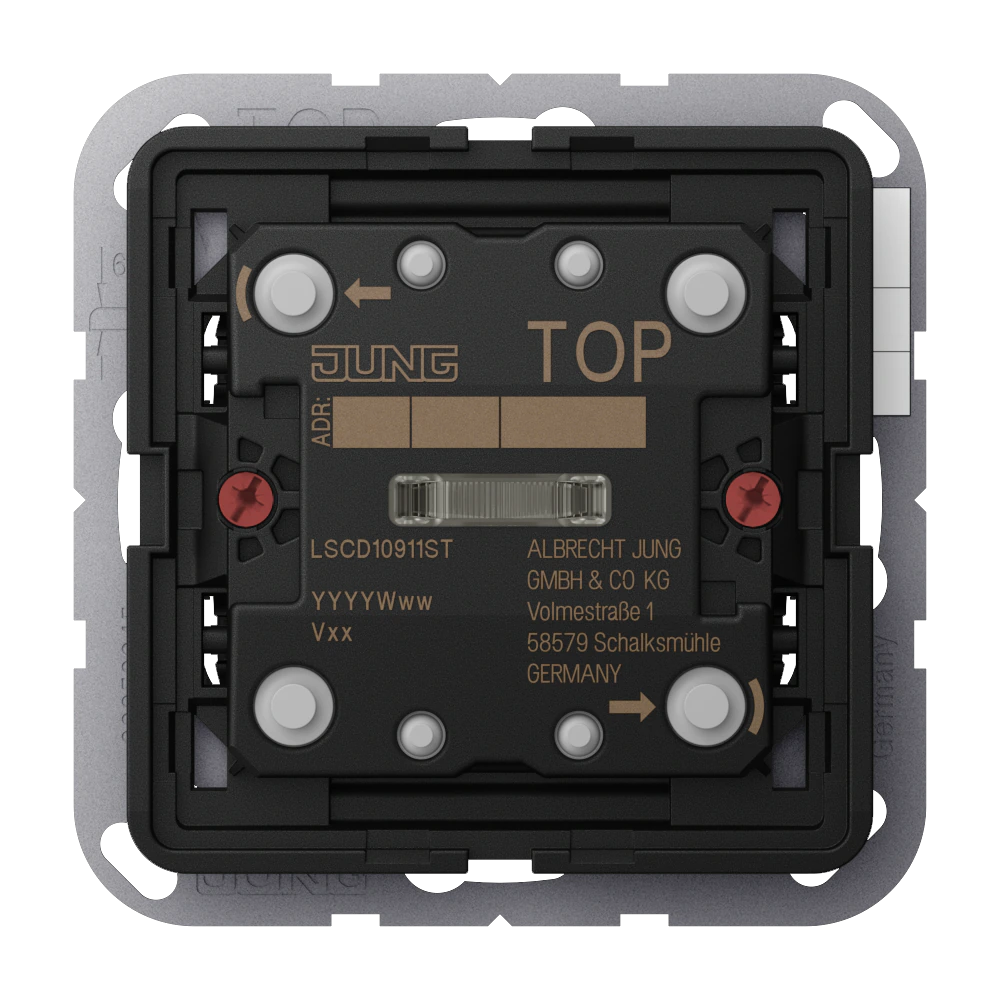

KNX push-button universal 1-gang

KNX push-button universal 1-gang for rockers ref.-no. .. 101 .., .. 101 KO5 .. of the CD and LS ranges project design and commissioning with ETS5 or a more recent version

Intended use

Product characteristics

• Operation of loads, e.g. light on/off, dimming, blinds up/down, brightness values, temperatures, calling up and saving light scenes, etc.
• Installation in flush box with dimensions according to DIN 49073
• KNX medium: TP 256
• Operating concept (rocker or button) adjustable for each operating area
• Button evaluation (single-area operation or dual-area operation) adjustable
• One or two functions per operating area
• Integrated bus coupling unit
• Alarm function, optional acknowledge by pressing any button
• Disabling function: Disabling or change function mode of single or all button functions
• Status LED brightness adjustable
• Measurement of room temperature
• One status LED per operating area – red, green or blue, adjustable
• Connection of a push-button extension possible
• Connection of installation buttons or reed contacts possible
• KNX Data Secure compatible with ETS 5.7.3 or higher
• Can be updated with the ETS Service App
