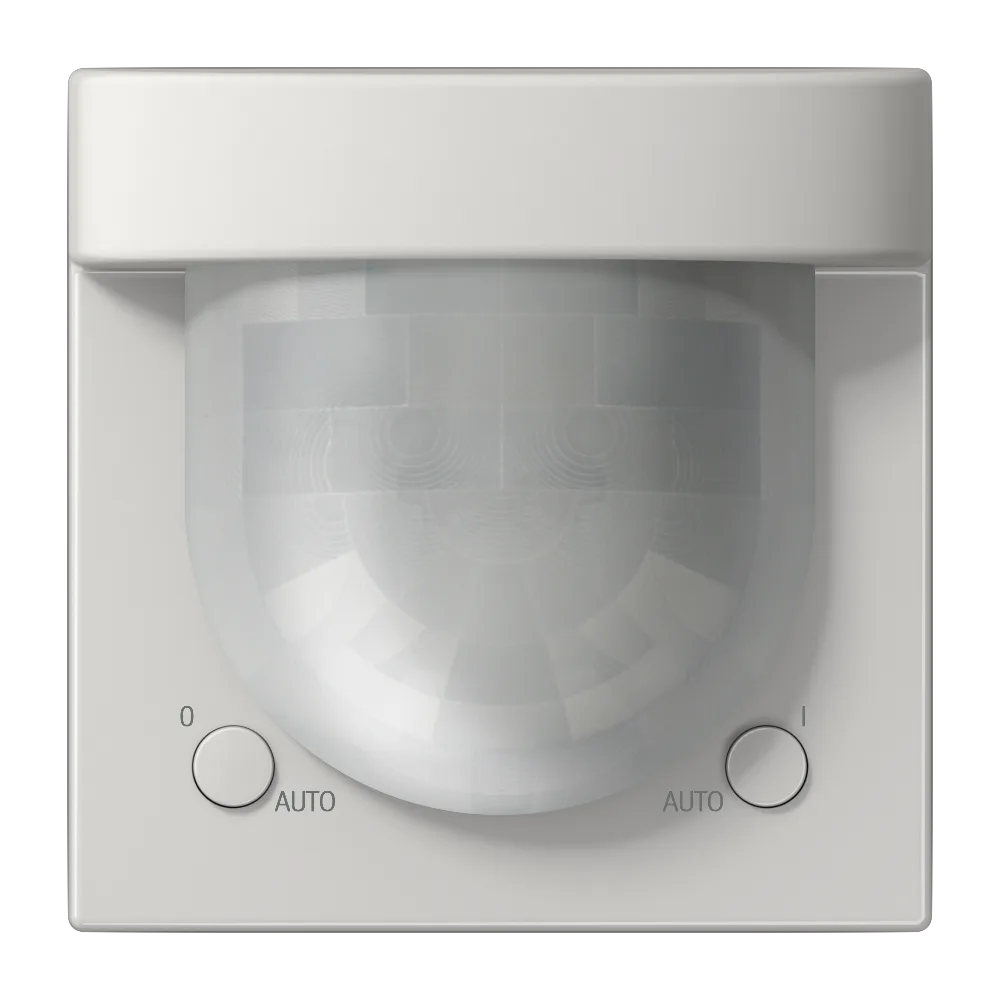

Standard automatic switch 2.2 m
Retail Price
262,930 ₸
Made to order from Germany
Characteristics
- Article number
- LS 3281 LG
- EAN/GTIN
- 4011377155497
- Colour
- light grey
- Material
- thermoplastic
- Width
- 70 mm
- Height
- 70 mm
Description & specifications
KNX automatic switch 2.2 m Standard Degree of protection IP44 is ensured with sealing kit ref.-no. AS CD 50 DS and "IP44 frame" of the respective design range. IP44 suitable only for interiors
Intended use
Product characteristics
- Requirement-oriented control of lighting and other electrical loads
- Automatic switching of lighting depending on the thermal movement and ambient brightness
- 2 PIR sensors
- Detection range 180°
- Integrated brightness sensor
- Switch-off brightness can be set
- Output functions: Switching, staircase lighting function, switching with forced position, value transmitter, light scene extension, operating mode setting for room temperature controller
- Extension of the detection area by way of operating several devices as main unit or extension unit
- Sensitivity can be set manually
- Status LEDs
- Manual switching on the device
Technical data
- Mounting height
- 1.10 / 2.20 m Thermoplastic (breakproof) high-gloss
- Colour
- light grey
Compatible Products
11Frames, rockers, sockets and covers that fit this article. Filter by colour, range or gang count.
Inserts (2)
Cover plates (1)
Frames (1/3)
Color
Logistics
Single Item
- Packaging unit
- 1 pc.
- Weight
- 0.05 KG
- Length
- 85 MM
- Height
- 73 MM
- Width
- 85 MM
Carton
- Packaging unit
- 10 pc.
- Weight
- 0.626 KG
- Length
- 360 MM
- Height
- 90 MM
- Width
- 175 MM
