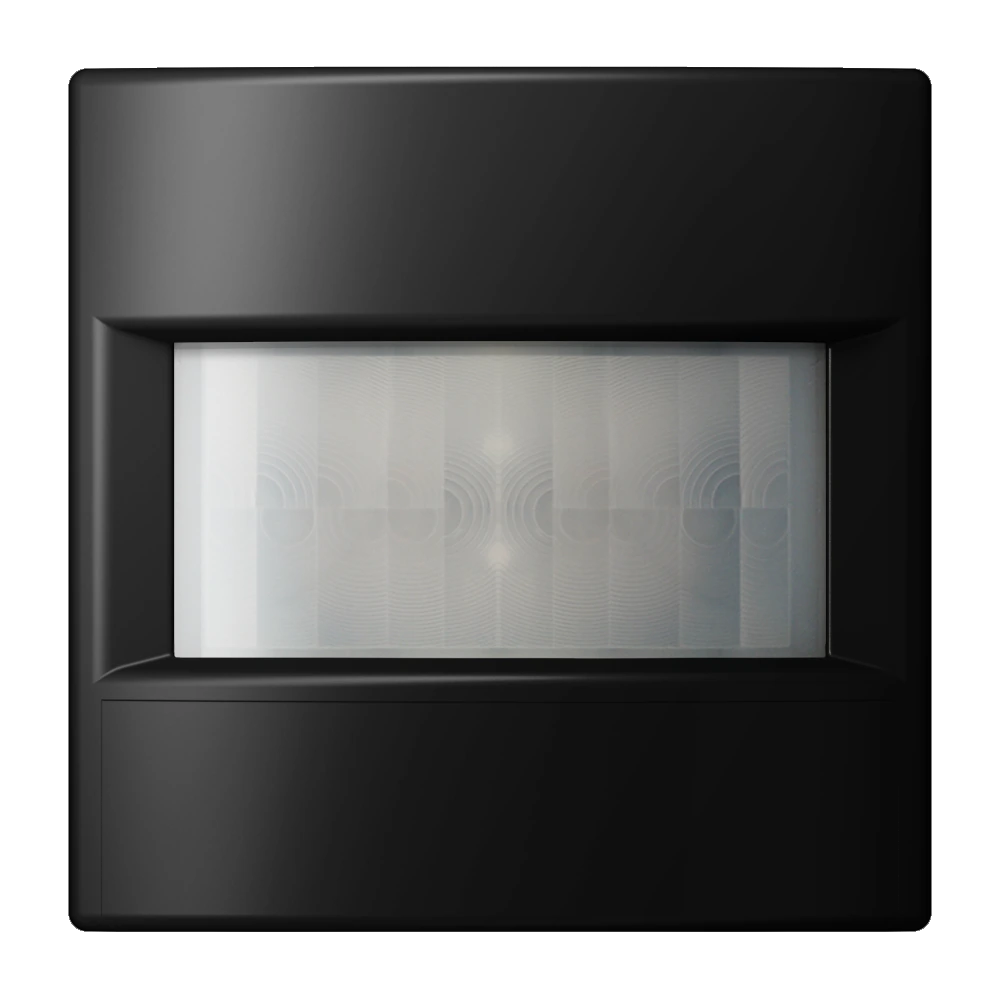

Standard automatic switch 1.1 m
Retail Price
275,765 ₸
Made to order from Germany
Characteristics
- Article number
- LS 3181 SWM
- EAN/GTIN
- 4011377205970
- Colour
- matt graphite black
- Material
- thermoplastic lacquered
- Width
- 70 mm
- Height
- 70 mm
Description & specifications
KNX automatic switch 1.1 m Standard
Intended use
Product characteristics
- Requirement-oriented control of lighting and other electrical loads in interiors
- Automatic switching of lighting depending on the thermal movement and ambient brightness
- 2 PIR sensors
- Detection range 180°
- Integrated brightness sensor
- Switch-off brightness can be set
- Output functions: Switching, staircase lighting function, switching with forced position, value transmitter, light scene extension, operating mode setting for room temperature controller
- Extension of the detection area by way of operating several devices as main unit or extension unit
- Sensitivity can be set manually
- Status LEDs
- Manual switching on the device
- Up to half of the detection area can be screened off (cover or parameter setting)
Technical data
- Current consumption KNX
- 3 ... 10 mA
- Ambient temperature
- −5 ... +45 °C
- Storage/transport temperature
- −25 ... +70 °C
- Relative humidity
- 10 ... 100 % (no condensation)
- Protection class
- III
- Mounting height
- 1.10 m
- Detection angle
- 180° Brightness sensor
- Measuring range
- approx. 1 ... 1,000 lx matt lacquered
- Colour
- matt graphite black
- Material
- thermoplastic lacquered
Compatible Products
9Frames, rockers, sockets and covers that fit this article. Filter by colour, range or gang count.
Cover plates (1)
Frames (1/4)
Color
Logistics
Single Item
- Packaging unit
- 1 pc.
- Weight
- 0.042 KG
- Length
- 70 MM
- Height
- 36 MM
- Width
- 70 MM
Carton
- Packaging unit
- 1 pc.
- Weight
- 0.088 KG
- Length
- 84 MM
- Height
- 72 MM
- Width
- 84 MM
Outer Carton
- Packaging unit
- 10 pc.
- Weight
- 1.006 KG
- Length
- 360 MM
- Height
- 90 MM
- Width
- 175 MM
