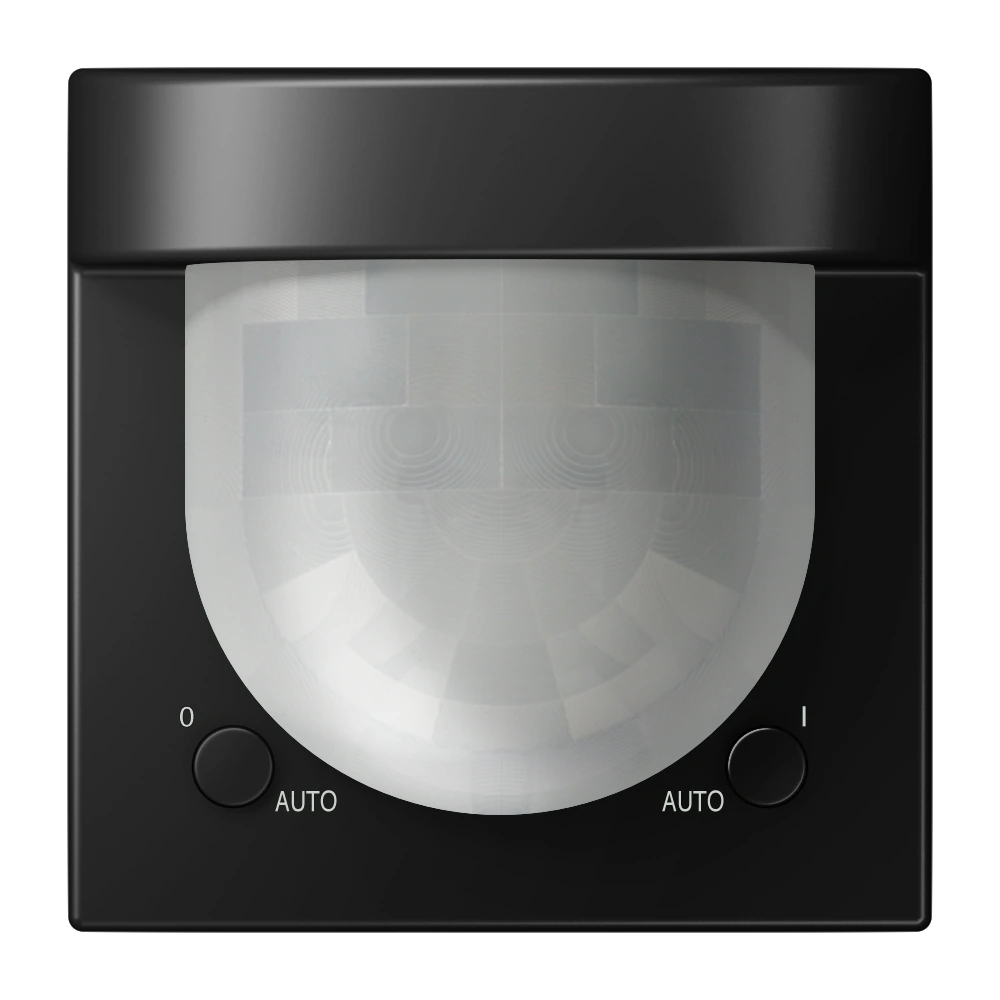

Universal automatic switch 2.2 m

KNX automatic switch 2.2 m Universal Degree of protection IP44 is ensured with sealing kit ref.-no. AS CD 50 DS and "IP44 frame" of the respective design range. IP44 suitable for installation in interiors and exteriors

Intended use

Product characteristics

Additional characteristics of "Universal" version:

• Requirement-oriented control of lighting and other electrical loads
• Automatic switching of lighting depending on the thermal movement and ambient brightness
• 2 PIR sensors
• Detection range 180°
• Integrated brightness sensor
• Switch-off brightness can be set
• Output functions: Switching, staircase lighting function, switching with forced position, value transmitter, light scene extension, operating mode setting for room temperature controller
• Extension of the detection area by way of operating several devices as main unit or extension unit
• Sensitivity can be set manually
• Status LEDs
• Manual switching on the device
• Up to half of the detection area can be screened off (parameter setting)
• 5 function blocks for motion detection each with 2 outputs
• Function blocks switchable, e.g. for day/night operation
• Brightness sensor function with 3 limiting values
• Alarm message in case the device is removed from the bus coupling unit
• Temperature measurement
