LS 990·LS2178WW

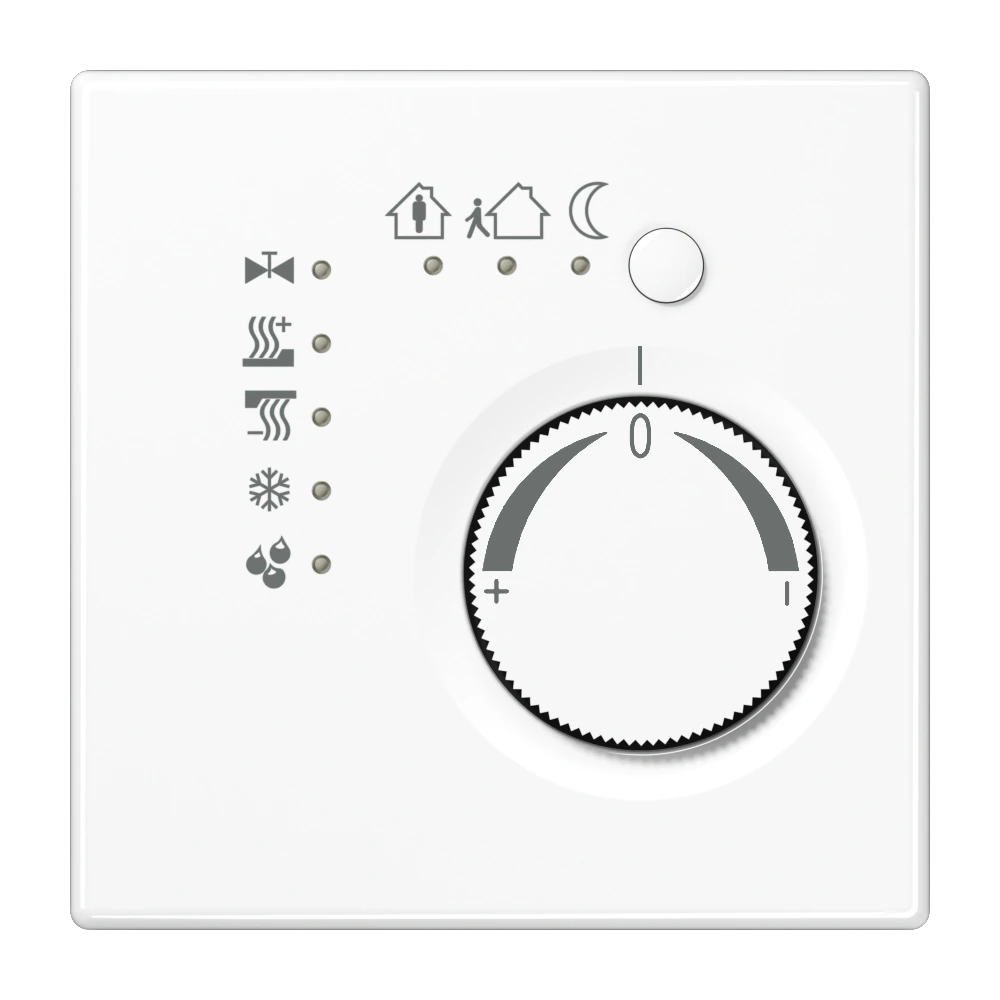

Room temperature controller

Name: Room temperature controller
Brand: JUNG
SKU: LS2178WW
Price: 470950 KZT
Availability: BackOrder

Retail Price

470,950 ₸

Made to order from Germany

Characteristics

Article number: LS 2178 WW
EAN/GTIN: 4011377021433
Colour: white
Material: thermoplastic
Width: 70 mm
Height: 70 mm

Description & specifications

KNX room temperature controller with rotary knob for setpoint adjustment Only with the ETS 3.0d version or later versions the full functionality will be available.

Intended use

Product characteristics

Single-room temperature control in KNX installations
Installation in flush box with dimensions according to DIN 49073
Integrated bus coupling unit
Measurement of room temperature and comparison with setpoint temperature
Setpoint specification by selection of the operating mode
Operating modes: comfort, standby, night operation, frost/heat protection
Heating and cooling mode
Heating and cooling with basic and additional step
Setpoint adjustment
Presence push-button
Status LEDs

Technical data

KNX medium: TP 256
Rated voltage KNX: DC 21 ... 32 V SELV
Current consumption KNX: max. 10 mA
Connection, KNX: connection terminal
Ambient temperature: −5 ... +45 °C
Storage/transport temperature: −25 ... +70 °C Thermoplastic (breakproof) high-gloss
Colour: white
Material: thermoplastic
