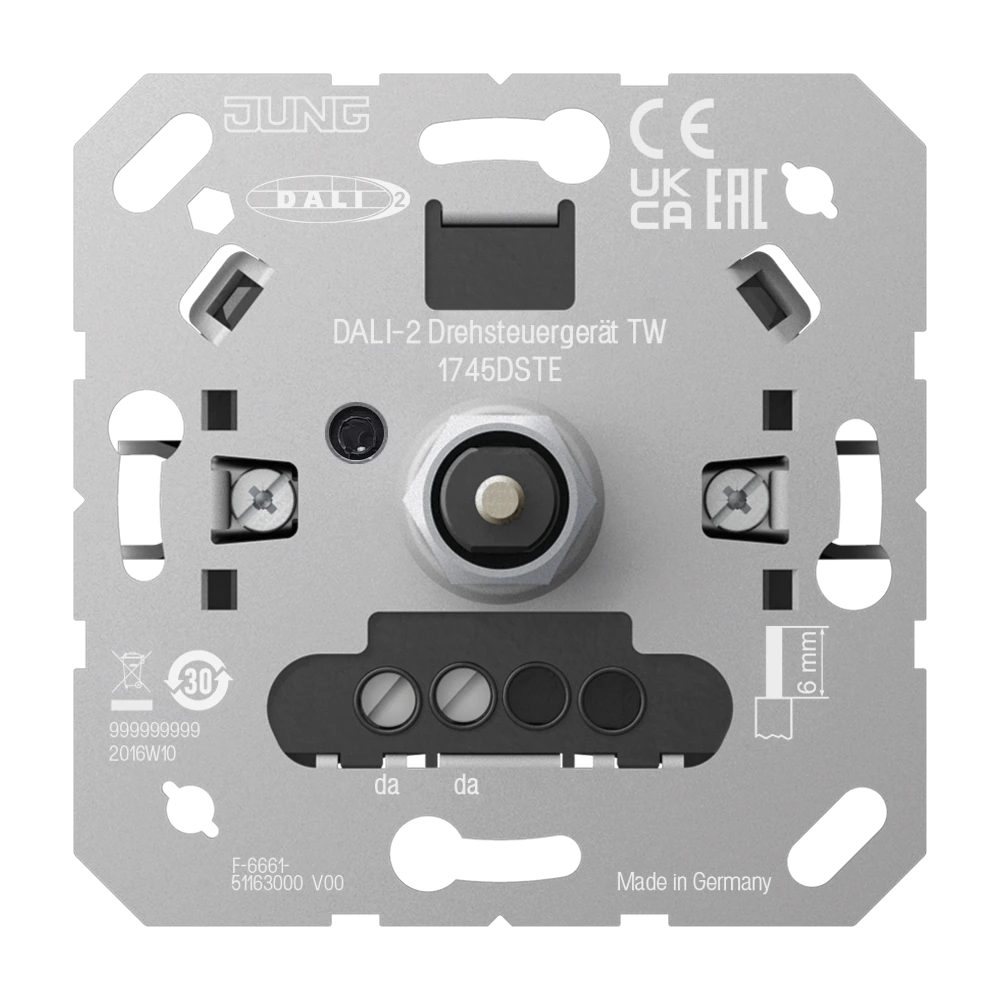

DALI-2 rotary controller TW

DALI-2 rotary controller TW multi-master capable

Intended use

Product characteristics without programming

Further product characteristics through programming via DALI-2 control commands

• Brightness setting for luminaires with DALI interface
• Setting of colour temperature for luminaires with DALI Device Type 8 for tunable white acc. to IEC 62386-209
• Rotary controller (input device) for higher-level DALI-2 controllers
• Installation in flush box with dimensions according to DIN 49073
• Certified DALI-2 control device acc. to IEC 62386-101, 103, 301, 302
• The DALI rotary controller TW takes power from the DALI voltage, which must be supplied by an external DALI power supply in accordance with IEC 62386-101.
• Multi-master capable: several control devices can be installed as application controllers in a DALI system
• LED for device localization
• Saving of basic brightness and switch-on brightness
• Saving of colour temperature limiting values
• Suitable as a rotary controller (input device) for connection to central DALI-2 controllers
• Supports four DALI-2 instances for adaptation to central control
• Can be used to control a DALI-2 group
• Cyclical transmission of control commands to DALI operating devices can be activated
