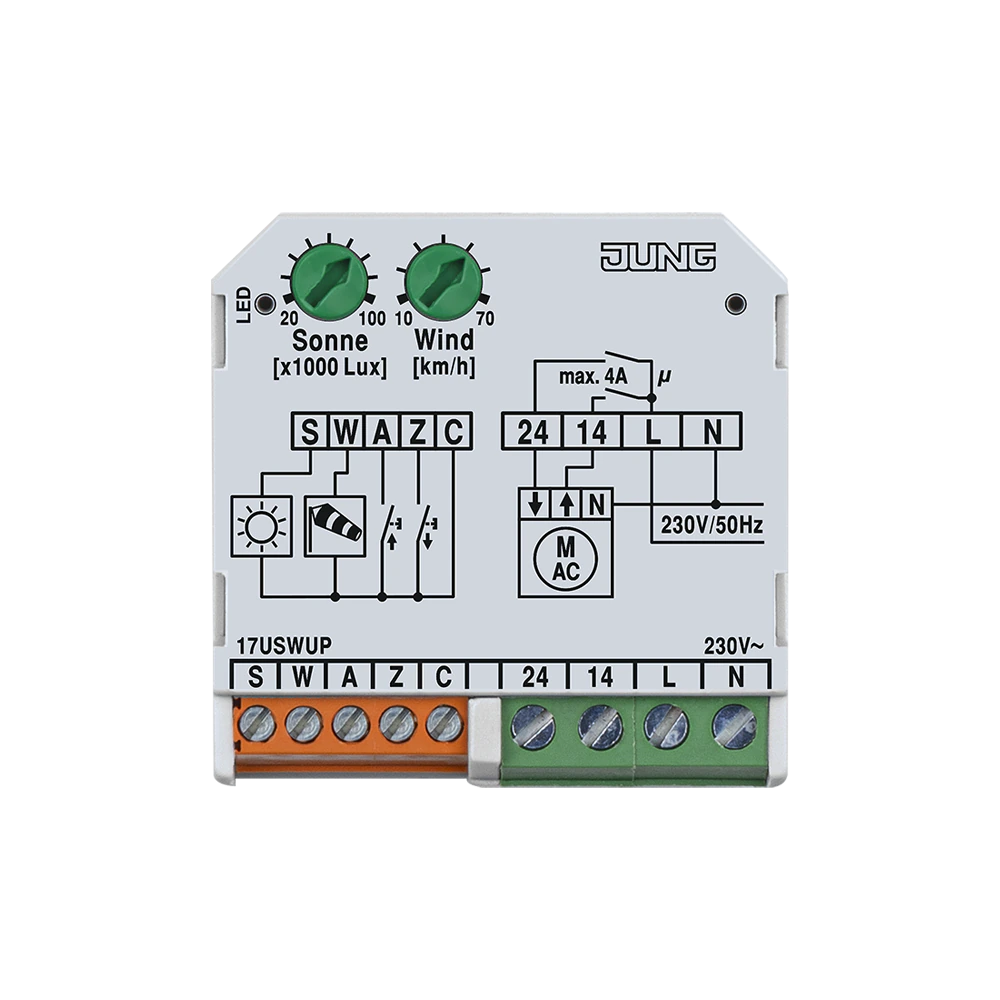

Converter sun / wind
Retail Price
258,840 ₸
Made to order from Germany
Characteristics
- Article number
- 17 USW UP
- EAN/GTIN
- 4011377360754
Description & specifications
Converter sun / wind Product characteristics
- Adjuster for threshold value "brightness"
- Adjuster for threshold value "wind force"
- Red LED: wind speed exceeded
- Green LED: brightness exceeded
- Integrated power supply for sensors
- Manual operation possible with 2-gang push-button
- Group control with universal blinds insert
- Integration into JUNG HOME via binary inputs
Technical data
- Rated voltage
- AC 230 V ~
- Mains frequency
- 50/60 Hz
- Power consumption
- 0.66 W Wind
- Measuring range
- 20,000 ... 100,000 lx
- Switching hysteresis
- 40 %
- Switch-on delay
- 1 … 15 s (dynamic) Sun (brightness)
- Switch-on delay "sun"
- 10 min (1 … 60 min adjustable)
- Motor running time
- 90 s (1 … 240 s adjustable)
- Relay switching pause
- 0.6 s
- Relay output
- 2 NO contacts, 4 A / 250 V ~
- Power supply for sensor
- DC 3.3 V (PELV) Connection AC
- Connection mode
- screw terminals
- single wire
- 1 x 0.25 ... 1.5 mm²
- stranded without ferrule
- 1 x 0.25 ... 1.5 mm²
- Dimensions (W x H x D)
- 43 x 43 x 18.5 mm
- Ambient temperature
- −10 ... +45 °C
Compatible Products
3Frames, rockers, sockets and covers that fit this article. Filter by colour, range or gang count.
Logistics
Single Item
- Packaging unit
- 1 pc.
- Weight
- 0.063 KG
- Length
- 43 MM
- Height
- 19 MM
- Width
- 43 MM
Carton
- Packaging unit
- 1 pc.
- Weight
- 0.063 KG
- Length
- 82 MM
- Height
- 45 MM
- Width
- 82 MM
