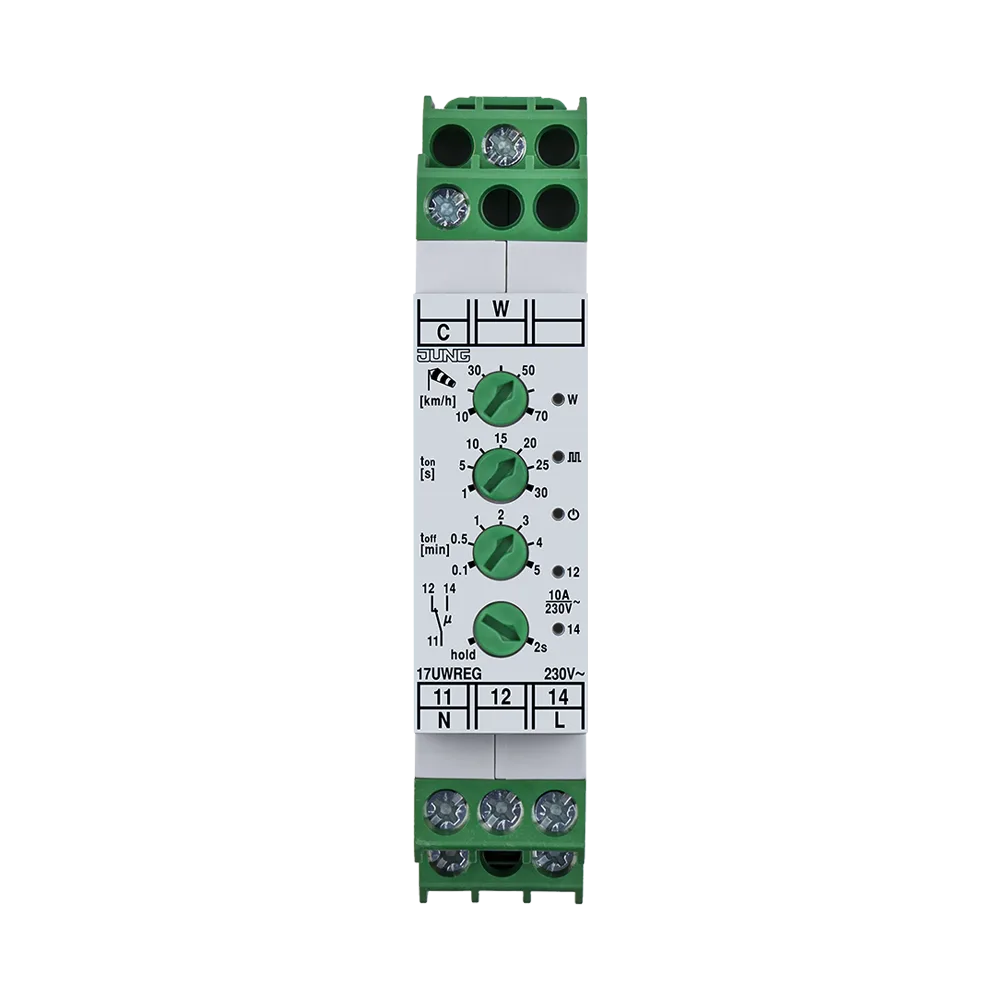

Converter wind
Retail Price
216,545 ₸
Made to order from Germany
Characteristics
- Article number
- 17 UW REG
- EAN/GTIN
- 4011377360778
Description & specifications
Converter wind rail mounting device, 1 rail unit Product characteristics
- Adjuster for threshold value "wind force"
- Adjuster for switch-on delay
- Adjuster for switch-off delay
- Operating mode switch (2-second pulse or permanent)
- LED "W": wind speed exceeded
- LED "pulse": current wind pulses
- LED "12": status indication relay output 12
- LED "14": status indication relay output 14
- Integrated power supply for sensors
- Group control with universal blinds insert
- Integration into JUNG HOME via binary inputs
Technical data
- Rated voltage
- AC 230 V ~
- Mains frequency
- 50/60 Hz
- Power consumption
- 0.6 W Wind
- Measuring range
- 10 ... 70 km/h
- Switching hysteresis
- 25 %
- Switch-on delay
- 1 … 30 s (dynamic)
- Switch-off delay
- 6 ... 300 s (adjustable)
- Relay output
- 1 floating 2-way contact, 10 A / 250 V ~
- Power supply for sensor
- DC 3.3 V (PELV) Connection
- Connection mode
- screw terminals
- single wire
- 1 x 0.5 ... 4.0 mm² 2 x 0.5 ... 2.5 mm²
- stranded without ferrule
- 1 x 0.5 ... 4.0 mm²2 x 0.5 ... 2.5 mm²
- stranded with ferrule
- 1 x 0.5 ... 4.0 mm²2 x 0.5 ... 1.5 mm²
- Mounting width
- 18 mm (1 rail unit)
- Ambient temperature
- −10 ... +45 °C
Compatible Products
3Frames, rockers, sockets and covers that fit this article. Filter by colour, range or gang count.
Logistics
Single Item
- Packaging unit
- 1 pc.
- Weight
- 0.063 KG
- Length
- 89 MM
- Height
- 59 MM
- Width
- 18 MM
Carton
- Packaging unit
- 1 pc.
- Weight
- 0.098 KG
- Length
- 95 MM
- Height
- 46 MM
- Width
- 95 MM
