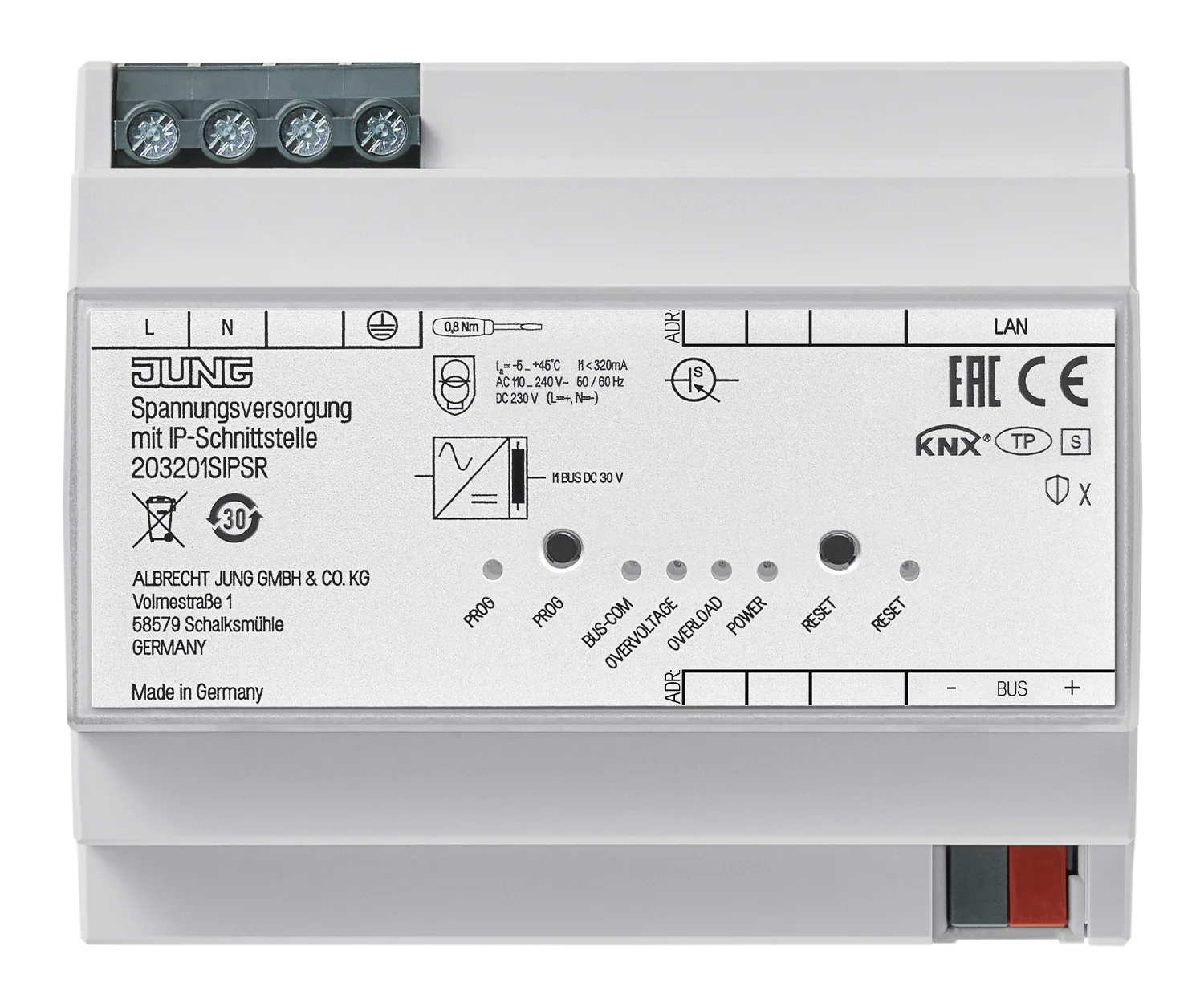

Power supply with IP interface

KNX power supply 320 mA with IP interface rail mounting device, 6 rail units project design and commissioning with ETS5 or a more recent version

Intended use

Product characteristics

• Supplying KNX devices with bus voltage
• Connection between KNX devices and PC or other data processing devices via IP
• Operation as data interface
• Mounting on DIN rail according to EN 60715 in distribution box
• Output with integrated choke for supplying KNX bus lines
• Reset of KNX lines via reset button or communication object
• Short-circuit proof
• Overvoltage proof
• No-load protection
• KNX Data Secure compatible with ETS 5.7.3 or higher
• KNX IP Secure compatible with ETS 5.7.3 or higher
• LED display for KNX communication, Ethernet communication and programming mode
• Configuration via ETS
• SNTP server
• Max. 8 connections to IP terminal devices, e.g. for simultaneous visualisation and configuration
• Electrical isolation between KNX and IP network

• Presence control: with key card holder or presence detector
• Welcome/Goodbye scenes

Requirements for administered networks

• Encrypted access to KNX devices for configuration and maintenance outside the local network
• Enabling access via communication objects
• Feedback on access and programming processes via communication objects
• TCP port 3672 for the IP device
• TCP port 3671 for the PC with ETS
• DNS address 9.9.9.9 with static network (for NTP server)
• Remote host access: ipsremote.jung.de
