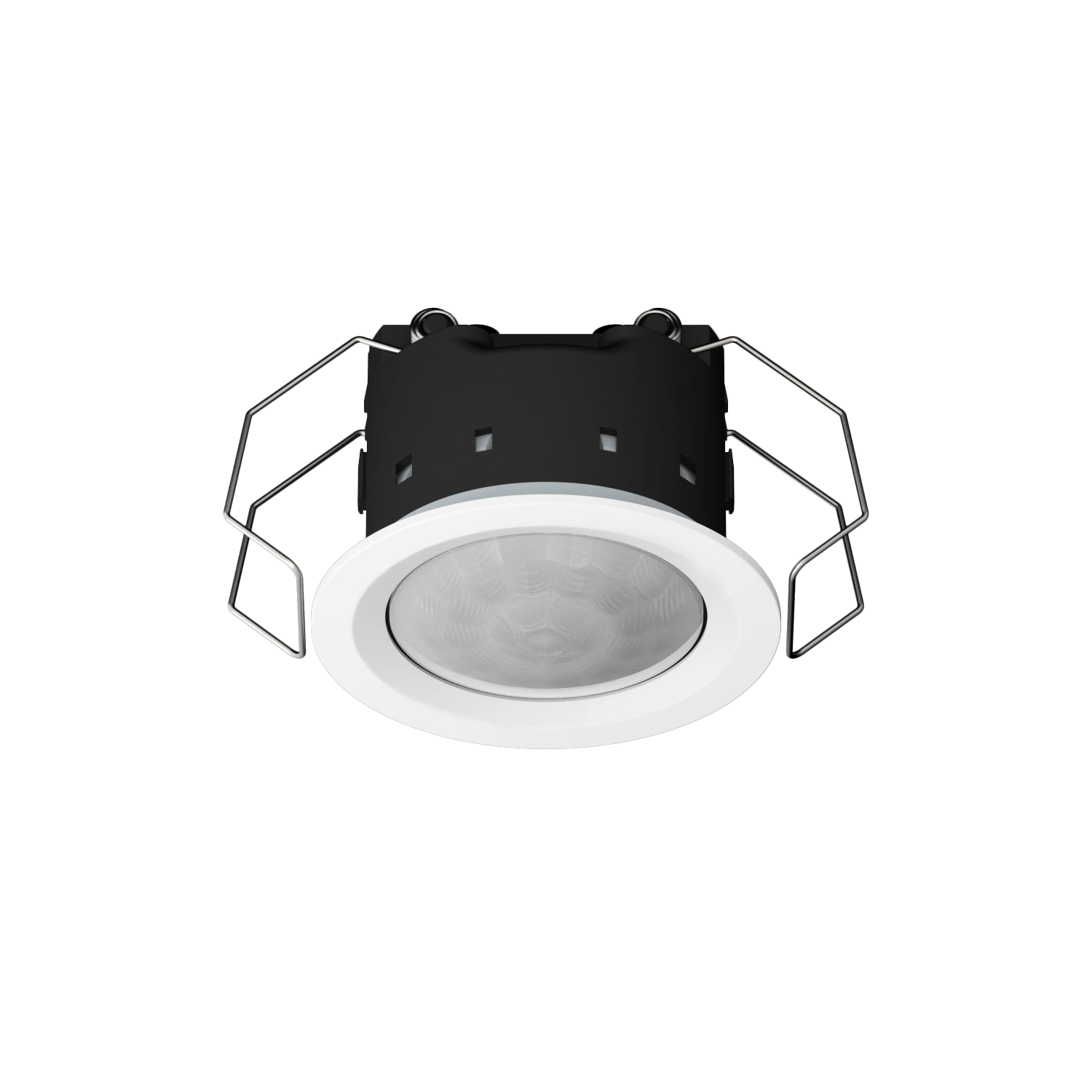

Brightness controller mini
Retail Price
207,740 ₸
Made to order from Germany
Characteristics
- Article number
- 2096 LUX
- EAN/GTIN
- 4011377127517
- Colour
- white
- Installation depth
- 35 mm
Description & specifications
KNX brightness controller mini
Intended use
SET-WW) Product characteristics
- Measurement and control of lighting in interiors or in protected exteriors
- Clamp mounting in suspended ceilings
- Ceiling installation on fixed ceilings in flush box with dimensions according to
- Asymmetrical measuring surface
- Integrated bus coupling unit
- Integrated brightness sensor
- Brightness sensor function with 3 limiting values
- Brightness limiting values (3 channels) with output functions switching, value transmitter and scene extension
- Daylight-dependent light control with max. 3 channels, setpoint adjustment during operation, separate configuration of dimming-up, control and dimming-down phase
- On-off control possible for switch actuators
- Power supply via bus voltage
Technical data
- KNX medium
- TP 256
- Rated voltage KNX
- DC 21 ... 32 V SELV
- Current consumption KNX
- max. 10 mA
- Connection, KNX
- connection terminal
- Protection class
- III
- Ambient temperature
- −25 ... +55 °C
- Storage/transport temperature
- −25 ... +70 °C
- Relative humidity
- 10 ... 100 % (no condensation)
- Degree of protection
- IP44
- Ceiling cut-out (Ø x D)
- 44 x 35 mm
- Dimensions (Ø x H)
- 53.5 x 38 mm (with design ring)
- Max. thickness of the suspended ceiling
- approx. 25 mm
- Installation depth
- 35 mm Distance between concrete ceiling and
- suspended ceiling
- min. 20 mm
- Design ring Ø inside
- 36.6 mm
- Design ring Ø outside
- 53.5 mm
- Height above surface, design ring
- 3 mm
- Height above surface, lens
- 5.5 mm Brightness measurement
- Measuring range
- 10 ... 2,000 lx
- Accuracy (> 80 lx)
- ± 5 %
- Accuracy (≤ 80 lx)
- ± 10 lx Degree of protection IP44 is ensured.
