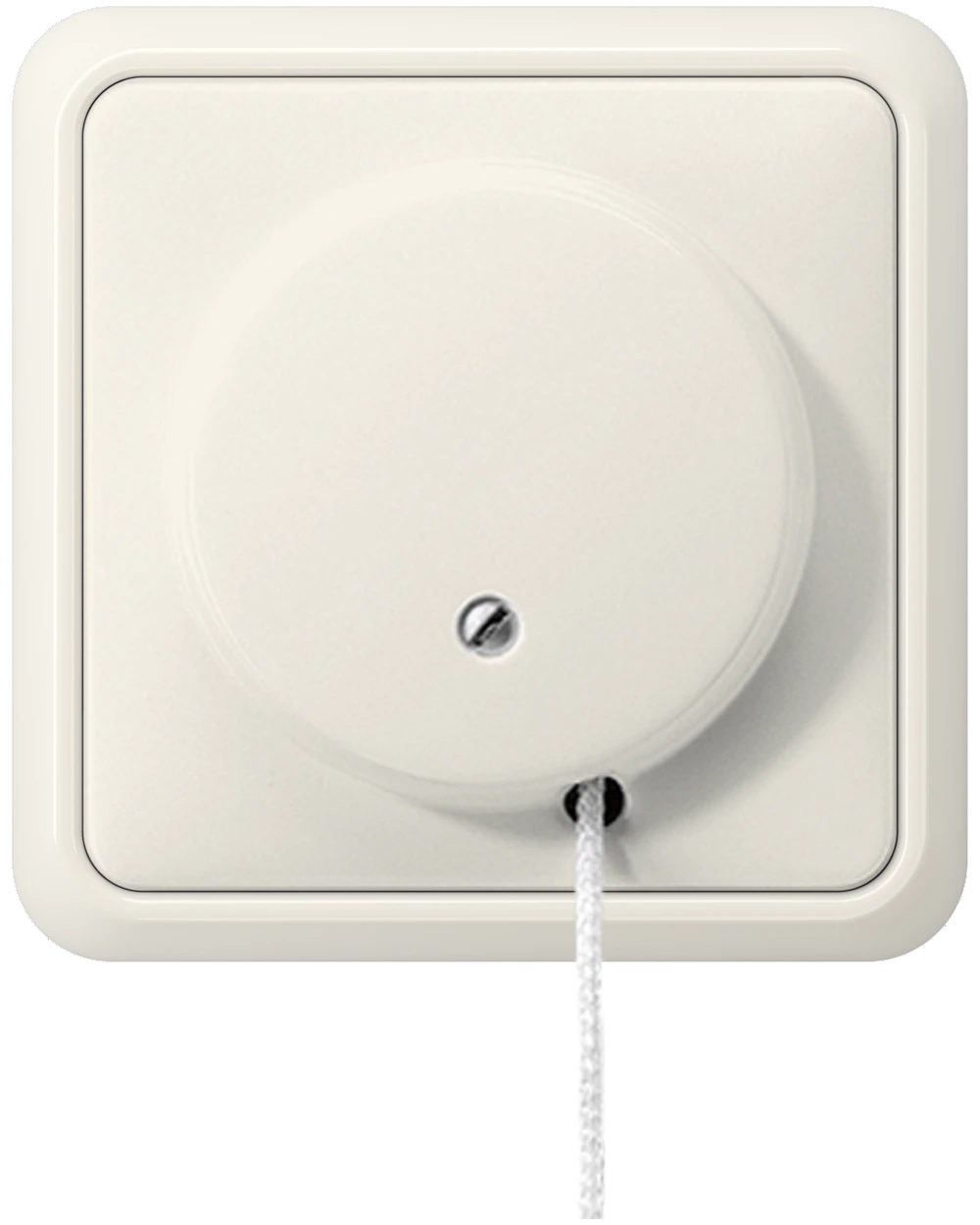

2-way pull cord switch
Retail Price
35,215 ₸
Made to order from Germany
Frame included — no separate frame needed
Characteristics
- Article number
- 5506 ZU
- EAN/GTIN
- 4011377277601
- Colour
- ivory
- Power SBL (self-ballasted lamps)
- max. 100 W
- Width
- 81 mm
- Height
- 81 mm
Description & specifications
2-way pull cord switch 10 AX / 250 V ~ with integrated frame for wall and ceiling installation with screw terminals for rigid and flexible wires up to 2.5 mm2 with 50 mm pull cord Pull cord push-button for wall mounting can be realised with: push-button 531 U, pull cord insert 34 and rocker CD 590 KO.. or with push-button 531 U, pull cord insert 34 KO5 and rocker CD 590 KO5.. Duroplastic (scratch-proof) glossy
Individual colour printing possible
Technical data
- Colour
- ivory
- Power SBL (self-ballasted lamps)
- max. 100 W
- Material
- duroplastic
Other Colors
1
What fits this frame
7Rockers and sockets of the range that fit this frame — in its colour by default. Change the colour in the filter for another finish.
Sockets (6/7)
10S23L
3-gang SCHUKO® socket · screw terminals
22,995 ₸
10S23LA
3-gang SCHUKO® socket · screw terminals
22,995 ₸
1510NKIUZV
Socket without earth with contact protection · screwless terminals
12,100 ₸
1510NUZV
Socket without earth · screwless terminals
8,590 ₸
521ABCEINS
insert · screw terminals
22,320 ₸
521ZNAUF
SCHUKO® socket with surge voltage protection · screw terminals · illuminated
253,420 ₸
Logistics
Single Item
- Packaging unit
- 1 pc.
- Weight
- 0.12 KG
- Length
- 80 MM
- Height
- 50 MM
- Width
- 80 MM
Carton
- Packaging unit
- 10 pc.
- Weight
- 1.314 KG
- Length
- 294 MM
- Height
- 114 MM
- Width
- 174 MM
Palette
- Packaging unit
- 1600 pc.
- Weight
- 286.832 KG
- Length
- 1200 MM
- Height
- 1476 MM
- Width
- 800 MM
