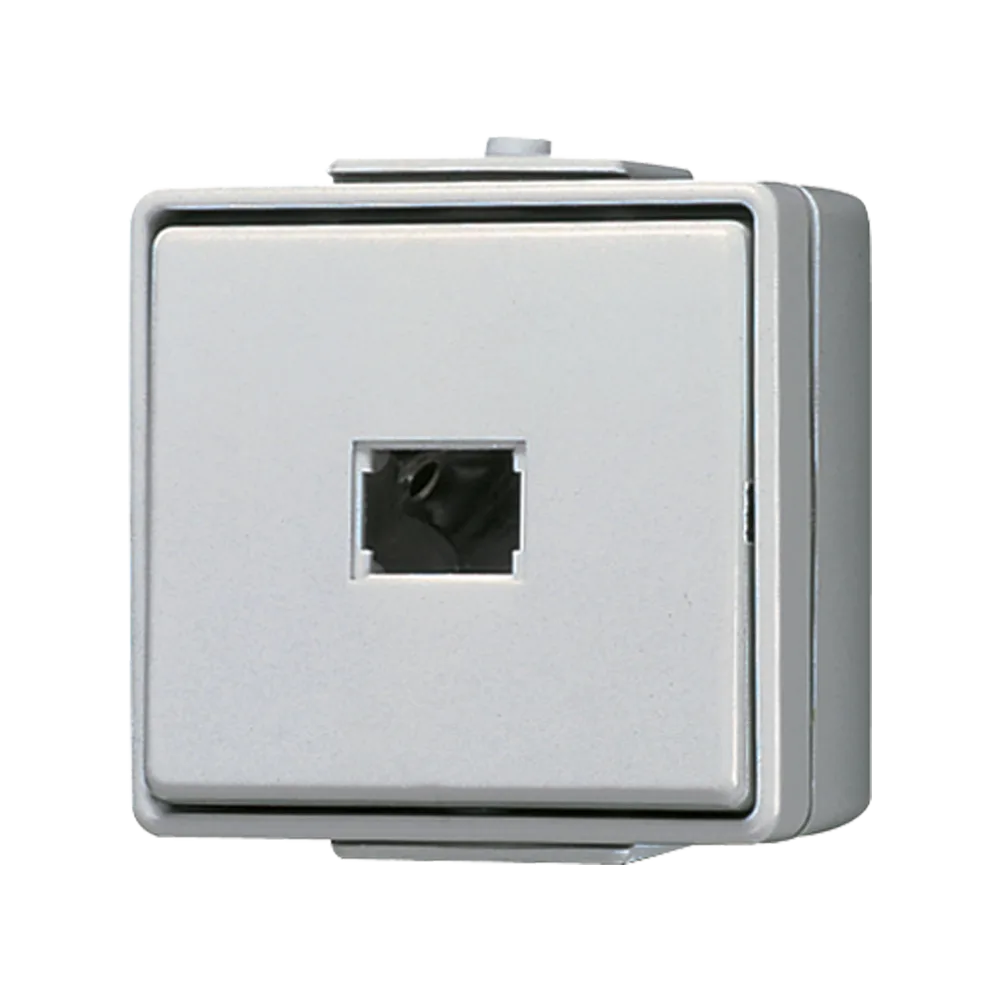

1-gang push-button 1-pole 10 A / 250 V ~ (without lens)

1-gang push-button 10 A / 250 V ~ (without lens) with screwless terminals for rigid wires up to 2.5 mm2 Illumination possible with lamp ref.-no. 90/95 (230 V), 96-.. (low voltage), or LED lamp ref.- no. 90-LED.. (230 V) or 961248 LED.. (low voltage).

Notice! Installation only by persons with relevant electrical knowledge and experience!*) Use only with original JUNG product components approved for this article. By inappropriate installation you endanger • your own life, • the life of the user of the electrical appliance. By inappropriate installation you risk a high loss by damage, e.g. risk by fire. You assume personal liability in cause of injury to persons or damage of appliances. Please contact a skilled electrician! *) Required technical knowledge for installation: For installation, especially the following technical knowledge is required: •

verify parts are free of voltage, ground and short-circuit, cover or block off adjacent live parts • select adequate tools, measuring devices and personal protective equipment • evaluate measuring results • selection of the electrical installation material to secure switch-off conditions • IP protection levels • installation of the electrical installation material • type of electric power grid (TN system, IT system, TT system) and the resultant connection terms (common grounding, protective ground, required additional action etc.)

Degree of protection IP44 is ensured.
