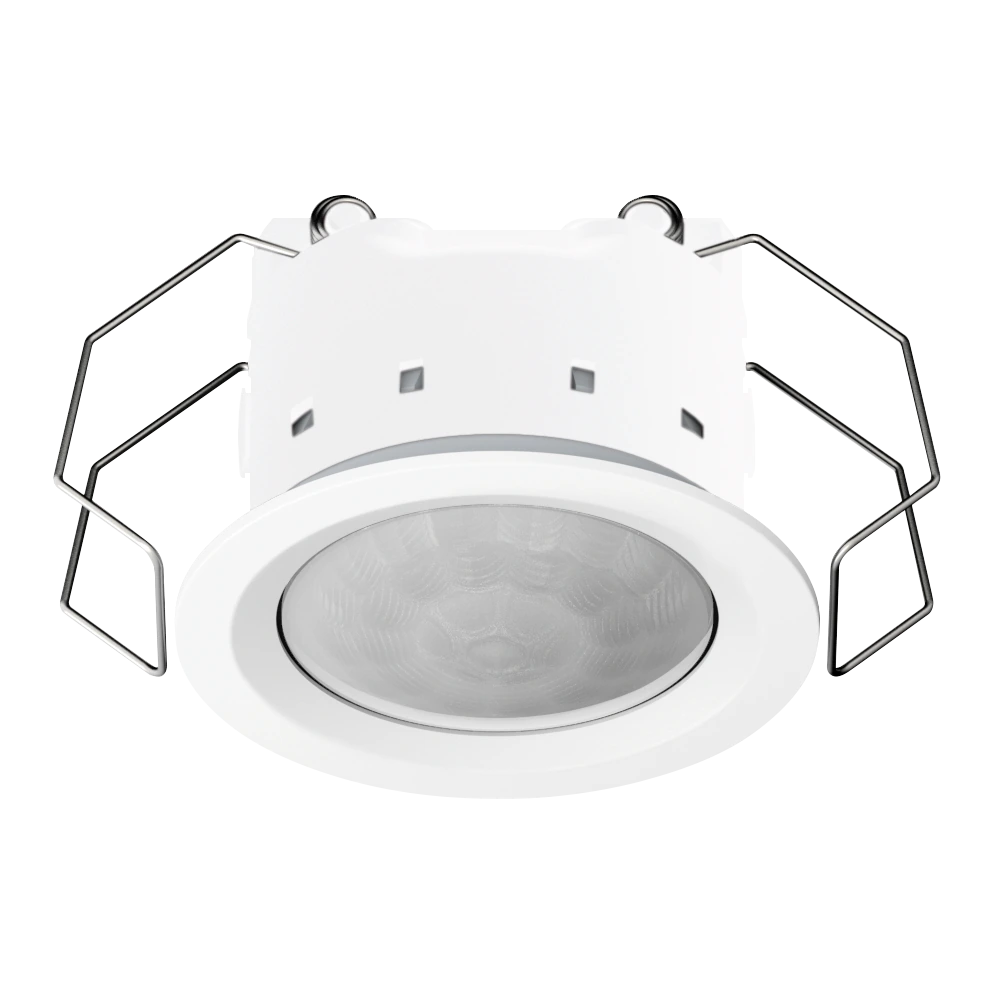

Presence detector mini universal

KNX presence detector mini

Intended use

SET-WW) Product characteristics

Additional characteristics of "Universal" version:

• Requirement-oriented control of lighting, room thermostats and other electrical loads in interiors
• Clamp mounting in suspended ceilings
• Ceiling installation on fixed ceilings in flush box with dimensions according to
• Integrated bus coupling unit
• 3 PIR sensors
• Detection field 360°
• Integrated brightness sensor
• Deployed as presence detector, motion detector, or for alert operation
• Output functions: Switching, staircase lighting function, switching with forced position, value transmitter, light scene extension, operating mode setting for room temperature controller
• Extension of the detection area by way of operating several devices as main unit or extension unit
• Adjuster for manual adjustment of sensitivity
• Status LED: Flashes during motion detection; depending on programming in normal operation or only during the walking test mode
• 5 function blocks for motion detection each with 2 outputs
• Function blocks switchable, e.g. for day/night operation
• PIR sensors can be evaluated separately
• Brightness sensor function with 3 limiting values
• Daylight-dependent light control with max. 3 channels, setpoint adjustment during operation, separate configuration of dimming-up, control and dimming-down phase
• Light control can be combined with presence detector function
• Temperature measurement

• Detection of the smallest motions e.g. at a workplace for detecting the presence of persons
• Switch on: Motion detection and brightness threshold not reached
• Switch off: No motion in the detection field and run-on time elapsed or brightness threshold exceeded

• Motion detection for passageways in buildings
• Switch on: Motion detection and brightness threshold not reached
• Switch off: No motion in the detection field and run-on time elapsed or brightness threshold exceeded brightness.

After reacting and switching on, the motion detection works independently of the

• Brightness-independent detection of motions in the detection field
• Switch on: After detection of an adjustable number of motions within the set monitoring period
• Switch off: No motion in the detection field and run-on time elapsed
