Cinch Audio (RCA)
Retail Price
89,820 ₸
Made to order from Germany
Characteristics
- Article number
- MA AL 1021 AN
- EAN/GTIN
- 4011377071117
- Colour
- anthracite (aluminium lacquered)
- Material
- aluminium laquered
Description & specifications

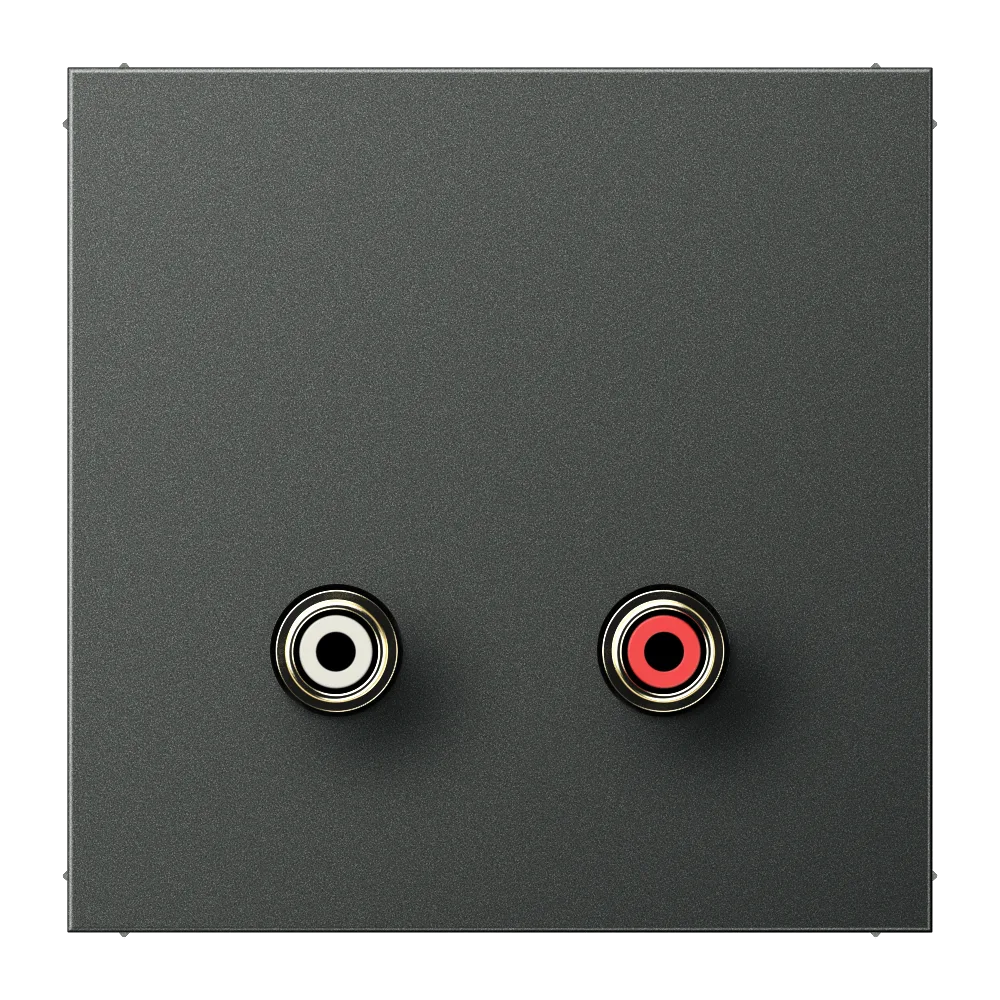

Cinch Audio (RCA) (with supporting frame, screw fixing only)
Technical data
- Rated voltage
- DC 50 V
- Frequency range
- 20 Hz ... 20 kHz
- Contact resistance
- ≤ 20 mΩ
- Insulation resistance
- ≥ 100 MΩ
- Electric strength
- AC 500 V ~ (50/60 Hz) at 1 min 2 mA
- Insertion and removal forces
- 3 ... 25 N
- Insertion/removal cycles
- ≥ 1000
- Terminal
- white (left) 180° red (right) 180°
- Contact material
- gold-plated
- Installation depth
- 14 mm
- Ambient temperature
- −5 ... +45 °C
- Installation note
- Installation into deep wall box Metal versions
- Colour
- anthracite (aluminium lacquered)
- Material
- aluminium lacquered Individual colour printing possible Individual laser engraving possible
Other Colors
1
Compatible Products
15Frames, rockers, sockets and covers that fit this article. Filter by colour, range or gang count.
Logistics
Single Item
- Packaging unit
- 1 pc.
- Weight
- 0.083 KG
- Length
- 85 MM
- Height
- 73 MM
- Width
- 85 MM
Carton
- Packaging unit
- 1 pc.
- Weight
- 0.083 KG
- Length
- 85 MM
- Height
- 73 MM
- Width
- 85 MM
