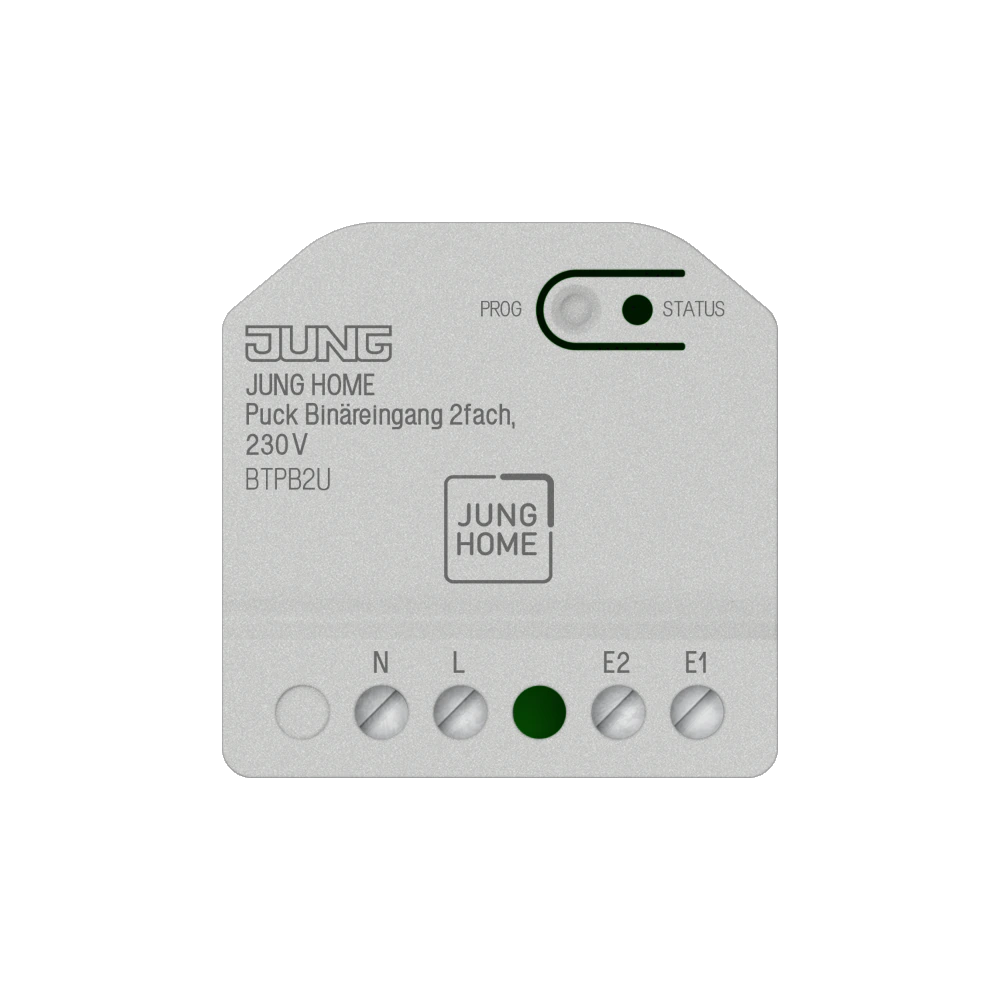

JUNG HOME Puck binary input 2-gang, 230 V ~
Retail Price
93,515 ₸
Made to order from Germany
Characteristics
- Article number
- BT P B2 U
- EAN/GTIN
- 4011377360068
- Installation depth
- 18 mm (20 mm in the terminal area)
Description & specifications
JUNG HOME Puck binary input 2-gang, 230 V ~ Available December 2025
Intended use
Product characteristics
Bluetooth®
- Connection of devices (e.g. push-buttons, switches or weather sensors) to the binary inputs for triggering scenes, operating electrical loads, polling of statuses, etc.
- Wireless linking with JUNG HOME system devices
- Installation in flush box with dimensions according to DIN 49073
- Commissioning using JUNG HOME app with mobile device (smartphone or tablet) via
- Free linking of the 2 binary inputs with JUNG HOME actuators (wireless)
- Multi-coloured status indicator and Prog button for commissioning
- Disabling the Prog button
- Wind alarm via connection of weather sensors to binary inputs
- Trigger the disabling function using binary inputs, e.g. lock-out protection with shutters and blinds, forced guidance, etc.
- Bluetooth® Mesh for fully encrypted wireless communication and repeater function
- Can be updated using JUNG HOME app
Technical data
- Rated voltage
- AC 230 V ~
- Mains frequency
- 50/60 Hz
- Input voltage
- AC 230 V ~
- Stand-by power
- max. 0.2 W
- Ambient temperature
- −5 ... +45 °C
- Storage temperature
- −5 ... +45 °C
- Transport temperature
- −20 ... +70 °C
- Relative humidity
- 20 ... 70 % (no condensation) Cable length
- Binary input
- max. 50 m
- Dimensions (W x H x D)
- 46 x 46 x 20 mm
- Installation depth
- 18 mm (20 mm in the terminal area)
- Radio frequency
- 2402.0 ... 2480.0 MHz
- Transmitting power
- max. 10 mW (class 1.5) Transmission range
- in buildings
- approx. 30 m
Compatible Products
3Frames, rockers, sockets and covers that fit this article. Filter by colour, range or gang count.
Logistics
Single Item
- Packaging unit
- 1 pc.
- Weight
- 0.056 KG
- Length
- 82 MM
- Height
- 45 MM
- Width
- 82 MM
Carton
- Packaging unit
- 10 pc.
- Weight
- 0.658 KG
- Length
- 235 MM
- Height
- 92 MM
- Width
- 175 MM
Outer Carton
- Packaging unit
- 100 pc.
- Weight
- 6.82 KG
- Length
- 460 MM
- Height
- 245 MM
- Width
- 360 MM
Palette
- Packaging unit
- 2000 pc.
- Weight
- 158.4 KG
- Length
- 1200 MM
- Height
- 1550 MM
- Width
- 800 MM
