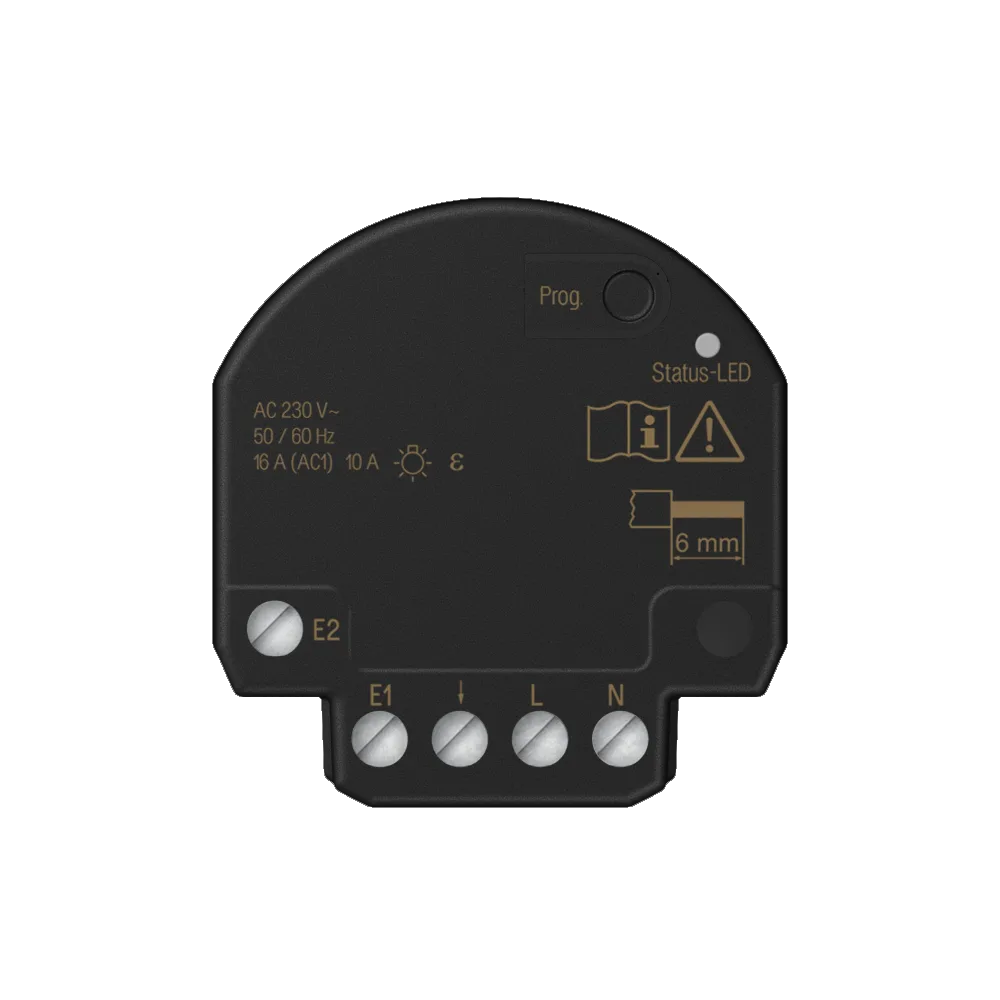

JUNG HOME switch actuator 1-gang mini with 2 binary inputs
Retail Price
105,735 ₸
Made to order from Germany
Characteristics
- Article number
- BT S1 B2 U
- EAN/GTIN
- 4011377202801
Description & specifications
JUNG HOME switch actuator 1-gang mini with 2 binary inputs
Intended use
JUNG HOME sensors and JUNG HOME app
Product characteristics
(smartphone or tablet) via Bluetooth®
- Manual and automatic switching of lighting and common household devices
- Operation via binary inputs of the JUNG HOME actuator, JUNG HOME push-button,
- Connection of devices (e.g. push-buttons, switches or weather sensors) to the binary inputs for triggering scenes, operating electrical loads, polling of statuses, etc.
- Wireless linking with JUNG HOME system devices
- Installation in flush box with dimensions according to DIN 49073
- Commissioning and operation using JUNG HOME app with mobile device
- Free linking of the 2 binary inputs with JUNG HOME actuators (local or wireless)
- Independent use of actuator functions and binary inputs
- Multi-coloured status indicator and Prog button for commissioning
- Disabling the Prog button
- Including the load in areas (groups), central functions and scenes
- Up to 16 time programs
- Staircase lighting function (automatic switch-off) with switch-off warning
- Run-on time, switch-on delay, switch-off delay
- Disabling function and forced guidance: Continuous ON/OFF or ON/OFF for fixed time
- Trigger the disabling function using binary inputs, e.g. lock-out protection with shutters and blinds, forced guidance, etc.
- Activate/deactivate automatic functions using the JUNG HOME app
- Automatic date and time update when connecting with mobile device
- Time programs with sunrise or sunset (astro timer)
- Wind alarm via connection of weather sensors to binary inputs
- Bluetooth® Mesh for fully encrypted wireless communication and repeater function
- Can be updated using JUNG HOME app
Technical data
- Rated voltage
- AC 230 V ~
- Mains frequency
- 50/60 Hz
- Input voltage
- AC 230 V ~
- Stand-by power
- max. 0.2 W
- Power loss
- max. 4 W
- Ambient temperature
- −5 ... +45 °C
- Storage temperature
- −5 ... +45 °C
- Transport temperature
- −25 ... +70 °C
- Relative humidity
- 20 ... 70 % (no condensation) Switching current at 35 °C
- Ohmic
- 16 A (AC1)
- Motors
- 6 A
- Installation depth
- 20 mm
- Accuracy per month
- ± 13 s
- Power reserve
- min. 4 h Connected load at 35 °C
- Incandescent lamps
- 2300 W
- HV halogen lamps
- 2300 W
- Electronic transformers
- 1500 W
- Inductive transformers
- 1000 VA
- HV LED lamps
- typical 400 W
- Compact fluorescent lamps
- typical 400 W
- Fluorescent lamps non-compensated
- 920 VA Reduction of load
- for every 5 °C exceededing 35 °C
- −5 % for installation into wooden or hollow
- walls
- −15 %
- for installation into multiple combinations
- −20 % Cable length
- Output cable
- max. 100 m
- Binary input
- max. 50 m
- Dimensions (L x W x H)
- 48 x 51 x 20 mm
- Radio frequency
- 2402.0 ... 2480.0 MHz
- Transmitting power
- max. 10 mW (class 1.5) Transmission range
- in buildings
- approx. 30 m
