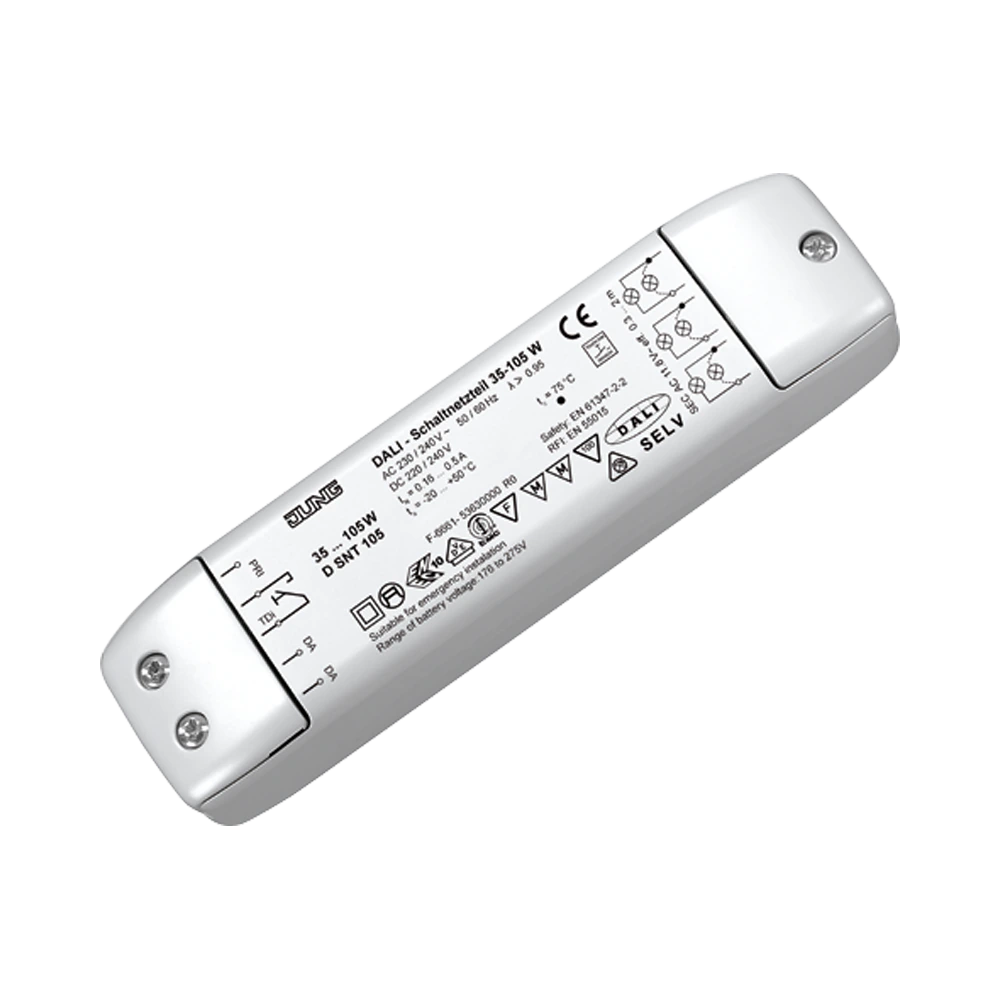

DALI transformer 35-105 W
Retail Price
158,555 ₸
Made to order from Germany
Characteristics
- Article number
- D SNT 105
- EAN/GTIN
- 4011377051867
Description & specifications
DALI transformer for LV halogen lamps
Intended use
Product characteristics
- Power supply for 12 V halogen lamps
- Switching and brightness adjustment is performed with DALI control units or push- buttons
- Ceiling installation or surface mounting
- No-load protection
- Electronic short-circuit protection
- Electronic overload protection
- Electronic over-temperature protection
- Suitable for operation in systems with emergency power supply
Technical data
- Rated capacity
- 35 ... 105 W
- Rated voltage
- AC 230 ... 240 V ~
- Mains frequency
- 50/60 Hz
- Output voltage
- 11.5 V eff. ~ 40 kHz
- Short-circuit protection
- electronic protection without fuse
- Output cable length
- max. 2 m
- Dimensions
- 170 x 44 x 34 mm
- Ambient temperature
- max. 50 °C
- Terminals
- screw terminals primary 1 x 0.5 ... 1.5 mm² secondary 1 x 0.75 ... 2.5 mm²
- Approvals
- VDE
Compatible Products
1Frames, rockers, sockets and covers that fit this article. Filter by colour, range or gang count.
Accessories (1)
Logistics
Single Item
- Packaging unit
- 1 pc.
- Weight
- 0.222 KG
- Length
- 170 MM
- Height
- 34 MM
- Width
- 44 MM
Carton
- Packaging unit
- 1 pc.
- Weight
- 0.222 KG
- Length
- 216 MM
- Height
- 54 MM
- Width
- 52 MM
Certifications
