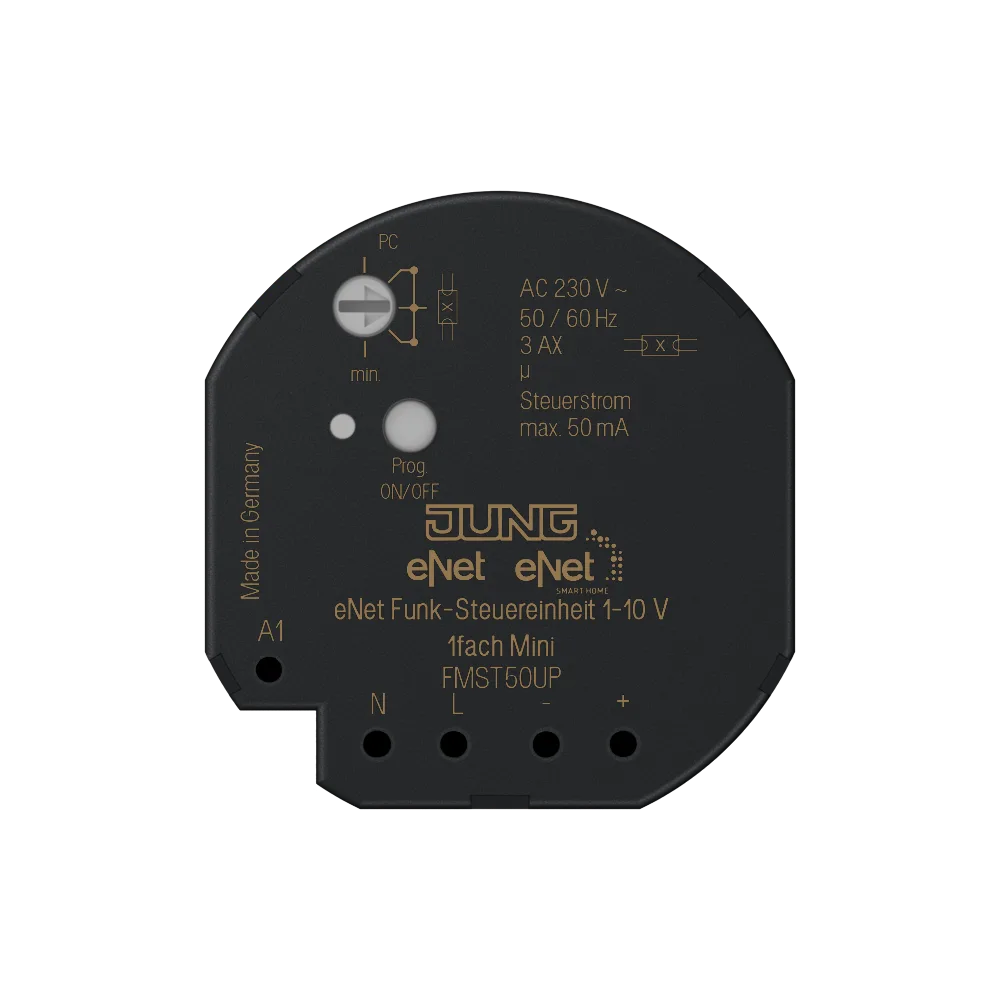

eNet radio push-button controller 1-10 V 1-gang mini

eNet radio push-button controller 1-10 V 1-gang mini

Intended use

Product characteristics

• Switching and brightness setting of luminaires with 1-10 V interface
• Operation with suitable eNet radio transmitters a suitable cover
• Mounting in surface-mounted housing or mounting adapter (ref.-no. FM-EBG) for false ceilings
• Switch-on brightness can be saved permanently
• Minimum brightness can be saved permanently
• Scene operation possible
• Status indication of the 1-10 V subscribers via LED
• Status feedback to radio transmitter
• 1-10 V subscribers switchable with Prog button
• 1-10 V interface is protected against reverse polarity

• Maximum brightness
• Dimming speed
• Switch-on delay / switch-off delay
• Dim up/dim down ramp
• Switch-off warning
• Operating locks
• Continuous on, Continuous off
• Hotel function
• Run-on time

• Fully-encrypted radio transmission (AES-CCM) from eNet server software version 2.0
• Update of the device software
• Repeater function
• Reading of error memory
