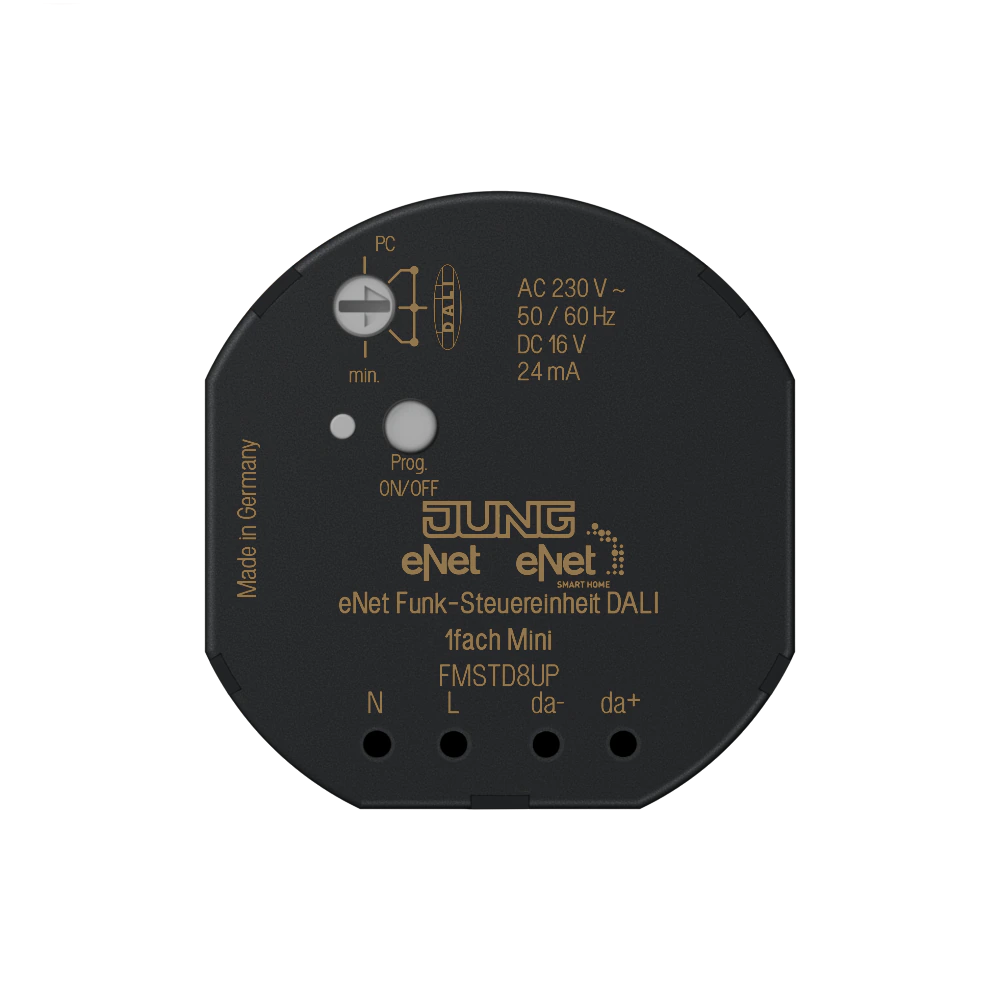

eNet radio DALI gateway 1-gang mini

Intended use

Product characteristics

72 DALI subscribers

• Switching and brightness setting for luminaires with DALI interface
• Operation with suitable eNet radio transmitters a suitable cover
• Mounting in surface-mounted housing or mounting adapter (ref.-no. FM-EBG) for false ceilings
• Joint operation of all the connected DALI ballasts (broadcast)
• Electronic short-circuit protection of the DALI supply with permanent switch-off after
• Electronic over-temperature protection of the DALI supply with self-retain
• DALI supply for a maximum of 12 DALI subscribers
• Parallel switching of up to 6 DALI control units with the option of supplying up to
• Switch-on brightness can be saved permanently
• Minimum brightness can be saved permanently
• Scene operation possible
• Status indication with LED
• Status feedback to radio transmitter
• DALI ballast is switchable with Prog button

• Maximum brightness
• Dimming speed
• Switch-on delay / switch-off delay
• Dim up/dim down ramp
• Switch-off warning
• Operating locks
• Continuous on, Continuous off
• Hotel function
• Run-on time

• Fully-encrypted radio transmission (AES-CCM) from eNet server software version 2.0
• Update of the device software
• Repeater function
• Reading of error memory
