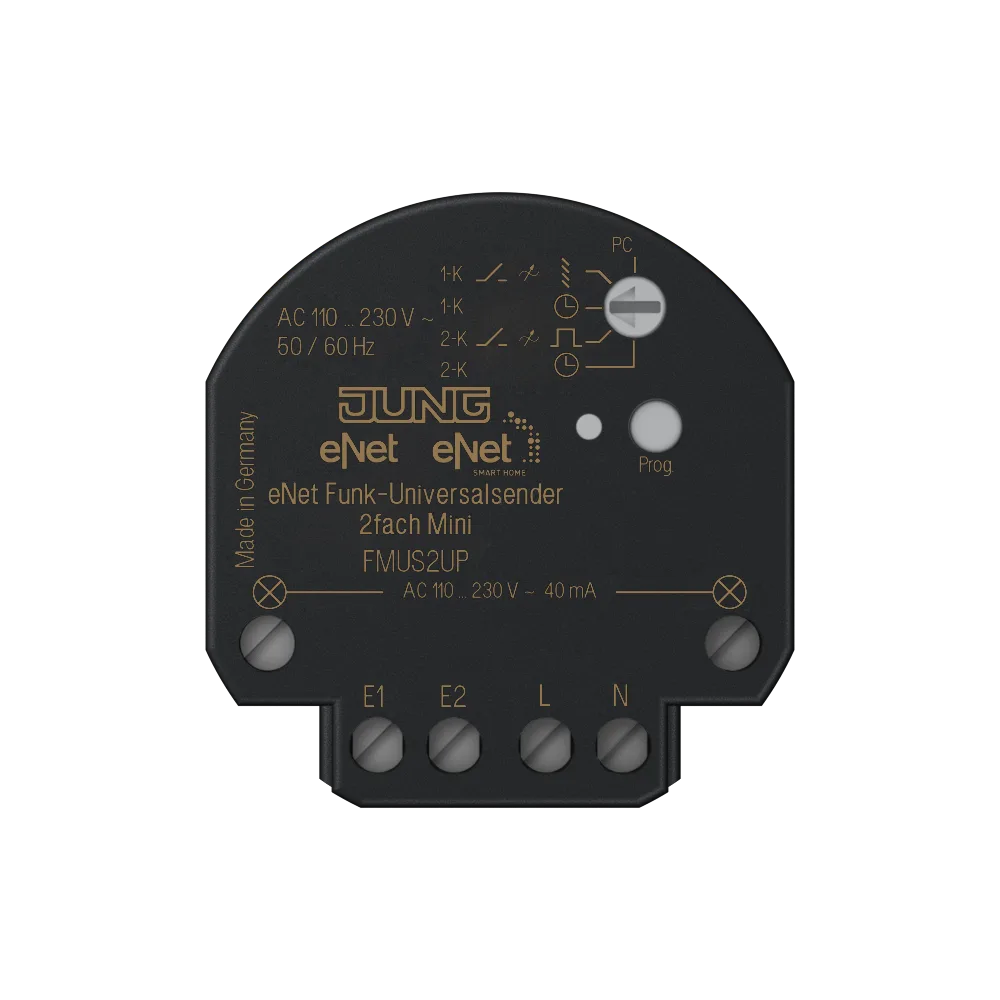

eNet universal radio transmitter 2-gang mini

Intended use

Product characteristics

Operating modes, settable with operating mode switch:

• Transmitter for radio communication of switching, dimming, blind movement and scene commands
• Activation by push-button, switch, blind push-button, blind switch or other devices with push-button contact or switching contact a suitable cover
• Mounting in surface-mounted housing or mounting adapter (ref.-no. FM-EBG) for false ceilings
• Operation with radio actuators from the eNet system
• Detection of voltage levels and changes on the input
• Settable transmission behaviour
• Connection for signal lamp – e.g. for connection of push-buttons with separate signal contact (ref.-no. 534 U)
• Display of transmission status with status LED or signal lamp
• 1-gang switching/dimming/blind
• 1-gang automatic function
• 2-gang switching/dimming/push-button operation
• 2-gang automatic function

Single- and dual-area operation The operation of functions or electrical loads depends on the application and the The operation of the usual switching function follows if switches are connected. Two operating modes are used when push-buttons are connected:

• Fully-encrypted radio transmission (AES-CCM) from eNet server software version 2.0
• Scenes: All On, All Off, individual scenes
• 2-gang blind
• Operating locks
• Setup connections enabled/disabled
• Status for forced guidance
• Repeater function
• Update of the device software connected components.
• Single-area operation - lighting: Switching lighting on or off or dimming it brighter/ darker takes place alternately when the appropriate button is pressed repeatedly.
• Dual-area operation - lighting: Two buttons form a function pair. Pressing the left button switches or dims lighting on or brighter, pressing the right one switches it off or makes it darker.
• Single-area operation - blind: Upward or downward movement takes place alternately when the appropriate button is pressed repeatedly.
• Dual-area operation - blind: Two buttons form a function pair. Pressing the left button moves a blind upwards, pressing the right one moves it downwards.
