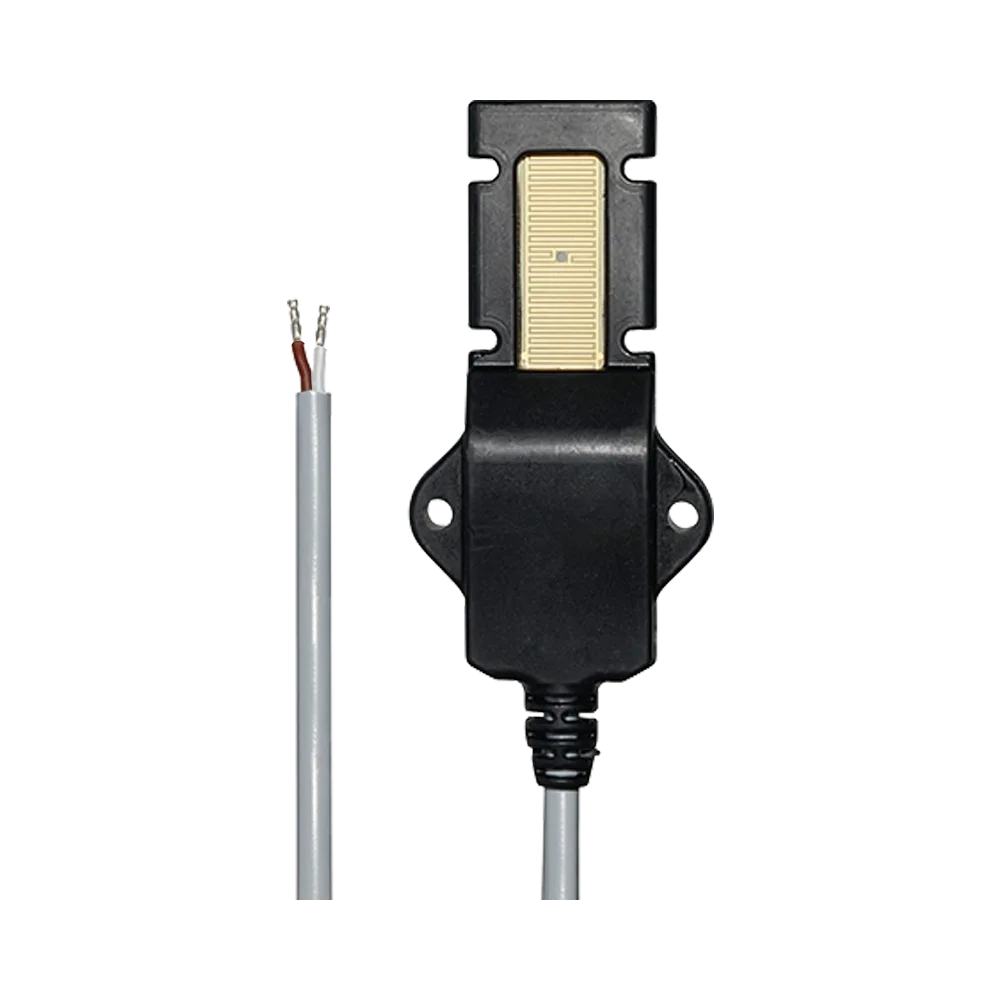

Leakage sensor
Retail Price
156,000 ₸
Made to order from Germany
Characteristics
- Article number
- LES 01
- EAN/GTIN
- 4011377158283
Description & specifications
Leakage sensor
Intended use
(e.g. 23001 1S U, 23002 1S U, 39001 1S U, .. 2178 TS .., .. 2178 ORTS .., 40002 1S E, 40004 1S E, 40008 1S E)
Application examples
- Detection of water penetration and leaks
- Connection to KNX push-button interfaces or other binary inputs with 5 V poll voltage
- Fitting to the surface to be monitored
- Below or next to the bathtub or shower
- Under the kitchen unit
- Below or behind washing machines
- In boiler rooms
- In supply shafts with water pipes
- In cellar rooms with a risk of backflow
- Below or behind aquariums
- In the heating manifold of underfloor heating systems
Technical data
- Rated voltage
- DC 3.3 ... 5 V SELV
- Current consumption
- typical 0.5 mA
- Short-circuit current
- max. 100 mA
- Protection class
- III
- Ambient temperature
- 0 ... +50 °C
- Length of connected cable
- 2 m
- Degree of protection
- IP67 Degree of protection IP67 is ensured.
Compatible Products
2Frames, rockers, sockets and covers that fit this article. Filter by colour, range or gang count.
Logistics
Single Item
- Packaging unit
- 1 pc.
- Weight
- 172 G
- Length
- 132 MM
- Height
- 27 MM
- Width
- 90 MM
Carton
- Packaging unit
- 1 pc.
- Weight
- 172 G
- Length
- 155 MM
- Height
- 84 MM
- Width
- 84 MM
