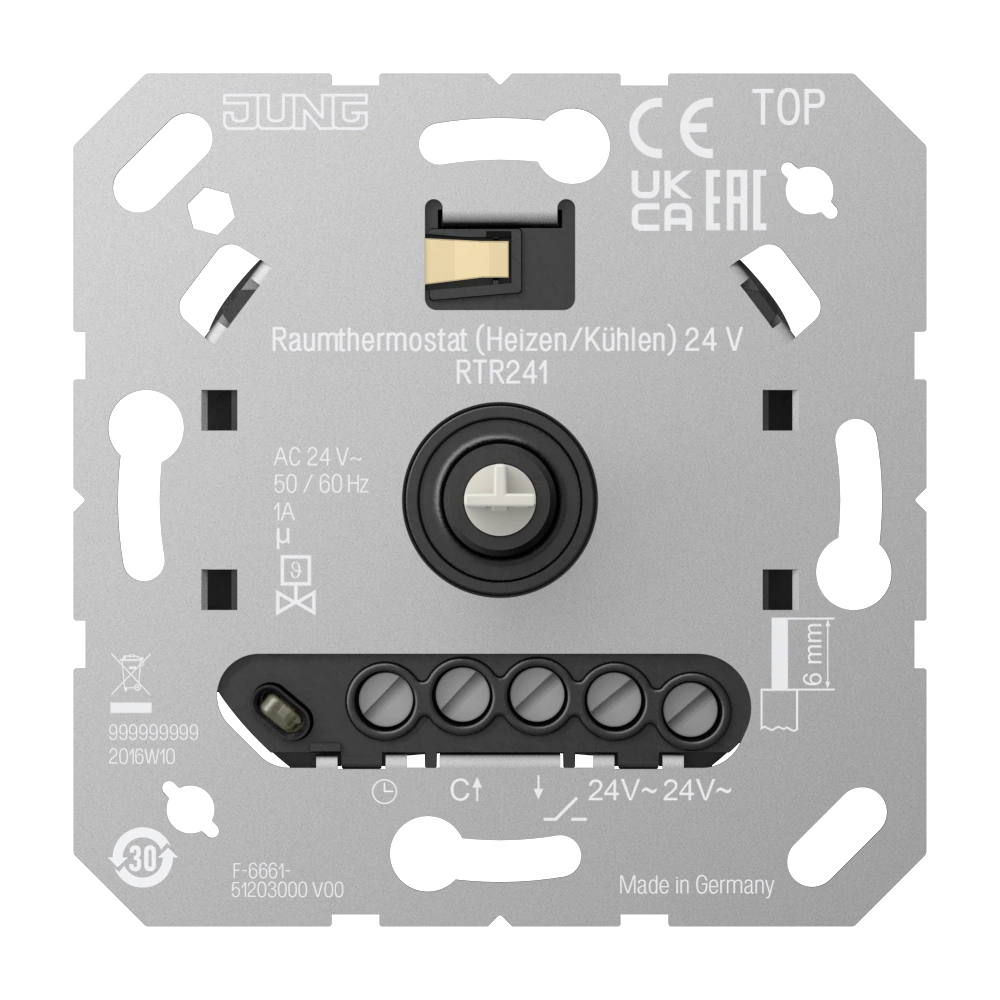

Room thermostat (heating/cooling) 24 V

Room thermostat (heating/cooling) 24 V

Intended use

Product characteristics

• Electronic room thermostat for controlling electrothermal valve drives for AC 24 V (e.
• Room temperature control in enclosed areas
• Installation in flush box with dimensions according to DIN 49073
• Manually setting a comfort temperature
• Temperature limits can be set
• Manually switching off the temperature control
• Cooling mode possible (optimised for heat pumps)
• Input for activation of reduction temperature (ECO) via central clock
• Input for activation of cooling via central control
• Manual activation of cooling
• Internal temperature sensor
• Frost protection function
• Temperature drop detection (call-up of frost protection temperature when window is open)
• Controller output working method: pulse width modulation (PWM) or two-point
• Adaptation to valves (normally open or normally closed)
• Offset adjustment ± 3 °C (correction value for measured temperature)
• Valve protection function (once a week opening and closing of valve)
• Multi-colour status LED
• Continuous operation of LED possible
