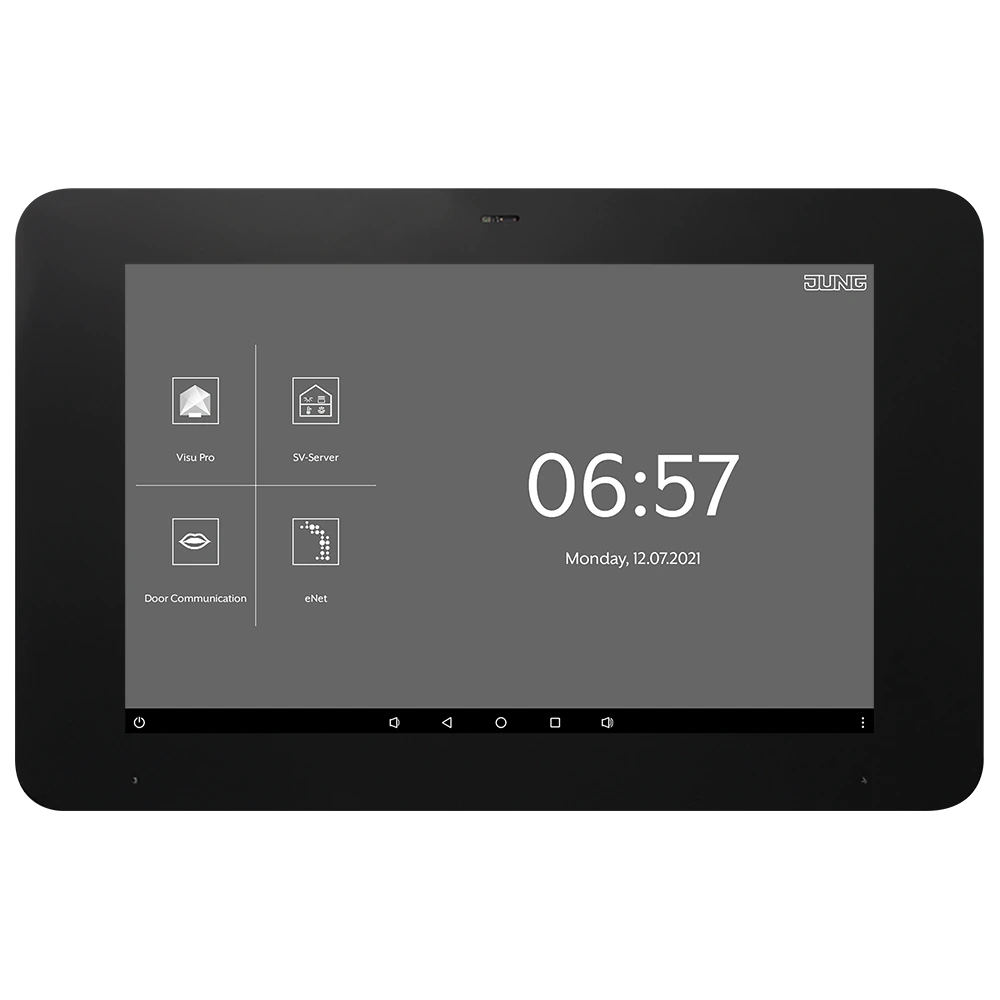

Smart Control 8
Retail Price
1,775,620 ₸
Made to order from Germany
Characteristics
- Article number
- SC 008 1U
- EAN/GTIN
- 4011377206533
- Colour
- black
- Installation depth
- 22 mm
Description & specifications
Intended use
Product characteristics
SERVER) with software version 2.2 or higher SG 650-.. or SG 150-..
- Visualisation and operation of system statuses and information on building automation
- Mounting horizontally (recommended) or vertically
- Mounting in flush-mounted recessed box (ref.-no. EBG 24) or on flush box with dimensions according to DIN 49073 (recommendation: approx. 60 mm deep)
- High performance HD screen
- Proximity sensor
- Capacitive touchscreen
- Cleaning mode with touch screen lock
- Fanless, without rotating parts
- Display of up to six IP camera images
- Image memory integrated in Smart Gateway
Technical data
- Screen diagonal
- 203 mm / 8’’
- Resolution
- 1280 x 800 (WXGA)
- Aspect ratio
- 16:10
- Overall dimensions (W x H)
- 225 x 145 mm
- Height above surface
- 16 mm
- Power consumption
- max. 16 W
- Installation depth
- 22 mm
- Operating system
- Android
- Processor
- Cortex-A53
- Main memory
- 2 GB
- Mass storage
- 16 GB Flash (available disc space depends on operating system)
- Loudspeaker
- integrated
- Microphone
- integrated
- USB ports
- 1 x USB 2.0 type A 1 x Mini-USB OTG
- LAN connections
- 1 x 10/100/1000 Mbit/s
- Ambient temperature
- 0 ... +30 °C
- Atmospheric humidity
- 5 ... 80 % (no condensation)
Compatible Products
3Frames, rockers, sockets and covers that fit this article. Filter by colour, range or gang count.
Logistics
Single Item
- Packaging unit
- 1 pc.
- Weight
- 0.988 KG
- Length
- 236 MM
- Height
- 36 MM
- Width
- 170 MM
Carton
- Packaging unit
- 1 pc.
- Weight
- 0.988 KG
- Length
- 282 MM
- Height
- 78 MM
- Width
- 228 MM
Outer Carton
- Packaging unit
- 11 pc.
- Weight
- 11.583 KG
- Length
- 593 MM
- Height
- 290 MM
- Width
- 395 MM
Palette
- Packaging unit
- 132 pc.
- Weight
- 165 KG
- Length
- 1200 MM
- Height
- 1600 MM
- Width
- 800 MM
