SAT-TV-FM outlet, terminated outlet
Retail Price
40,015 ₸
Made to order from Germany
Characteristics
- Article number
- SSD 5-00
- EAN/GTIN
- 4011377332256
Description & specifications

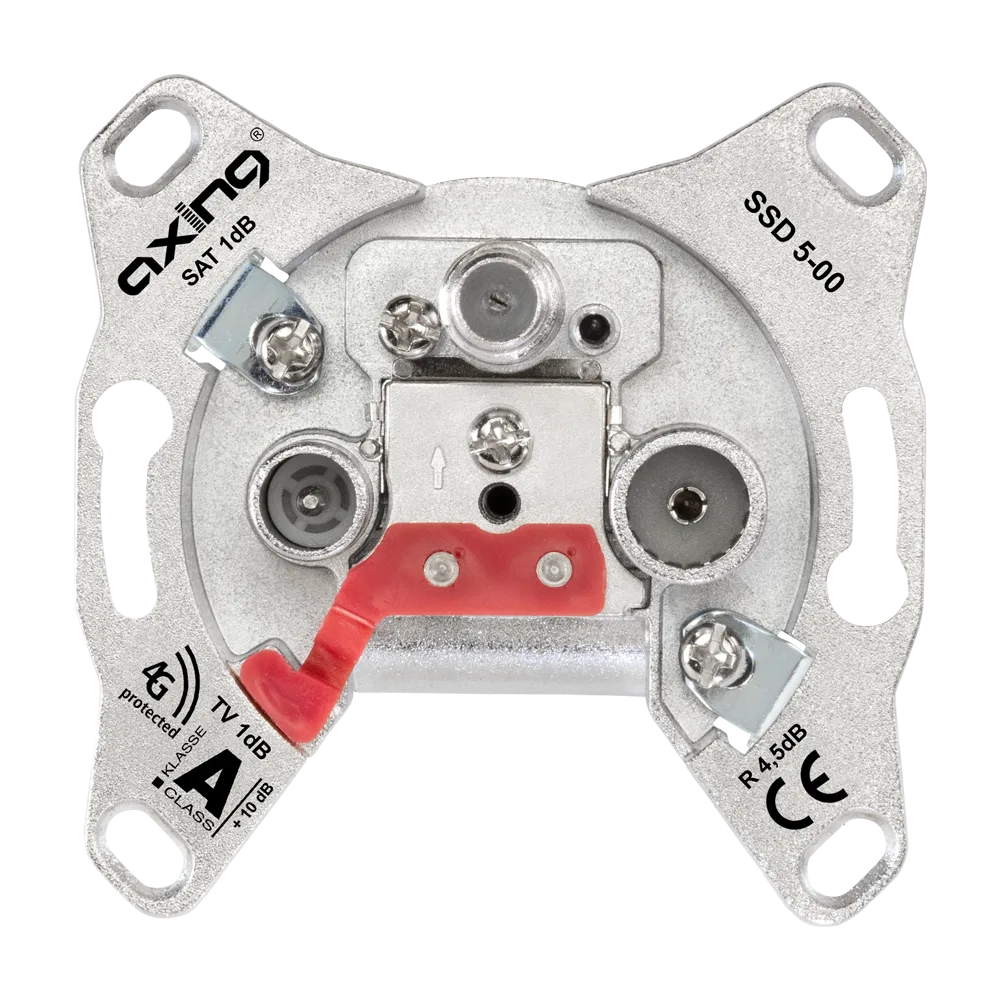

SAT-TV-FM outlet, terminated outlet
- CATV / SAT
- Suitable for return channel 5 ... 65 Mhz
- Extended connector F female
- Vodafone listed
Terminated outlets are used to terminate stub lines coming from the tap/splitter (broadband network) or multiswitch/LNB (star structure).
Technical data
- 50083-2
- class A (+10 dB)
- Tap method
- filter circuit / directional coupler technology Trunk
- Frequency range, input
- 5 ... 2200 MHz
- Diameter inner conductor
- 0.63 ... 1.13 mm
- Outer diameter cable
- 4.7 ... 7.35 mm TV connection
- Connection type
- F female
- Frequency range
- 950 ... 2200 MHz
- Connection attenuation
- ≤1.5 dB
- DC power pass to trunk
- yes
- Dimensions (W x H x D)
- 68 x 68 x 39 mm
