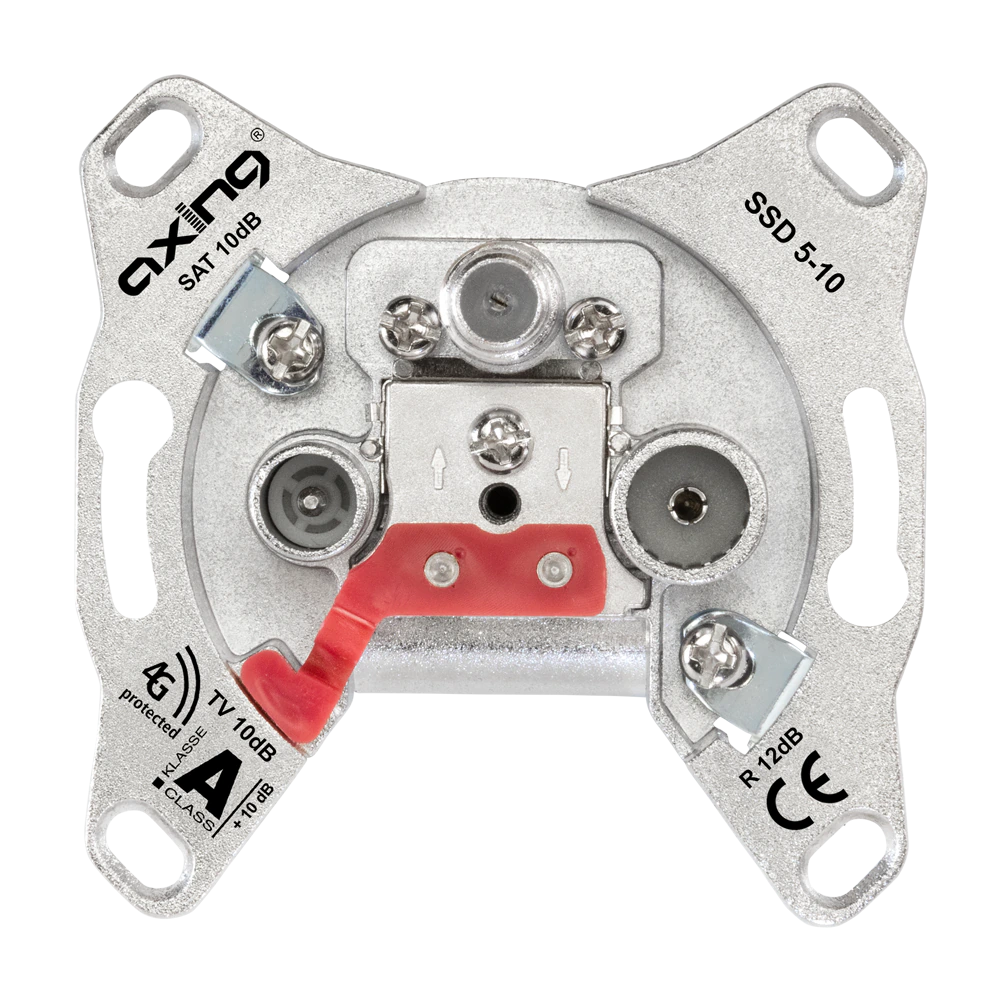

SAT-TV-FM outlet, loop through outlet

Name: SAT-TV-FM outlet, loop through outlet
Brand: JUNG
SKU: SSD5-10
Price: 40015 KZT
Availability: BackOrder

Retail Price

40,015 ₸

Made to order from Germany

Characteristics

SAT-TV-FM outlet, loop through outlet

CATV / SAT
Suitable for return channel 5 ... 65 Mhz
Suitable for Unicable I (EN 50494) and Unicable II (EN 50607)
Extended connector F female trunk or stub line must be terminated by terminating resistor, ref.-no. TZU 3-01.

Loop through outlets are used in tree networks. The last loop through socket installed in a

50083-2: class A (+10 dB)
Tap method: filter circuit / directional coupler technology Trunk
Frequency range, input: 5 ... 2200 MHz
Loop through attenuation (5 ... 862 MHz): ≤ 2 dB Loop through attenuation (862 ... 2200
MHz): ≤ 3 dB
Frequency range output: 5 ... 2200 MHz
DC power pass: yes
Diameter inner conductor: 0.63 ... 1.13 mm
Outer diameter cable: 4.7 ... 7.35 mm TV connection
Connection type: F female
Frequency range: 950 ... 2200 MHz
Connection attenuation: 10 dB ±1.5 dB
DC power pass to trunk: yes
Dimensions (W x H x D): 68 x 68 x 39 mm
