Matter push-button 2-gang, battery-powered
Retail Price
148,150 ₸
Made to order from Germany
Characteristics
- Article number
- MAT A 595 AL
- EAN/GTIN
- 4011377360358
- Colour
- aluminium
Description & specifications

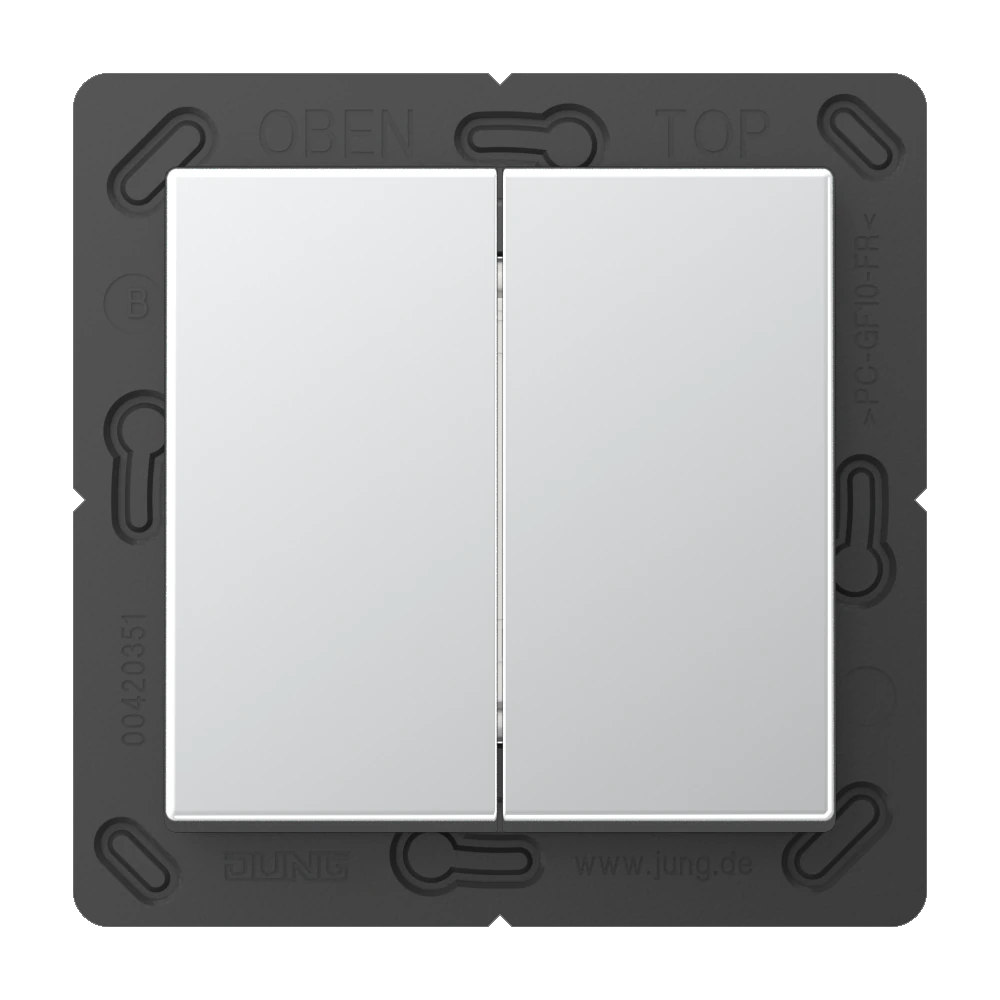

Matter push-button 2-gang, battery-powered including mounting plate, adhesive film and retaining screw
Intended use
Product characteristics
Samsung Smart Things
- Operating devices or triggering actions in a Matter-compatible smart home system in combination with a border router
- Wireless link to a border router that supports the Thread radio standard
- Mounting on flush box with dimensions according to DIN 49073, screw fixing on walls or adhesive fixing on smooth, even surfaces (glass)
- Matter certified
- Works with the Bluetooth® Low Energy wireless standard during commissioning
- Works with the Thread wireless standard during operation
- Integration into smart home systems that support Matter, e.g. Apple Home or
- Functionality depends on the smart home system
- Commissioning and parameterisation via the apps of the smart home system
- Can be updated using the apps of the smart home system
- Battery operation with one included lithium button cell jung.group/matter-note¶
¶ Tutorial operating instructions
Technical data
- Rated voltage
- DC 3 V
- Ambient temperature
- −5 ... +45 °C
- Storage temperature
- −5 ... +45 °C
- Degree of protection
- IP20
- Protection class
- III Matter
- Number of smart home systems
- max. 5 Communication protocol Matter Thread
- Radio frequency
- 2.402 ... 2.480 GHz
- Transmitting power
- typical 10 mW (class 1)
- Transmission range
- typical 10 m Communication protocol Bluetooth® Low Energy
- Battery type
- 1 x lithium CR 2430 Battery life approx. 3 years Thermoplastic (breakproof) lacquered
- Material
- thermoplastic lacquered Individual colour printing possible Individual laser engraving possible
Other Colors
2
Compatible Products
8Frames, rockers, sockets and covers that fit this article. Filter by colour, range or gang count.
Frames (1/2)
Logistics
Single Item
- Packaging unit
- 1 pc.
- Weight
- 0.042 KG
- Length
- 71 MM
- Height
- 35 MM
- Width
- 71 MM
Carton
- Packaging unit
- 1 pc.
- Weight
- 0.059 KG
- Length
- 82 MM
- Height
- 45 MM
- Width
- 82 MM
Outer Carton
- Packaging unit
- 10 pc.
- Weight
- 0.688 KG
- Length
- 235 MM
- Height
- 92 MM
- Width
- 175 MM
Certifications
BPIK_matterBPIK_threadBPIK_Works_with_samsung-smartthings
