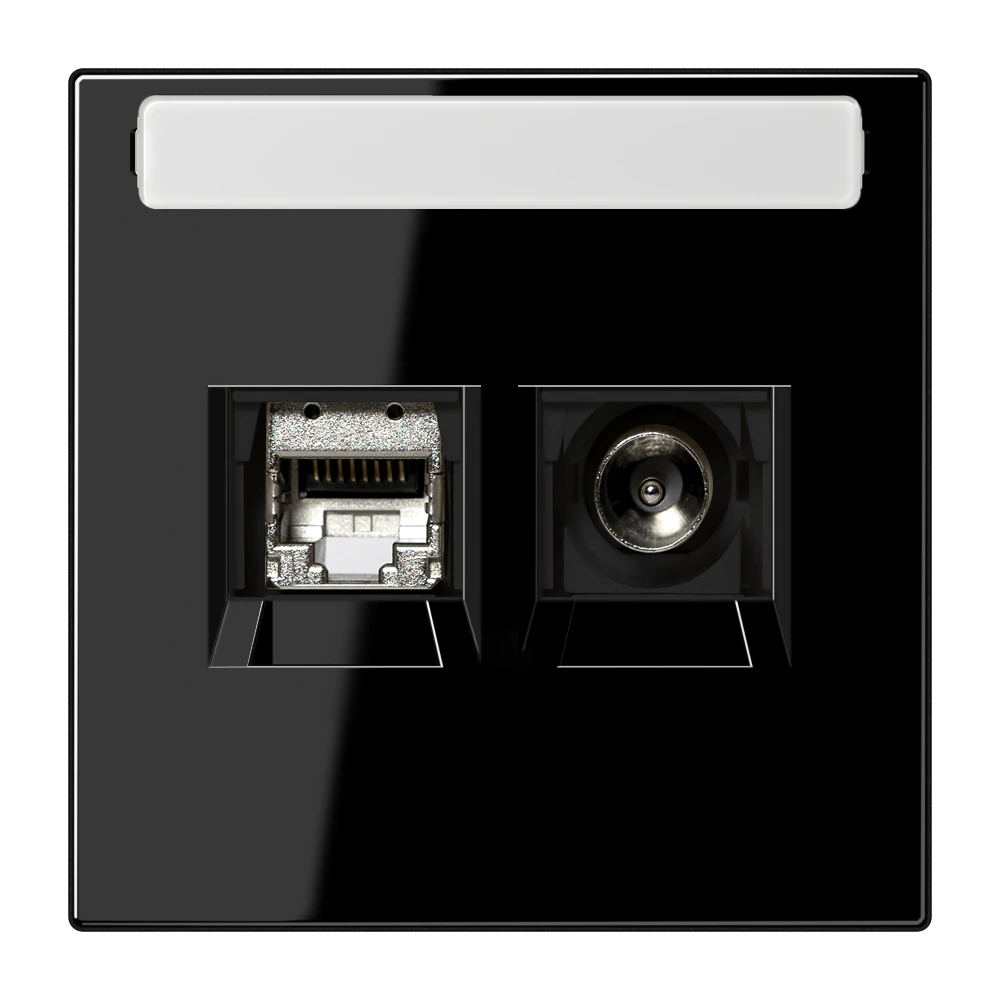

Smart TV socket
Retail Price
70,550 ₸
Made to order from Germany
Characteristics
- Article number
- MMD LS 4521 SW
- EAN/GTIN
- 4011377332621
- Colour
- black
Description & specifications
Smart TV socket (with supporting frame, screw fixing only) cover with snap-on fixing with inscription field 9 x 58 mm shutter with spring antenna cables Consider bending radius and various plug types. Ensure sufficient installation space.
Technical data
- External connection
- IEC male, IEC 60169-2
- Internal connection
- F female, IEC 60169-24
- Impedance
- 75 Ohm
- Frequency range
- 5 ... 2,400 MHz
- Attenuation
- 0.0 dB Installation depth not considering cables
- Universal modular jack socket
- 28 mm
- IEC plug module
- 30 mm Use right angle plug. Consider bending radius. Ensure sufficient installation space. Thermoplastic (breakproof) high-gloss
- Colour
- black
- Material
- thermoplastic Individual colour printing possible Individual laser engraving possible
Other Colors
1
Compatible Products
12Frames, rockers, sockets and covers that fit this article. Filter by colour, range or gang count.
Frames (1/10)
Series
Color
- Frame for horizontal and vertical installation · IP44
- Frame for horizontal and vertical installation · IP44
- Frame for horizontal and vertical installation
- Frame for horizontal and vertical installation
- Frame for horizontal and vertical installation · IP44
- Frame for horizontal and vertical installation · IP44
- Frame for horizontal and vertical installation
- Frame for horizontal and vertical installation · IP44
- Frame, 1-gang
Logistics
Single Item
- Packaging unit
- 1 pc.
- Weight
- 0.096 KG
- Length
- 85 MM
- Height
- 73 MM
- Width
- 85 MM
Carton
- Packaging unit
- 10 pc.
- Weight
- 1.086 KG
- Length
- 360 MM
- Height
- 90 MM
- Width
- 175 MM
