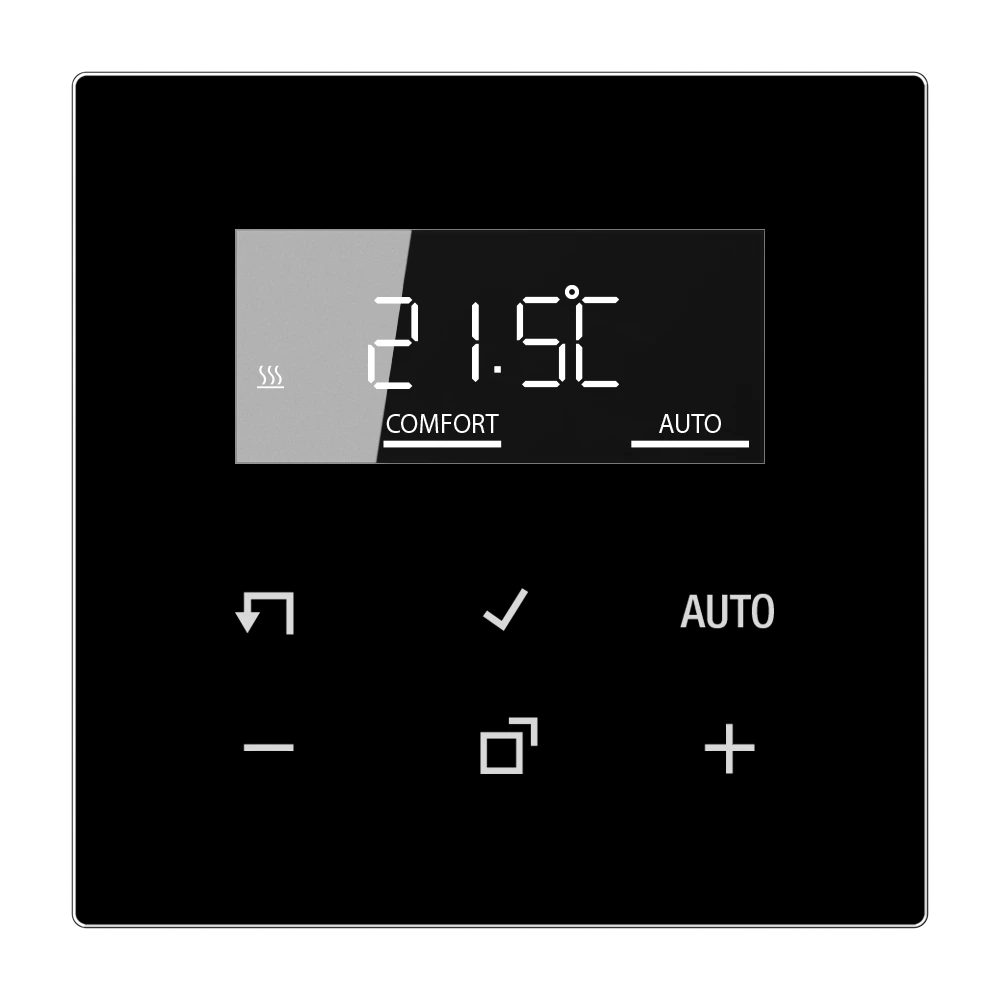

LB Management room thermostat set
Retail Price
280,445 ₸
Made to order from Germany
Characteristics
- Article number
- TR D LS 1790 SW
- EAN/GTIN
- 4011377172234
- Colour
- black
- Range
- LS range
- Material
- glass
Description & specifications
LB Management room thermostat set
Technical data
- Rated voltage
- AC 230 V ~
- Mains frequency
- 50/60 Hz
- Stand-by power depending on the cover
- approx. 0.1 ... 0.5 W
- Switching current 230 V AC1
- 10 mA ... 16 A
- Connected load
- max. 3,600 W Connection
- single wire
- 1 x 0.5 ... 4.0 mm² 2 x 0.5 ... 2.5 mm²
- stranded without ferrule
- 1 x 0.5 ... 4.0 mm²2 x 0.5 ... 2.5 mm²
- stranded with ferrule
- 1 x 0.5 ... 4.0 mm²2 x 0.5 ... 1.5 mm²
- Ambient temperature
- −5 ... +45 °C
- Accuracy per month
- ± 10 s
- Power reserve
- > 4 h
- Regulator class (EU 811/2013)
- nicht relevant
- Contribution to energy efficiency
- 2 %
- Colour
- black
- Range
- LS range
- Material
- glass
Other Colors
1
Compatible Products
10Frames, rockers, sockets and covers that fit this article. Filter by colour, range or gang count.
Accessories (7/10)
Color
Logistics
Single Item
- Packaging unit
- 1 pc.
- Weight
- 0.191 KG
- Length
- 85 MM
- Height
- 90 MM
- Width
- 85 MM
Carton
- Packaging unit
- 1 pc.
- Weight
- 0.191 KG
- Length
- 85 MM
- Height
- 90 MM
- Width
- 85 MM
