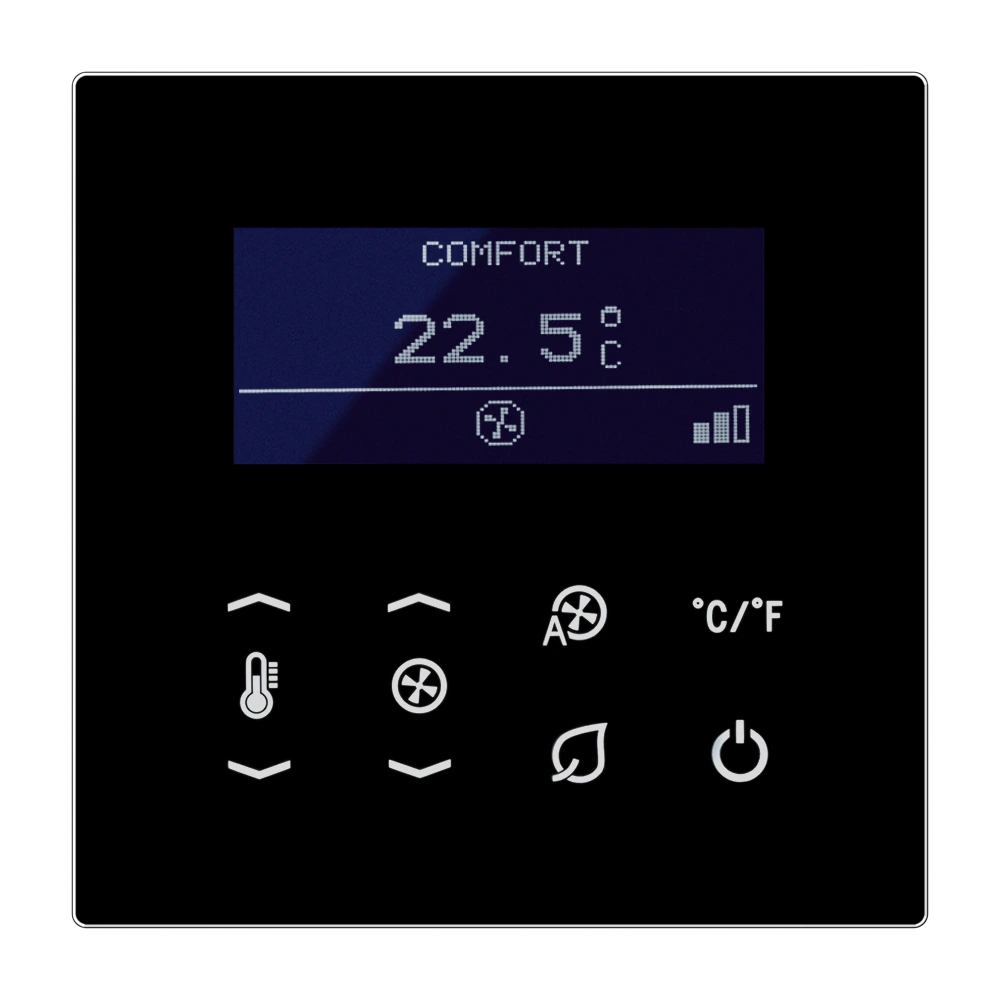

Temperature controller fan coil, 4-pipe
Retail Price
355,975 ₸
Made to order from Germany
Characteristics
- Article number
- TRD LS 923048 SW
- EAN/GTIN
- 4011377155985
- Colour
- black
- Material
- glass
Description & specifications
Temperature controller fan coil, 4-pipe
Intended use
Product characteristics
- Switching and operating electrical fan coil units with electrothermically actuated heating/cooling valves
- Measurement and feedback control of the room temperature
- Mounting on wall box with dimensions according to DIN 49073
- Depth of flush box (inner dimension): min. 40 mm
- Connection of one fan coil unit with up to 3 fan levels
- Heating and/or cooling mode
- Real glass front
- 8 capacitive sensor buttons
- Internal temperature sensor
- Room temperature controller function
- Preselection of the current energy level through the option of 5 temperature profiles for use in hotels or similar sites
- Display for indication of actual temperature (°C or °F), fan level, operating mode/ profile
- Menu levels blockable
- 1 status LED (red/green/blue)
- Display brightness and contrast adjustable
- Duration of the display illumination up to 120 seconds
- Satellite input for connection of key card holder
Technical data
- Rated voltage
- AC 110 ... 230 V ~
- Mains frequency
- 50/60 Hz Switching output
- Contact type
- semiconductor (triac),
- Output current
- max. 3 A Switching capacity
- Motors (230 V)
- 690 VA
- Motors (110 V)
- 300 VA Outputs for valve drives
- Switching current
- max. 250 mA
- Storage temperature
- −5 ... +45 °C
- Transport temperature
- −25 ... +70 °C
- Ambient temperature
- −5 ... +45 °C
- Relative humidity
- 5 ... 95 % (no condensation)
- Connection mode
- screw terminals
- single wire
- 1.5 mm²
- stranded with ferrule
- 1.5 mm²
- Colour
- 02.06.2026 1 of 2 black
- Material
- glass
Other Colors
1
Logistics
Single Item
- Packaging unit
- 1 pc.
- Weight
- 158 G
- Length
- 82 MM
- Height
- 90 MM
- Width
- 82 MM
Carton
- Packaging unit
- 1 pc.
- Weight
- 158 G
- Length
- 82 MM
- Height
- 90 MM
- Width
- 82 MM
