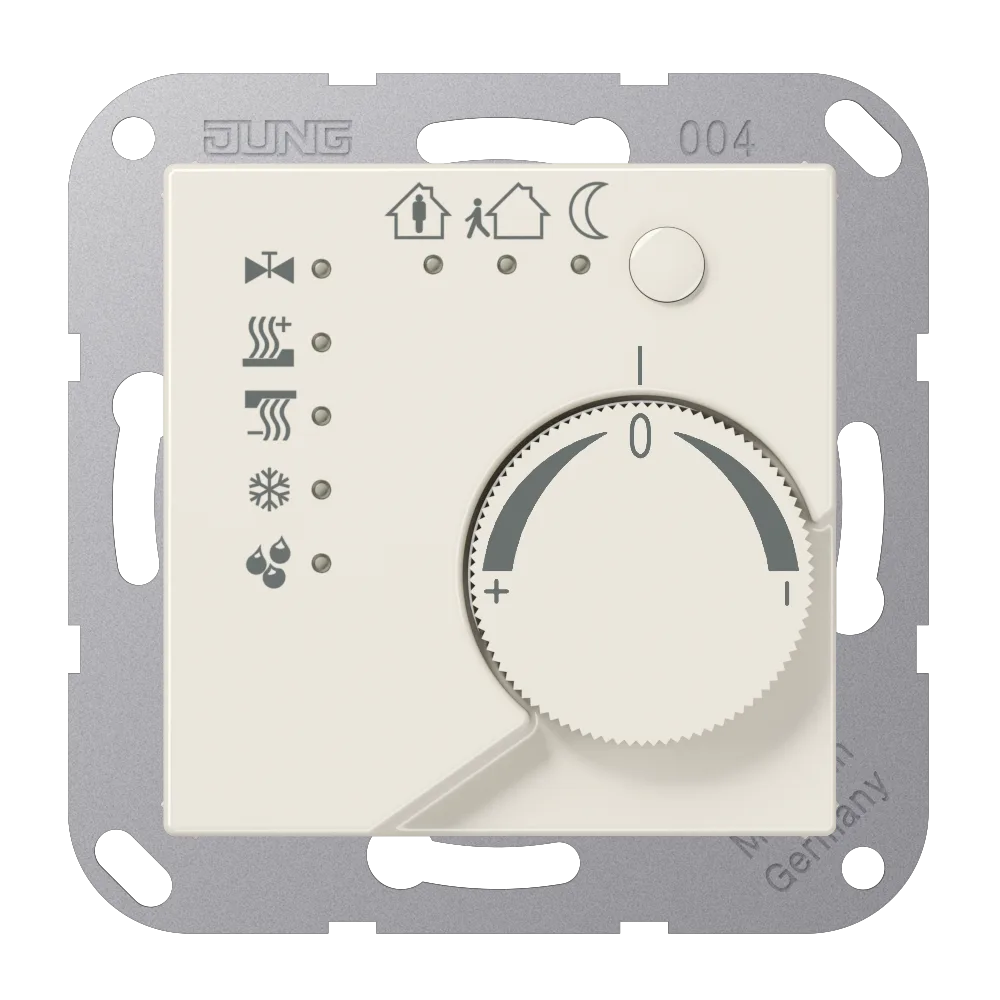

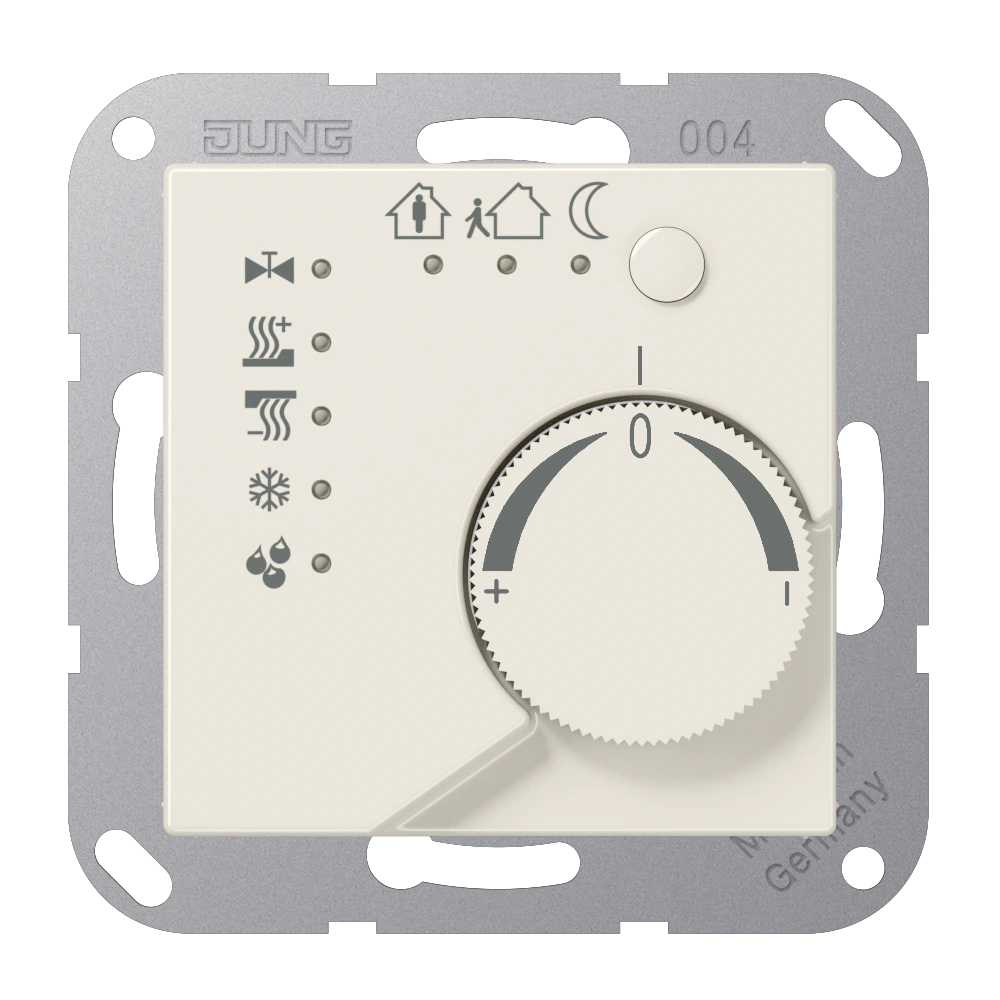

Room temperature controller with push-button interface 4-gang

KNX room temperature controller with integrated push-button interface 4-gang with rotary knob for setpoint adjustment Only with the ETS 3.0d version or later versions the full functionality will be available.

Intended use

Product characteristics

• Single-room temperature control in KNX installations
• Type of loads for binary output: LED or electronic relais
• Installation in flush box with dimensions according to DIN 49073
• Integrated bus coupling unit
• Measurement of room temperature and comparison with setpoint temperature
• Setpoint specification by selection of the operating mode
• Operating modes: comfort, standby, night operation, frost/heat protection
• Heating and cooling mode
• Heating and cooling with basic and additional step
• Setpoint adjustment
• Presence push-button
• Status LEDs
• Push-button interface with four inputs or two outputs (0.8 mA) and two inputs, e.g. for window contacts, push-buttons, LEDs, etc.
• Function of the inputs: switching, dimming, shutter control, light scene extension, brightness or temperature value transmitter
