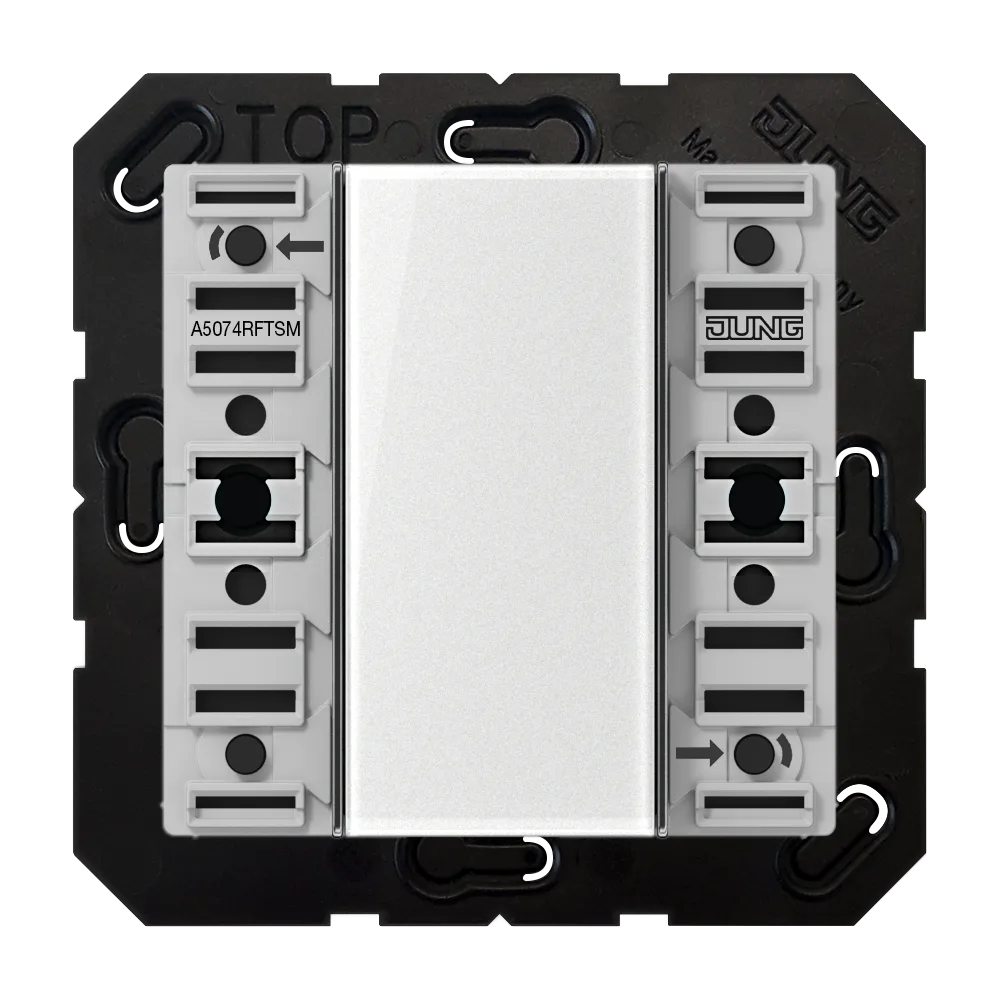

KNX RF radio transmitter module 4-gang
Retail Price
210,910 ₸
Made to order from Germany
Characteristics
- Article number
- A 5074 RF TSM
- EAN/GTIN
- 4011377149724
- xFach Modul
- 4-gang
Description & specifications
KNX RF radio transmitter module 4-gang including mounting plate, adhesive film and fastening screw
Intended use
Product characteristics
- Radio operation of loads, e.g. light on/off, dimming, Venetian blinds up/down, brightness values, calling up and saving light scenes
- Mounting on flush box with dimensions according to DIN 49073, screw fixing on walls or adhesive fixing on smooth, even surfaces (glass)
- Push-button functions switching, dimming, controlling blinds, value transmitter, calling up light scenes etc.
- Button pairs for push-button function or rocker function
- Status indication with LED
- Integrated temperature sensor
- Battery-powered device (battery compartment accessible from front)
- Project design and commissioning with ETS5 or a more recent version
A 50 NA MO, A 50 NA WWM, A 50 NA SWM, A 50 NA ANM
Technical data
- Rated voltage
- DC 3 V
- Battery type
- 1 x lithium CR 2450N (included)
- Ambient temperature
- −5 ... +45 °C
- Radio frequency
- 868.0 ... 868.6 MHz
- Transmitting power
- max. 20 mW
- Transmission range in free field
- typical 100 m
Compatible Products
23Frames, rockers, sockets and covers that fit this article. Filter by colour, range or gang count.
Inserts (1)
Cover plates (21)
A504TSA
Cover kit 4-gang, complete · for KNX bus modules
20,100 ₸
A504TSAAL
Cover kit 4-gang, complete · for KNX bus modules
30,170 ₸
A504TSAANM
Cover kit 4-gang, complete · for KNX bus modules
24,810 ₸
A504TSACH
Cover kit 4-gang, complete · for KNX bus modules
30,170 ₸
A504TSAMO
Cover kit 4-gang, complete · for KNX bus modules
30,170 ₸
A504TSASW
Cover kit 4-gang, complete · for KNX bus modules
24,810 ₸
A504TSASWM
Cover kit 4-gang, complete · for KNX bus modules
28,535 ₸
A504TSAWW
Cover kit 4-gang, complete · for KNX bus modules
20,100 ₸
A504TSAWWM
Cover kit 4-gang, complete · for KNX bus modules
28,535 ₸
A50NA
Transparent cover · for KNX bus modules
6,775 ₸
- Neutral cover · for KNX bus modules
- Neutral cover · for KNX bus modules
- Neutral cover · for KNX bus modules
- Neutral cover · for KNX bus modules
- Neutral cover · for KNX bus modules
- Neutral cover · for KNX bus modules
- Cover, suitable for backlighting · for KNX bus modules
- Neutral cover · for KNX bus modules
- Neutral cover · for KNX bus modules
- Neutral cover · for KNX bus modules
- KNX RF radio converter
Showing 10 of 21
Accessories (1)
Logistics
Single Item
- Packaging unit
- 1 pc.
- Weight
- 0.085 KG
- Length
- 82 MM
- Height
- 45 MM
- Width
- 82 MM
Carton
- Packaging unit
- 1 pc.
- Weight
- 0.085 KG
- Length
- 82 MM
- Height
- 45 MM
- Width
- 82 MM
