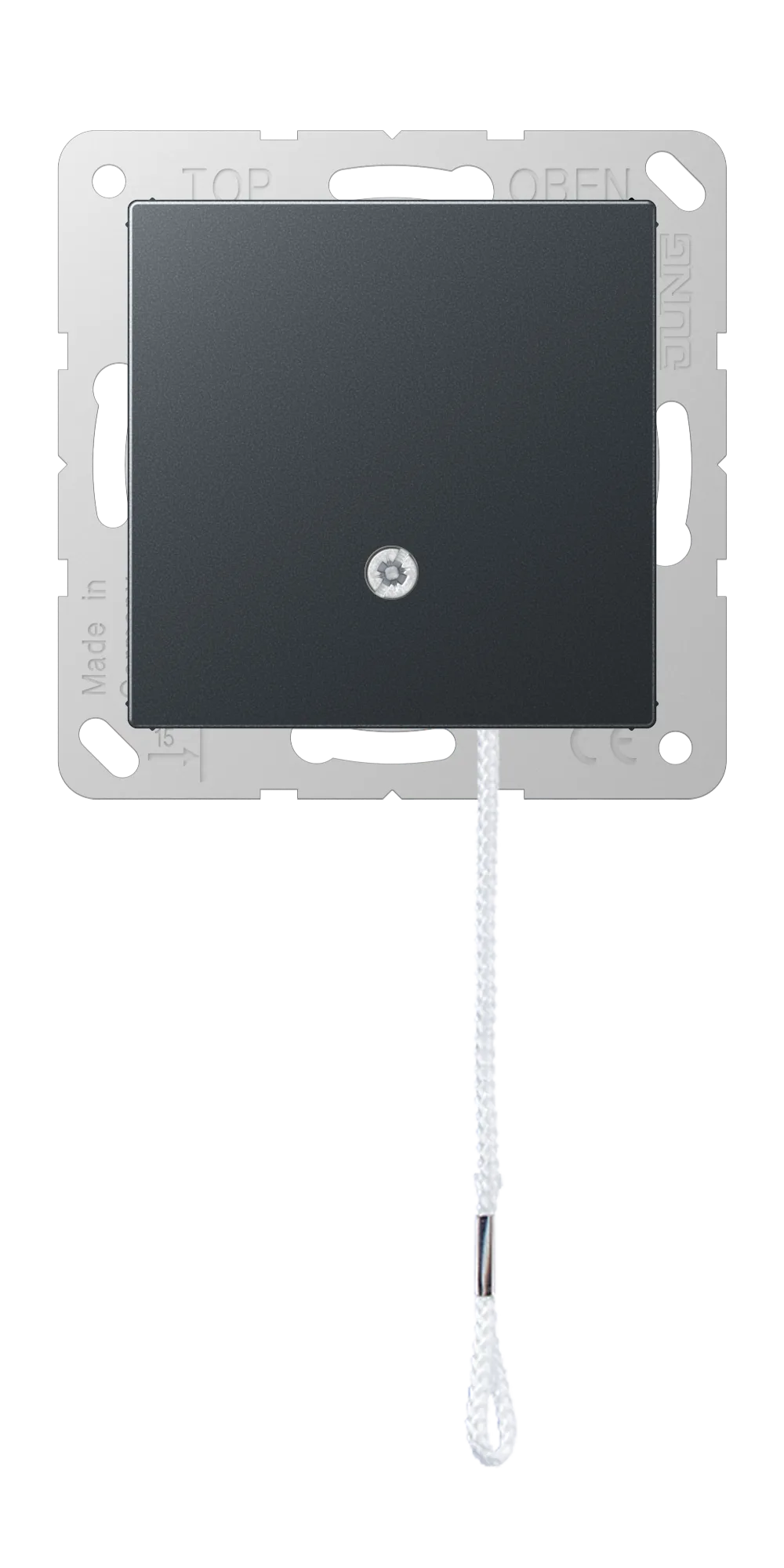

2-way pull cord switch
Retail Price
46,635 ₸
Made to order from Germany
Characteristics
- Article number
- A 506 BF NUZ ANM
- EAN/GTIN
- 4011377128118
- Colour
- matt anthracite
- Material
- thermoplastic lacquered
- Power SBL (self-ballasted lamps)
- max. 100 W
- Width
- 55 mm
- Height
- 55 mm
Description & specifications
2-way pull cord switch 10 AX / 250 V ~ for wall and ceiling installation with screw terminals for rigid and flexible wires up to 2.5 mm2 with 50 mm pull cord Plastic design cover made from 95% recycled material in accordance with DIN EN ISO 14021 - sustainable, conserves resources matt lacquered
Degree of protection IP44 is ensured with sealing gasket ref.-no. 551 WU and "IP44 frame" of the respective design range.
Individual colour printing possible
Technical data
- Colour
- matt anthracite
- Power SBL (self-ballasted lamps)
- max. 100 W
- Material
- thermoplastic lacquered
Other Colors
7
Compatible Products
12Frames, rockers, sockets and covers that fit this article. Filter by colour, range or gang count.
Logistics
Single Item
- Packaging unit
- 1 pc.
- Weight
- 0.093 KG
- Length
- 71 MM
- Height
- 45 MM
- Width
- 71 MM
Carton
- Packaging unit
- 10 pc.
- Weight
- 0.934 KG
- Length
- 290 MM
- Height
- 80 MM
- Width
- 175 MM
