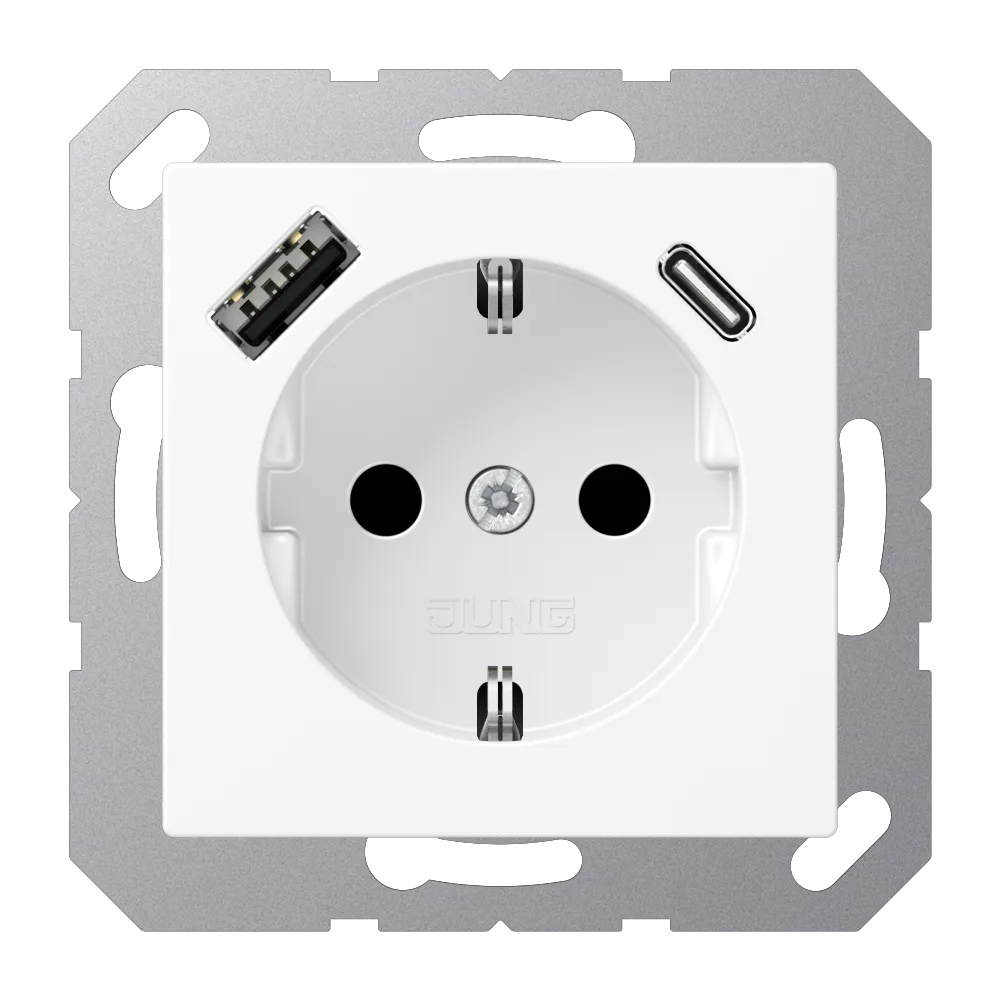

SCHUKO® socket with USB charger
Retail Price
120,850 ₸
Made to order from Germany
Characteristics
- Article number
- A 1520-15 CA WWM
- EAN/GTIN
- 4011377186316
- Colour
- matt snow white
- Material
- thermoplastic lacquered
- Type
- 1 x type A + 1 x type C
- Width
- 55 mm
- Height
- 55 mm
Description & specifications
SCHUKO® socket with USB charger with enhanced contact protection / shutter (Safety Plus) with 1 USB port type A and 1 USB port type C with screwless terminals for rigid and untreated flexible wires up to 2.5 mm2 Installation in flush box with dimensions according to DIN 49073
Technical data
- Rated voltage
- AC 220 ... 250 V ~
- Mains frequency
- 50/60 Hz
- Rated current
- 16 A
- Output voltage USB
- DC 5 V
- Output current USB (total)
- 3 A
- Stand-by power
- ≤ 25 mW
- Ambient temperature
- +5 ... +35 °C
- Storage/transport temperature
- −20 ... +70 °C
- Connection mode
- screwless terminals
- single wire
- 1.5 ... 2.5 mm²
- stranded without ferrule
- 1.5 ... 2.5 mm² matt lacquered
- Colour
- matt snow white
- Material
- thermoplastic lacquered Individual colour printing possible
